ATTACHMENTS (JIGS)

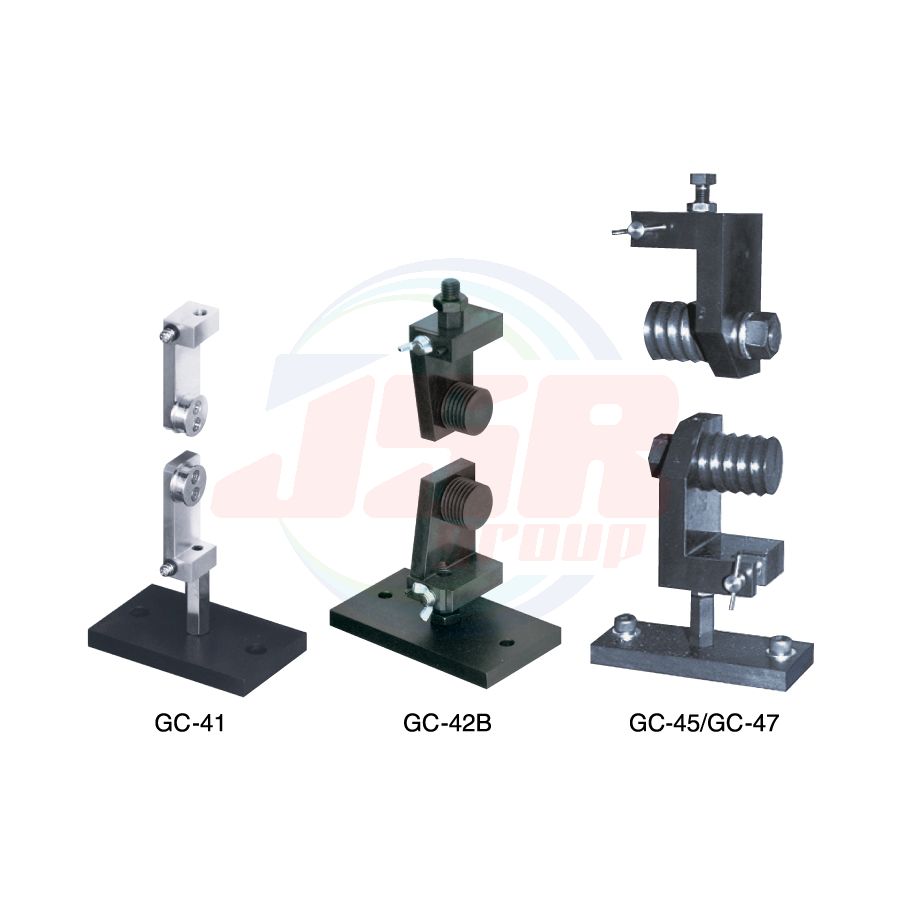

Wire winding grip
| Type | Max. Load | Wire diameter | Drum | Upper Weight |
|---|---|---|---|---|
| GC-41 | 50N | φ0.5mm | φ16mm | 27g |
| GC-42A | 500N | φ2mm | φ30mm | 580g |
| GC-42B | 2kN | |||
| GC-45 | 5kN | φ8mm | φ40mm | 3kg |
| GC-47 | 10kN |
• This is suitable for tensile testing of strings, electrical wire, or ropes.
• It hold the samples by the frictional force to the drum, avoiding the samples to be cut at the edge of the attachment.
• It hold the samples by the frictional force to the drum, avoiding the samples to be cut at the edge of the attachment.
Dimension
| แบรนด์สินค้า | IMADA SEISAKUSHO |
|---|---|
| Order No. | GC-WWG |
