GDCS-20WG (007527) | DIGITAL WELDING GAUGE | SK NIIGATASEIKI

DIGITAL WELDING GAUGE

Bluetooth BOX (separately sold) can be attached.
Essential for welding process.

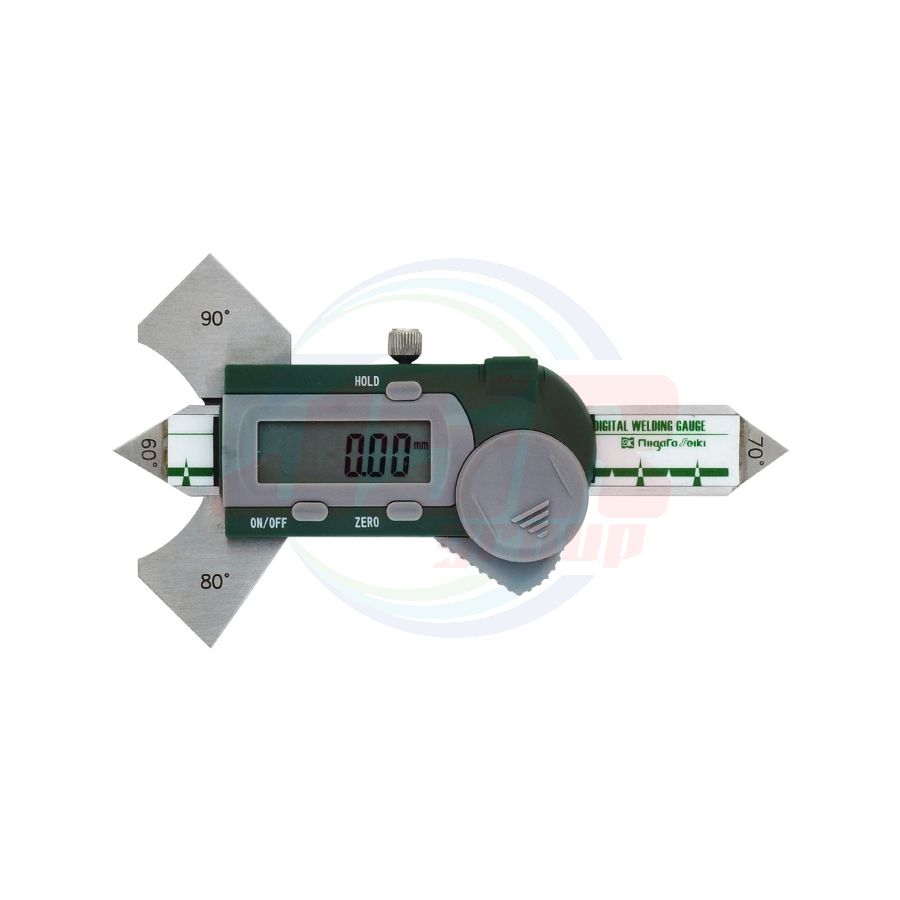

Digital welding gauge specialized for measuring fillet weld and bead weld height.

USE
● For measuring the size of fillet weld and bead weld
MATERIAL
●Stainless steel
FEATURES
●Bluetooth BOX (separately sold) can be attached
●Easy to read with digital display

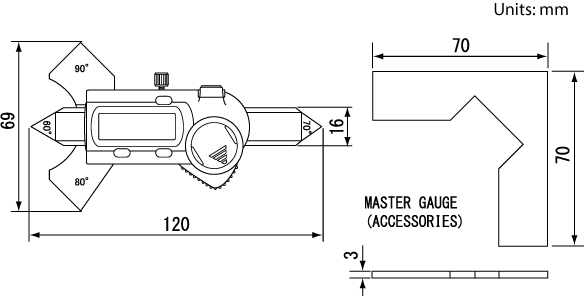

●Master gauge included
●Hold function
●Auto power off function (after approx. 20 min)
●With a plastic case
SPECIFICATIONS

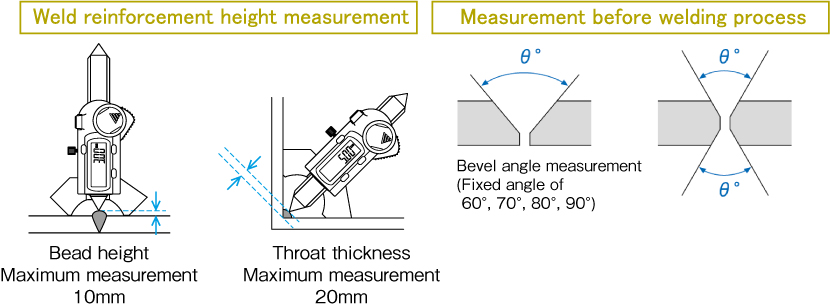

●Throat thickness: 20mm
●Bead height: 10mm
●Bevel angle: 60°, 70°, 80°, 90°（ Accuracy： ±2°）
POWER
● One CR2032（ lithium） battery included for testing
