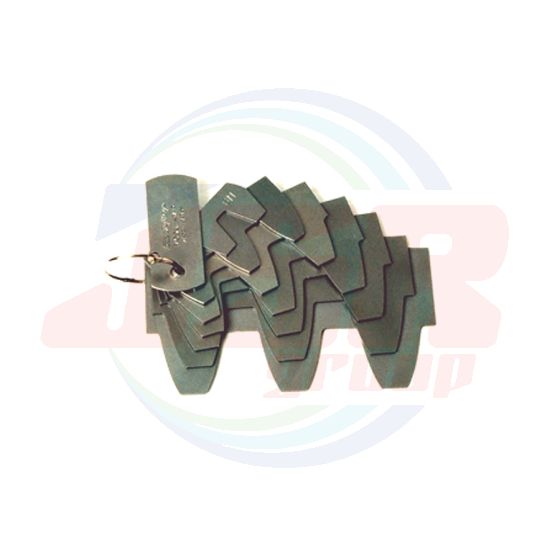

GEAR TOOTH GAUGES | FUJI TOOL
ราคาต่ำสุด
THB 0.00
ราคารวม VAT แล้ว
พร้อมส่ง
SKU
FUJ-GEAR TOOTH
QTY:
0
Features
With this involutes gear tooth gauge, it is easy to determine diametral pitch and module pitch (metric).
S model and L model are for the use of small and large pitch respectively.
The pressure angle of these gauges are 14¹/2° and 20°
Material : SPCC
Module Pitch (mm)
| Order No. | Model No. | P. Angle | Leaves | Accuracy | Size Composition / Contrnts |
| 03-205 | MP-S14 | 14¹/2° | 13 | ±0.05mm | 0.5 0.75 1.0 1.25 1.5 1.75 2.0 2.25 2.5 2.75 3.0 3.25 3.5 3.75 4.0 4.5 5.0 |
| 03-206 | MP-S20 | 20° | 0.5 0.75 1.0 1.25 1.5 1.75 2.0 2.25 2.5 2.75 3.0 3.25 3.5 3.75 4.0 4.5 5.0 |
||
| 03-207 | MP-L14 | 14¹/2° | 7 | ±0.1mm | 6.0 7.0 8.0 9.0 10.0 11.0 12.0 |
| 03-208 | MP-L20 | 20° | 6.0 7.0 8.0 9.0 10.0 11.0 12.0 |
Diametral Pitch (inch)
| Order No. | Model No. | P. Angle | Leaves | Accuracy | Size Composition / Contrnts |
| 03-201 | DP-S14 | 14¹/2° | 13 | ±0.05mm | 6 7 8 9 10 11 12 14 16 18 20 22 24 26 28 30 32 36 40 48 64 80 |
| 03-202 | DP-S20 | 20° | 6 7 8 9 10 11 12 14 16 18 | ||
| 03-203 | DP-L14 | 14¹/2° | 7 | ±0.1mm | 2 2 1/2 3 3 1/2 4 4 1/2 5 |
| 03-204 | DP-L20 | 20° | 2 2 1/2 3 3 1/2 4 4 1/2 5 |
| แบรนด์สินค้า | FUJI TOOL |
|---|
