GH-1 | Dial Hole Gauge | MITUTOYO
THB 0.00
THB 0.00
พร้อมส่ง
SKU
GH-1

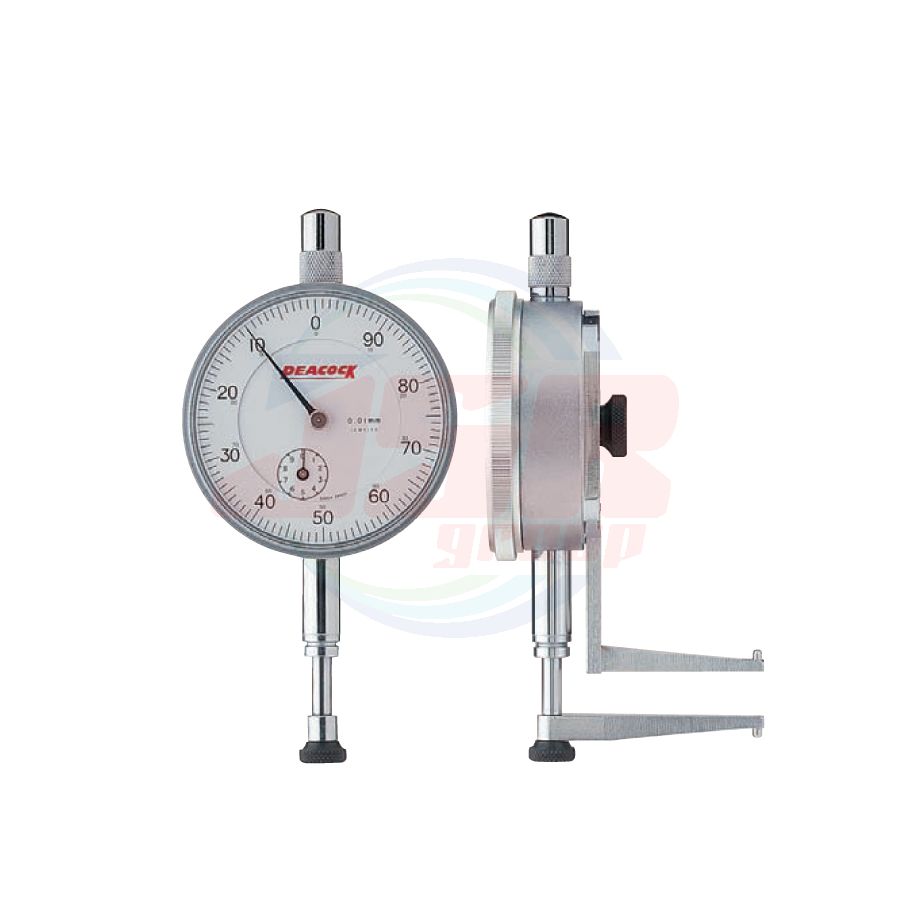

Dial Hole Gauge
The Dial Hole Gauge is used for measurement of a bore diameter or groove width.
● Adjustable upper frame may be changed as desired, thus securing a wide measuring range.
● The contact point has an outer dia of 2 mm and a height of 2 mm.
(R 1mm ball, M1.7 x 0.35mm.)
| Order No. | Dial Gauge | Measurable bore ID (mm) |
Measurable depth less than (mm) |
||||
| Graduation (mm) | Range (mm) |
Accuracy(μm) | Reading | Measuring force less than (N) |
|||
| GH-1 | 0.01 | 10 | ±20 | ±100-50-0 | 1.4 | 10～50 | 25 |
| แบรนด์สินค้า | PEACOCK |
|---|---|
| Order No. | GH-1 |
| Graduation | 0.01mm |
| Range | 10mm |
