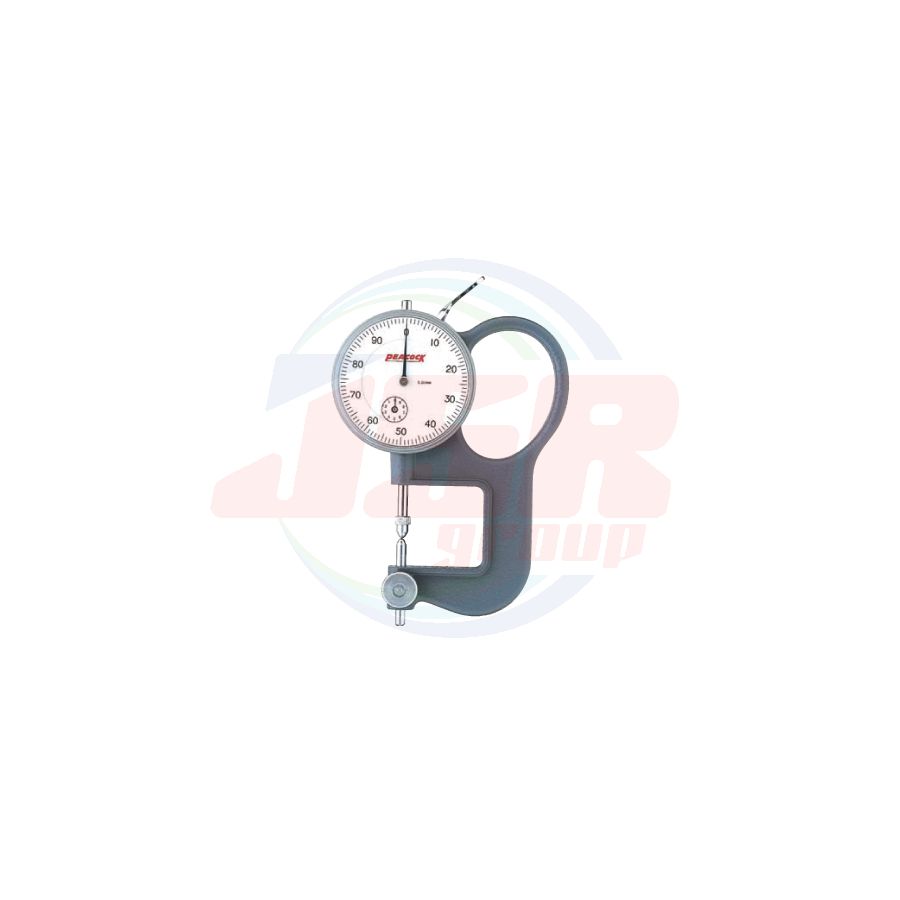

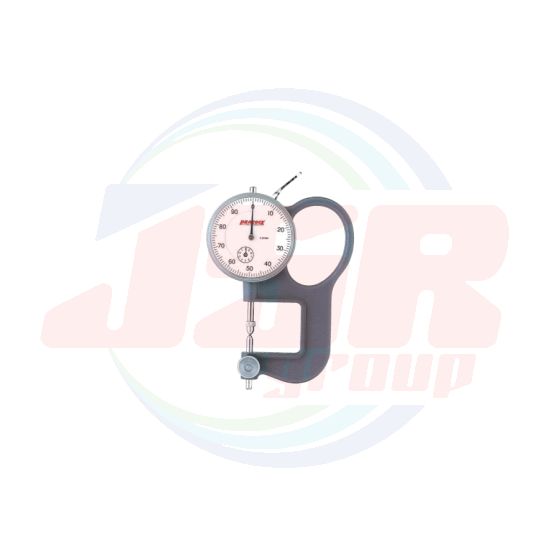

Dial Lens Gauge
The dial lens gauge can measure convex, concave, convexo-concave and any other lenses in the same gauge by replacing the two contact points and the anvil.
Specifications
| Order No. | Graduation (mm) |
Range (mm) |
Accuracy (μm) |
Throat depth (mm) |
maximum lens diameter measurable (mm) |
maximum lens thickness measurable (mm) |
Measuring force less than (N) |
| GL | 0.01 | 10 | ±20 | 30 | φ59 | ※ 20 | 1.8 |
※ Anvil side is adjustable.
| แบรนด์สินค้า | PEACOCK |
|---|---|
| Order No. | GL |
| Graduation | 0.01mm |
| Range | 10mm |
