GMD-1J | External Digital Caliper Gaugee | TECLOCK
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
GMD-1J
QTY:
10

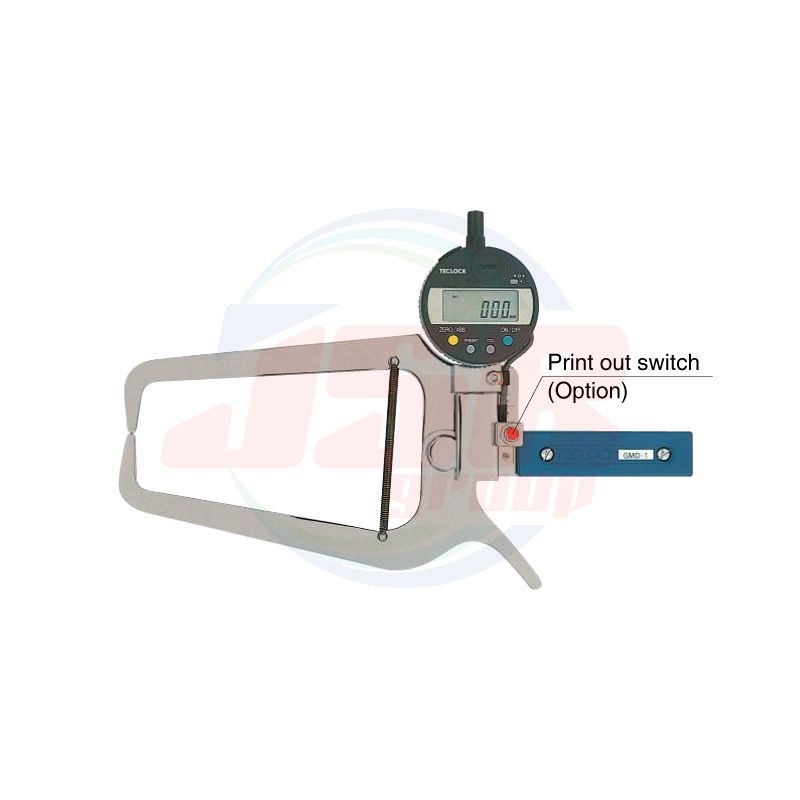

External Digital Caliper Gauge
• External dimension measuring instrument of which digital gauge is built into frame.
| Order No. | Graduation (mm) |
Measuring Range(mm) |
Indication Error(μm) |
Maximum Measuring Depth(mm) | Measuring Force(N) |
Weight (g) |
| GMD-1J | 0.1 | 0-80 | ±0.2 | 120 | 5 or less | 560 |
| GMD-2J | 0.1 | 0-80 | ±0.2 | 240 | 5 or less | 830 |
| GMD-8J | 0.1 | 0-80 | ±0.2 | 400 | 5 or less | 580 |
Usage Example
External Caliper Gauge
|
Thickness of long distance position of board shape workpiece can be measured. |
Thickness measurement in narrow area. (GM-9,GM-11) |
It can measure evading obstacles in front of measuring point. (GM-8,GMD-8J) |
 |
 |
 |
| แบรนด์สินค้า | TECLOCK |
|---|---|
| Order No. | GMD-1J |
| Order No. | H1 | H2 | H3 | H4 |
| GMD-1J | 25 | 40 | 25 | 40 |
| GMD-2J | 50 | 60 | 50 | 60 |
