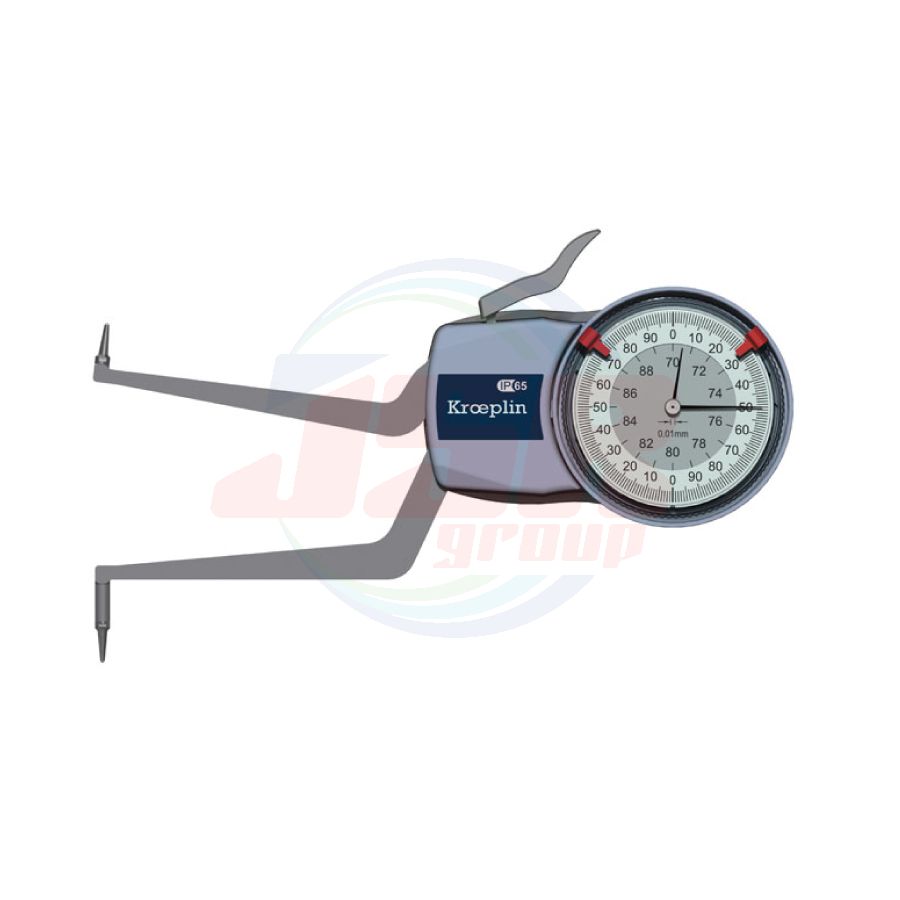

H270 | Internal measurement - Application range up to 120 mm | KROEPLIN
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
H270
QTY:
2
Internal measurement
Application range up to 120 mm
| Order No. | Measuring span Mes | Measuring range Meb | Range of indication Azb | Numerical interval Zw Scale interval Skw |
Permissible errors G | Repeatability limit r | Measuring force Fmin | Measuring force Fmax | Weight | Protection class | Measuring contact movable Hb |
Measuring contact fixed Hf |
Type of measuring contact |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | (N) | (g) | (mm) | (mm) | (mm) | ||
| L250 | 20 | 50-70 | 49.5-70.5 | 0.01 | 0.03 | 0.01 | 1.1 | 1.6 | 285 | IP67 | 8.5 | 8.5 | Ball Ø 1 |
| H250 | 20 | 50-70 | 49.5-70.5 | 0.01 | 0.03 | 0.01 | 1.1 | 1.6 | 195 | IP65 | 8.5 | 8.5 | Ball Ø 1 |
| L260 | 20 | 60-80 | 59.5-80.5 | 0.01 | 0.03 | 0.01 | 1.1 | 1.6 | 290 | IP67 | 8.5 | 8.5 | Ball Ø 1 |
| H260 | 20 | 60-80 | 59.5-80.5 | 0.01 | 0.03 | 0.01 | 1.1 | 1.6 | 200 | IP65 | 8.5 | 8.5 | Ball Ø 1 |
| L270 | 20 | 70-90 | 69.5-90.5 | 0.01 | 0.03 | 0.01 | 1.1 | 1.6 | 290 | IP67 | 8.5 | 8.5 | Ball Ø 1 |
| H270 | 20 | 70-90 | 69.5-90.5 | 0.01 | 0.03 | 0.01 | 1.1 | 1.6 | 200 | IP65 | 8.5 | 8.5 | Ball Ø 1 |
| L280 | 20 | 80-100 | 79.5-100.5 | 0.01 | 0.03 | 0.01 | 1.1 | 1.6 | 290 | IP67 | 8.5 | 8/.5 | Ball Ø 1 |
| H280 | 20 | 80-100 | 79.5-100.5 | 0.01 | 0.03 | 0.01 | 1.1 | 1.6 | 200 | IP65 | 8.5 | 8.5 | Ball Ø 1 |
| L350 | 30 | 50-80 | 49.5-80.5 | 0.01 | 0.04 | 0.02 | 1.2 | 1.7 | 370 | IP67 | 8.5 | 8.5 | Ball Ø 2 |
| L370 | 30 | 70-100 | 69.5-100.5 | 0.01 | 0.04 | 0.02 | 1.2 | 1.7 | 375 | IP67 | 8.5 | 8.5 | Ball Ø 2 |
| L390 | 30 | 90-120 | 89.5-120.5 | 0.01 | 0.04 | 0.02 | 1.2 | 1.7 | 380 | IP67 | 8.5 | 8.5 | Ball Ø 2 |
| L415 | 50 | 15-65 | 14.85-65.5 | 0.01 | 0.05 | 0.03 | 1.0 | 1.8 | 415 | IP67 | 6.0 | 6.0 | Ball Ø 1.5 |
| H415 | 50 | 15-65 | 14.8-65.5 | 0.05 | 0.05 | 0.025 | 0.9 | 1.9 | 355 | IP65 | 6.0 | 6.0 | Ball Ø 1.5 |
| L440 | 50 | 40-90 | 39.5-90.5 | 0.01 | 0.05 | 0.03 | 1.0 | 1.8 | 420 | IP67 | 8.5 | 8.5 | Ball Ø 2 |
| H440 | 50 | 40-90 | 39.5-90.5 | 0.05 | 0.05 | 0.025 | 0.9 | 1.9 | 370 | IP65 | 8.5 | 8.5 | Ball Ø 2 |
| L470 | 50 | 70-120 | 69.5-120.5 | 0.01 | 0.05 | 0.03 | 1.0 | 1.8 | 420 | IP67 | 8.5 | 8.5 | Ball Ø 2 |
| H470 | 50 | 70-120 | 69.5-120.5 | 0.05 | 0.05 | 0.025 | 0.9 | 1.9 | 370 | IP65 | 8.5 | 8.5 | Ball Ø 2 |
| แบรนด์สินค้า | KROEPLIN |
|---|---|
| Order No. | H270 |
| Application range | up to 120 mm |
| Measuring span Mes | 20mm |
| Measuring range Meb | 70-90 mm |
| Range of indication Azb | 69.5-90.5 mm |
| Numerical interval Zw / Scale interval Skw | 0.01 mm |
| Permissible errors G | 0.03 mm |
| Repeatability limit r | 0.01 mm |
| Measuring force F min | 1.1 N |
| Measuring force F max | 1.6 N |
| Protection class | IP65 |
| Measuring contact movable Hb | 8.5 mm |
| Measuring contact fixed Hf | 8.5 mm |
| Type of measuring contact | Ball Ø 1 |
| Measuring contacts | Measuring capacity | ||||
 |
 |
 |
|||
| Ball Ø 1.0 mm Ball Ø 1.5 mm |
Ball Ø 1.0 mm Ball Ø 2.0 mm |
Meb Measuring range A Groove depth B Groove width Hb Measuring contact movable Hf Measuring contact fixed L Measuring depth |
|||
| Order No. | Groove depth A max. | Groove width B min. | Measuring depth L max. | Picture | Electronic E Mechanical M |
| (mm) | (mm) | (mm) | |||
| L250 | 8.3 | 1.5 | 85 | [5] | E |
| H250 | 8.3 | 1.5 | 85 | [5] | M |
| L260 | 8.3 | 1.5 | 85 | [5] | E |
| H260 | 8.3 | 1.5 | 85 | [5] | M |
| L270 | 8.3 | 1.5 | 85 | [5] | E |
| H270 | 8.3 | 1.5 | 85 | [5] | M |
| L280 | 8.3 | 1.5 | 85 | [5] | E |
| H280 | 8.3 | 1.5 | 85 | [5] | M |
| L350 | 8.3 | 2.5 | 132 | [5] | E |
| L370 | 8.3 | 2.5 | 132 | [5] | E |
| L390 | 8.3 | 2.5 | 132 | [5] | E |
| L415 | 5.5 | 2.0 | 188 | [3] | E |
| H415 | 5.5 | 2.0 | 188 | [3] | M |
| L440 | 8.3 | 2.5 | 192 | [5] | E |
| H440 | 8.3 | 2.5 | 192 | [5] | M |
| L470 | 8.3 | 2.5 | 192 | [5] | E |
| H470 | 8.3 | 2.5 | 192 | [5] | M |
