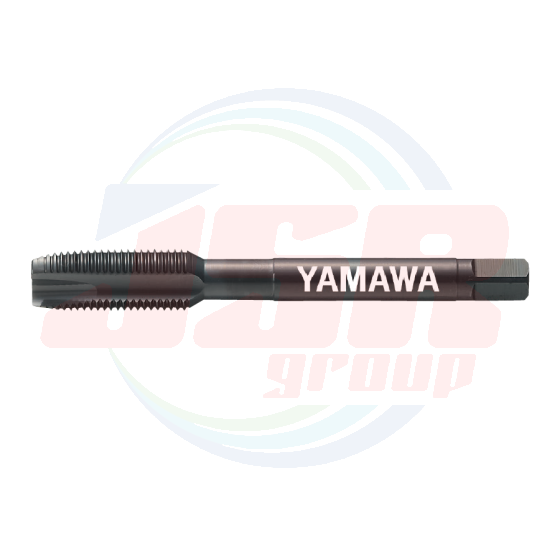

HC-PO (Metric Threads) | Oxidized Spiral Pointed Taps for High Carbon Steels | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 235.40
พร้อมส่ง
SKU
HC-PO
Product Features
- The HC+PO/HC-PO is a spiral pointed tap suitable for the tapping medium and high hardness workpiece materials up to 35 HRC in high carbon steel such as S55C.
・Product Name and Size.
| HC＋PO | 〜M2.6 |
| HC-PO | M3〜 |
Product system chart (tensile strength)
Specification
Tapping Speeds depending on Materials
25～35HRC
Segment：1E
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P2 |
PCMQ3.0G |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
3 |
|
M4×0.7 |
P2 |
PCMQ4.0I |
5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
3 |
|
M5×0.8 |
P2 |
PCMQ5.0K |
5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
M6×1 |
P2 |
PCMQ6.0M |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
M8×1.25 |
P3 |
PCMR8.0N |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
M10×1.5 |
P3 |
PCMR010O |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
M10×1.25 |
P3 |
PCMR010N |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
M12×1.75 |
P4 |
PCMS012P |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
M12×1.5 |
P3 |
PCMR012O |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
M12×1.25 |
P4 |
PCMS012N |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
M14×2 |
P4 |
PCMS014Q |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
M14×1.5 |
P3 |
PCMR014O |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
M16×2 |
P4 |
PCMS016Q |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
M16×1.5 |
P3 |
PCMR016O |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
M18×2.5 |
P4 |
PCMS018R |
5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
3 |
4 |
|
M18×1.5 |
P4 |
PCMS018O |
5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
3 |
4 |
|
M20×2.5 |
P4 |
PCMS020R |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
5 |
|
M20×1.5 |
P4 |
PCMS020O |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
5 |
|
M22×2.5 |
P4 |
PCMS022R |
5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
3 |
5 |
|
M24×3 |
P4 |
PCMS024S |
5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
3 |
5 |
| แบรนด์สินค้า | YAMAWA |
|---|
