HC-PO-OX (Unified Threads)
Product Features
- The HC-PO OX is a spiral pointed tap suitable for tapping high carbon steel such as S55C.
Specification
Tapping Speeds depending on Materials
25～35HRC
Segment：1E
|

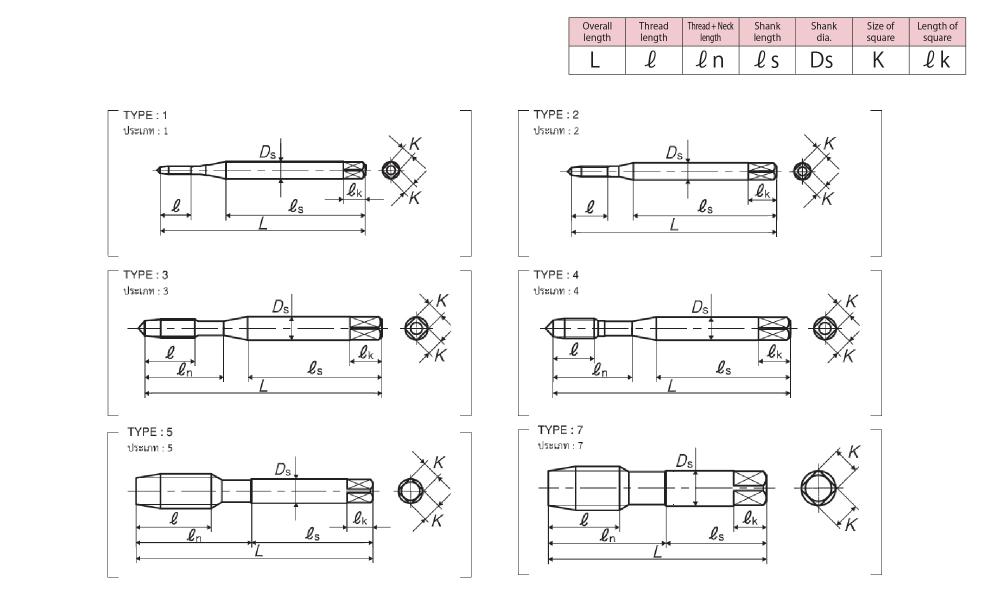

Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Unified Threads |
||||||||||||
|
No.0-80UNF |
P1 |
PCMPUN0BX |
5P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
2 |
2 |
|
No.1-64UNC |
P1 |
- |
5P |
42 |
7.2 |
- |
27 |
3 |
2.5 |
5 |
2 |
2 |
|
No.1-12UNF |
P4 |
- |
||||||||||
|
No.1-72UNF |
P1 |
- |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
3 |
|
No.2-56UNC |
P1 |
PCMPUN2EX |
5P |
42 |
8.1 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
|
No.2-64UNF |
P1 |
- |
5P |
42 |
8.1 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
|
No.3-48UNC |
P1 |
- |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
|
No.3-56UNF |
P1 |
- |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
|
No.4-40UNC |
P2 |
PCMQUN4HX |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
3 |
|
No.4-48UNF |
P1 |
- |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
3 |
|
No.5-44UNF |
P1 |
- |
5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
3 |
|
No.6-32UNC |
P2 |
PCMQUN6JX |
5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
3 |
|
No.6-40UNF |
P2 |
- |
5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
3 |
|
No.8-32UNC |
P2 |
PCMQUN8JX |
5P |
60 |
13 |
21 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
No.8-36UNF |
P2 |
- |
5P |
60 |
13 |
21 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
No.10-24UNC |
P2 |
PCMQUNAMX |
5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
No.12-24UNC |
P2 |
- |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
No.12-28UNF |
P2 |
- |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
1/4-20UNC |
P2 |
PCMQU04NX |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
1/4-28UNF |
P2 |
PCMQU04KX |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
5/16-24UNF |
P2 |
- |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
5 |
|
3/8-24UNF |
P2 |
- |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
5 |
|
7/16-20UNF |
P3 |
- |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
5 |
|
1/2-13UNC |
P3 |
PCMRU08RX |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
5 |
|
1/2-20UNF |
P3 |
- |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
5 |
|
3/16-32UNF |
P2 |
- |
||||||||||
|
5/8-11UNC |
P2 |
PCRU10UX |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
5 |
|
5/8-18UNF |
P3 |
- |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
5 |
|
3/4-10UNC |
P4 |
PCMSU12VX |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
7 |
|
3/4-16UNF |
P3 |
- |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
7 |
|
7/8-14UNF |
P3 |
- |
5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
3 |
7 |
| แบรนด์สินค้า | YAMAWA |
|---|
