HC+PO1.4X0.3 (PCPP1.4C) | Spiral Pointed Taps for High Carbon Steels | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 500.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
PCPP1.4C
QTY:
10
Product Features

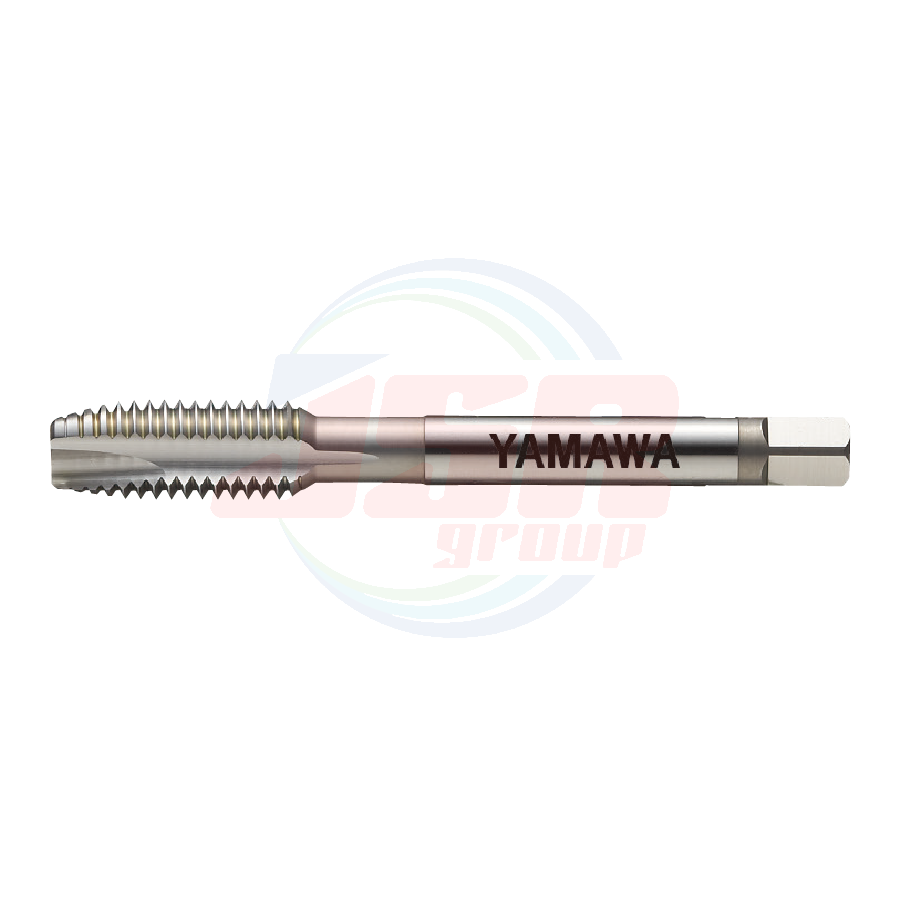

- The HC+PO/HC-PO is a spiral pointed tap suitable for the tapping medium and high hardness workpiece materials up to 35 HRC in high carbon steel such as S55C.
・Product Name and Size.
| HC＋PO | 〜M2.6 |
| HC-PO | M3〜 |
Product system chart (tensile strength)
Specification
Tapping Speeds depending on Materials
25～35HRC
Segment：1E
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M1.4×0.3 |
P1 |
PCPP1.4C |
5P |
36 |
5.4 |
- |
24 |
3 |
2.5 |
5 |
2 |
1 |
|
M1.6×0.35 |
P2 |
PCPQ1.6D |
5P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
2 |
2 |
|
M1.7×0.35 |
P2 |
PCPQ1.7D |
5P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
2 |
2 |
|
M2×0.4 |
P2 |
PCPQ2.0E |
5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
2 |
3 |
|
M2.5×0.45 |
P2 |
PCPQ2.5F |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
3 |
|
M2.6×0.45 |
P2 |
PCPQ2.6F |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | M1.4x0.3 (PCPP1.4C) |
| Model | HC+PO/ HC-PO |
| Size | M1.4X0.3 |
| Class | P1 |
| Chamfer | 5P |
| Overall length (L) | 36 |
| Thread length (ℓ) | 5.5 |
| Thread + Neck length (ℓn) | - |
| Shank length (ℓs) | 24 |
| Shank dia. (Ds) | 3 |
| Size of Square (K) | 2.5 |
| Length of square (ℓk) | 5 |
