Product Features
- The HC+SP/HC-SP is a spiral flute tap for high carbon steel such as S55C and is suitable for tapping of medium and high hardness materials up to 30 HRC.
Tapping conditions
The HC+SP/HC-SP is best suited for tapping of high carbon steel, alloy tool steel and refined steel.
| Workpiece Material | Cutting Speed（m/min） |  |
| S45C〜 High carbon steel |
10〜20 | |
| SKC、SKD Alloy tool steel |
5〜10 | |
| Thermal refining steel 25〜35HRC |
5〜10 |
Product chart (tensile strength)

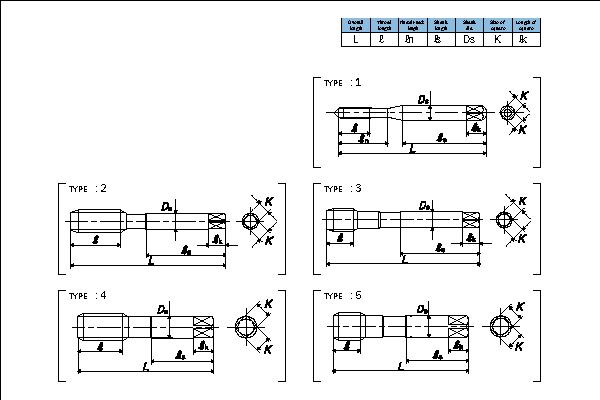

Specification
Tapping Speeds depending on Materials
- Product Name and Size.
| HC＋SP | ～M6 |
| HC－SP | M8～, all W |
Segment：1C
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M8×1.25 |
P2 |
SCMQ8.0N |
2.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M8×1 |
P2 |
SCMQ8.0M |
2.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P2 |
SCMQ010O |
2.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P2 |
SCMQ010N |
2.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1 |
P2 |
SCMQ010M |
2.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P2 |
SCMQ012P |
2.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P2 |
SCMQ012O |
2.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P2 |
SCMQ012N |
2.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1 |
P2 |
SCMQ012M |
2.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M14×2 |
P2 |
SCMQ014Q |
2.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P2 |
SCMQ014O |
2.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.25 |
P2 |
SCMQ014N |
2.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1 |
P2 |
SCMQ014M |
2.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M16×2 |
P2 |
SCMQ016Q |
2.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P2 |
SCMQ016O |
2.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1 |
P2 |
SCMQ016M |
2.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M18×2.5 |
P3 |
SCMR018R |
2.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M18×2 |
P3 |
SCMR018Q |
2.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M18×1.5 |
P2 |
SCMQ018O |
2.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M18×1 |
P2 |
SCMQ018M |
2.5P |
100 |
18 |
- |
51 |
14 |
11 |
14 |
4 |
3 |
|
M20×2.5 |
P3 |
SCMR020R |
2.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
4 |
|
M20×2 |
P3 |
SCMR020Q |
2.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
4 |
|
M20×1.5 |
P3 |
SCMR020O |
2.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
4 |
|
M20×1 |
P2 |
SCMQ020M |
2.5P |
105 |
18 |
- |
50 |
15 |
12 |
15 |
4 |
5 |
|
M22×2.5 |
P3 |
SCMR022R |
2.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
4 |
|
M22×2 |
P3 |
SCMR022Q |
2.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
4 |
|
M22×1.5 |
P3 |
SCMR022O |
2.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
4 |
|
M24×3 |
P3 |
SCMR024S |
2.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
4 |
|
M24×2 |
P3 |
SCMR024Q |
2.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
4 |
|
M24×1.5 |
P3 |
SCMR024O |
2.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
4 |
|
M25×1.5 |
P3 |
SCMR025O |
2.5P |
125 |
39 |
- |
58 |
19 |
15 |
18 |
4 |
4 |
|
M26×1.5 |
P3 |
SCMR026O |
2.5P |
130 |
39 |
- |
60 |
20 |
15 |
18 |
4 |
4 |
|
M27×3 |
P3 |
SCMR027S |
2.5P |
130 |
39 |
- |
60 |
20 |
15 |
18 |
4 |
4 |
|
M27×1.5 |
P3 |
SCMR027O |
2.5P |
130 |
39 |
- |
60 |
20 |
15 |
18 |
4 |
4 |
|
M28×1.5 |
P3 |
SCMR028O |
2.5P |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
4 |
|
M30×3.5 |
P4 |
SCMS030T |
2.5P |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
4 |
|
M30×1.5 |
P3 |
SCMR030O |
2.5P |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
4 |
| แบรนด์สินค้า | YAMAWA |
|---|
