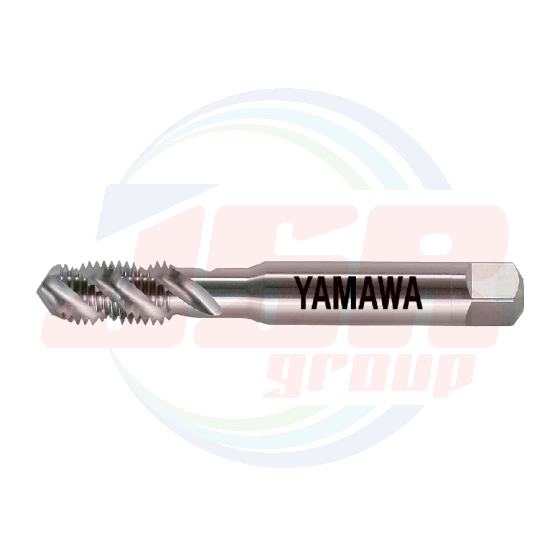

HC+SP Metric Threads | Spiral Fluted Taps for High Carbon Steels | YAMAWA

ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 235.40
พร้อมส่ง
SKU
YAM-HC+SP Metric Threads

Product Features

  • The HC+SP/HC-SP is a spiral flute tap for high carbon steel such as S55C and is suitable for tapping of medium and high hardness materials up  to 30 HRC.

Tapping conditions

    The HC+SP/HC-SP is best suited for tapping of high carbon steel, alloy tool steel and refined steel.

Workpiece Material Cutting Speed(m/min)
S45C〜
High carbon steel
10〜20
SKC、SKD
Alloy tool steel
5〜10
Thermal refining steel
25〜35HRC
5〜10

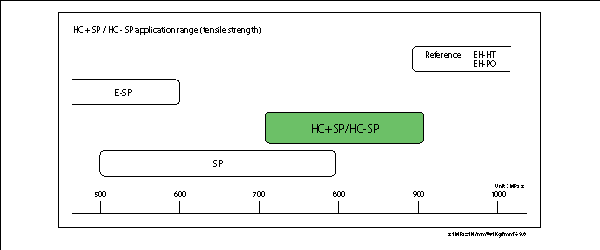

Product chart (tensile strength)

HC+SP Metric Threads | Spiral Fluted Taps for High Carbon Steels | YAMAWA
HC+SP Metric Threads | Spiral Fluted Taps for High Carbon Steels | YAMAWA

Specification



Tapping Speeds depending on Materials





  • Product Name and Size.
HC+SP ~M6
HC-SP M8~, all W







Segment:1C

Size

Class

Code

Chamfer

L

(mm)

(mm)

n

(mm)

s

(mm)

Ds

(mm)

K

(mm)

k

(mm)

No. of

flutes

TYPE

For Metric Threads

M3×0.5

P1

SCPP3.0G

2.5P

46

9

14

26

4

3.2

6

3

1

M4×0.7

P2

SCPQ4.0I

2.5P

52

11

17

29

5

4

7

3

1

M5×0.8

P2

SCPQ5.0K

2.5P

60

13

22

33

5.5

4.5

7

3

1

M6×1

P2

SCPQ6.0M

2.5P

62

15

26

33

6

4.5

7

3

1
