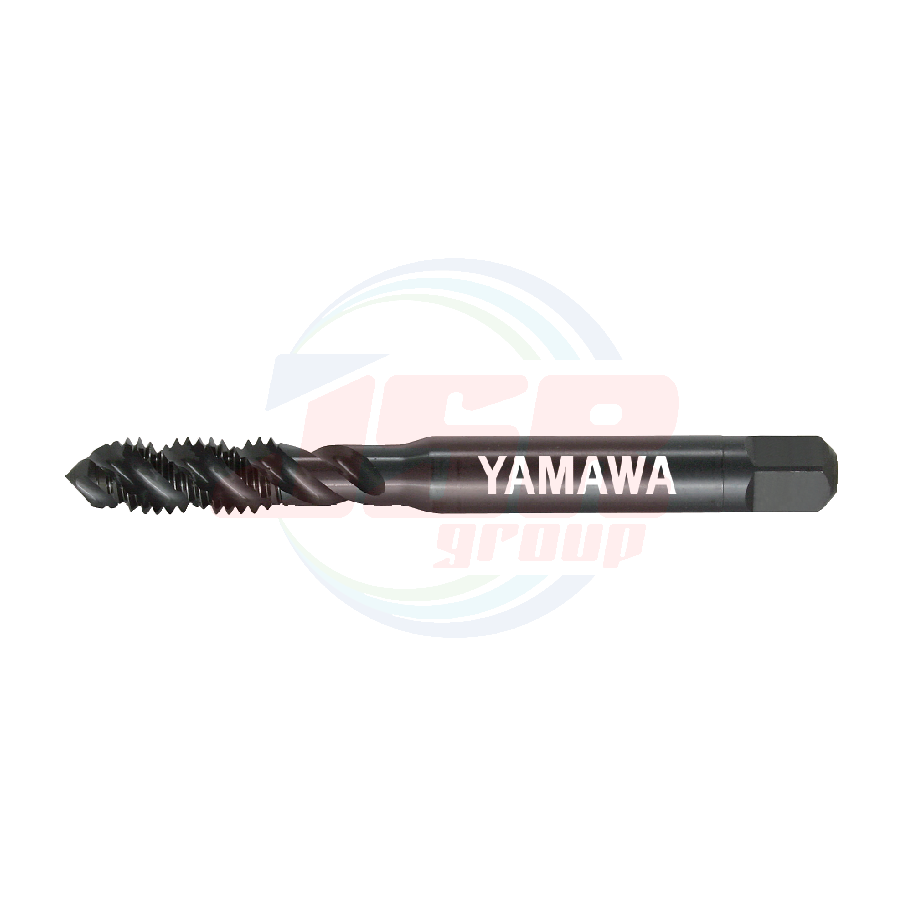

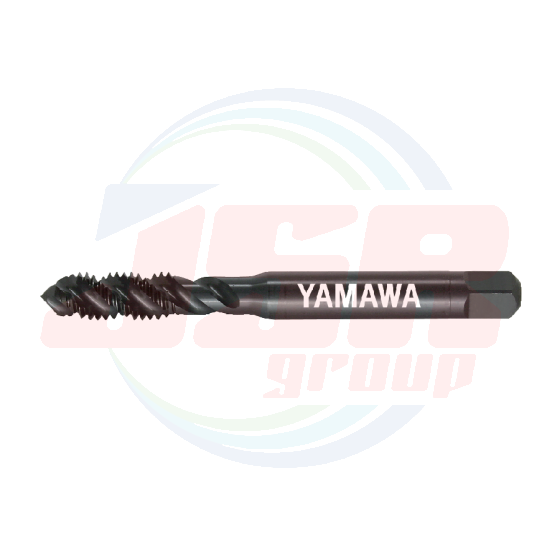

HC+SP-OX4X0.7 (SCPQ4.0IX) | Spiral Fluted Taps for High Carbon Steels, Oxidized | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 197.20
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
SCPQ4.0IX
QTY:
10
Product Features
- Spiral fluted tap suitable for high carbon steels such as S55C and the like, oxidized to avoid welding trouble.
pecification
Tapping Speeds depending on Materials
- Product Name and Size.
| HC＋SP OX | ～M6 |
| HC－SP OX | M8～ |
Segment：1C
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P1 |
SCPP3.0GX |
2.5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P2 |
SCPQ4.0IX |
2.5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P2 |
SCPQ5.0KX |
2.5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P2 |
SCPQ6.0MX |
2.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | M4×0.7 (SCPQ4.0IX) |
| Model | HC+SP OX/ HC-SP OX |
| Size | M4X0.7 |
| Class | P2 |
| Chamfer | 2.5P |
| Overall length (L) | 52 |
| Thread length (ℓ) | 11 |
| Thread + Neck length (ℓn) | 17 |
| Shank length (ℓs) | 29 |
| Shank dia. (Ds) | 5 |
| Size of Square (K) | 4 |
| Length of square (ℓk) | 7 |
