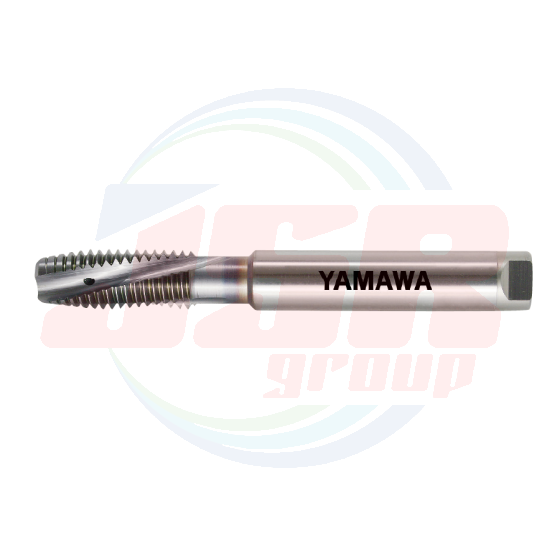

HDISL (Metric Threads) | Spiral Fluted Taps for Steels, for Dry Tapping and for Ultra High Speed Tapping, Through Hole Use (with LH Spiral Fluted) | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 926.62
พร้อมส่ง
SKU
YAM-HDISL Metric Threads
Product Features
- Ultra high-speed machining with mist or dry tapping machining are possible with a side coolant through hole shape.
- The left hand spiral flute shape makes it the perfect tapping for vertical or horizontal machining in carbon steel and alloy steel in through hole applications.
Tapping Data
Tapping Conditions [M12×1.25]
| Workpiece Material | S55C tempered steel |  |
| Hole Shape | Through holes | |
| Bored Hole Size | φ10.75 | |
| Tapping Length | 18mm | |
| Tapping Speed | 50m/min | |
| Machinery Type | M/C machine (horizontal type) | |
| Cutting Fluid | Water soluble cutting fluid | |
| Number of Holes Processed | 1,600 holes |
Speed recommendation table
Specification
Tapping Speeds depending on Materials
Segment：1T
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M6×1 |
P4 |
HDISLS6.0M |
5.5P |
62 |
19 |
27 |
32 |
6 |
- |
- |
3 |
1 |
|
M8×1.25 |
P4 |
HDISLS8.0N |
5.5P |
70 |
22 |
- |
36 |
8 |
- |
- |
3 |
2 |
|
M10×1.5 |
P4 |
HDISLS010O |
5.5P |
75 |
24 |
- |
37 |
10 |
- |
- |
3 |
2 |
|
M10×1.25 |
P4 |
HDISLS010N |
5.5P |
75 |
24 |
- |
37 |
10 |
- |
- |
3 |
2 |
|
M12×1.75 |
P4 |
HDISLS012P |
5.5P |
82 |
29 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M12×1.5 |
P4 |
HDISLS012O |
5.5P |
82 |
29 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M12×1.25 |
P4 |
HDISLS012N |
5.5P |
82 |
29 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M14×1.5 |
P4 |
HDISLS014O |
5.5P |
88 |
30 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M16×1.5 |
P4 |
HDISLS016O |
5.5P |
95 |
32 |
- |
43 |
16 |
- |
- |
3 |
2 |
|
M18×1.5 |
P4 |
HDISLS018O |
5.5P |
100 |
37 |
- |
45 |
16 |
- |
- |
4 |
2 |
|
M20×1.5 |
P5 |
HDISLT020O |
5.5P |
105 |
37 |
- |
45 |
16 |
- |
- |
4 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
