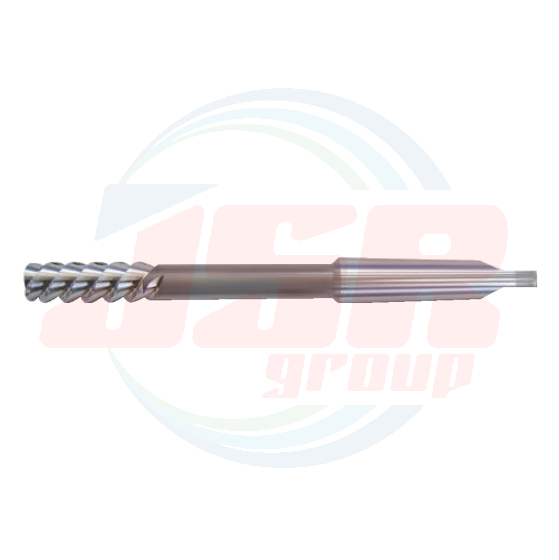

HELIX REAMERS WITH MT SHANK | DAIICHI TOOL

เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
HLXT_DAII
QTY:
0
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ

HELIX REAMERS WITH MT SHANK | DAIICHI TOOL
HELIX REAMERS WITH MT SHANK | DAIICHI TOOL
Order No. Diameter Flute Lenght Under Neck Lenght Overall Lenght Chamfer Shank No.
  D 1 L T d
HLXT4.0 4.0 22 44 110 5 MT1
HLXT4.1 4.1 22 44 110 6 MT1
HLXT4.2 4.2 22 44 110 6 MT1
HLXT4.3 4.3 22 44 110 6 MT1
HLXT4.4 4.4 22 44 110 6 MT1
HLXT4.5 4.5 25 49 115 6 MT1
HLXT4.6 4.6 25 49 115 6 MT1
HLXT4.7 4.7 25 49 115 6 MT1
HLXT4.8 4.8 25 49 115 6 MT1
HLXT4.9 4.9 25 49 115 6 MT1
HLXT5.0 5.0 25 49 115 6 MT1
HLXT5.1 5.1 30 59 125 6 MT1
HLXT5.2 5.2 30 59 125 6 MT1
HLXT5.3 5.3 30 59 125 6 MT1
HLXT5.4 5.4 30 59 125 6 MT1
HLXT5.5 5.5 30 59 125 6 MT1
HLXT5.6 5.6 30 59 125 6 MT1
HLXT5.7 5.7 30 59 125 7 MT1
HLXT5.8 5.8 30 59 125 7 MT1
HLXT5.9 5.9 30 59 125 7 MT1
HLXT6.0 6.0 30 59 125 7 MT1
HLXT6.1 6.1 30 69 135 7 MT1
HLXT6.2 6.2 30 69 135 7 MT1
HLXT6.3 6.3 30 69 135 7 MT1
HLXT6.4 6.4 30 69 135 7 MT1
HLXT6.5 6.5 30 69 135 7 MT1
HLXT6.6 6.6 30 69 135 7 MT1
HLXT6.7 6.7 30 69 135 7 MT1
HLXT6.8 6.8 30 69 135 7 MT1
HLXT6.9 6.9 30 69 135 7 MT1
HLXT7.0 7.0 30 69 135 8 MT1
HLXT7.1 7.1 35 82 148 8 MT1
HLXT7.2 7.2 35 82 148 8 MT1
HLXT7.3 7.3 35 82 148 8 MT1
HLXT7.4 7.4 35 82 148 8 MT1
HLXT7.5 7.5 35 82 148 8 MT1
HLXT7.6 7.6 35 82 148 8 MT1
HLXT7.7 7.7 35 82 148 8 MT1
HLXT7.8 7.8 35 82 148 8 MT1
HLXT7.9 7.9 35 82 148 8 MT1
HLXT8.0 8.0 35 82 148 8 MT1
HLXT8.1 8.1 40 99 165 8 MT1
HLXT8.2 8.2 40 99 165 8 MT1
HLXT8.3 8.3 40 99 165 8 MT1
HLXT8.4 8.4 40 99 165 8 MT1
HLXT8.5 8.5 40 99 165 8 MT1
HLXT8.6 8.6 40 99 165 8 MT1
HLXT8.7 8.7 40 99 165 8 MT1
HLXT8.8 8.8 40 99 165 8 MT1
HLXT8.9 8.9 40 99 165 8 MT1
HLXT9.0 9.0 40 99 165 8 MT1
HLXT9.1 9.1 40 99 165 10 MT1
HLXT9.2 9.2 40 99 165 10 MT1
HLXT9.3 9.3 40 99 165 10 MT1
HLXT9.4 9.4 40 99 165 10 MT1
HLXT9.5 9.5 40 99 165 10 MT1
HLXT9.6 9.6 40 99 165 10 MT1
HLXT9.7 9.7 40 99 165 10 MT1
HLXT9.8 9.8 40 99 165 10 MT1
HLXT9.9 9.9 40 99 165 10 MT1
HLXT10.0 10.0 40 99 165 10 MT1
HLXT10.1 10.1 40 104 170 10 MT1
HLXT10.2 10.2 40 104 170 10 MT1
HLXT10.3 10.3 40 104 170 10 MT1
HLXT10.4 10.4 40 104 170 10 MT1
HLXT10.5 10.5 40 104 170 10 MT1
HLXT10.6 10.6 40 104 170 10 MT1
HLXT10.7 10.7 40 104 170 10 MT1
HLXT10.8 10.8 40 104 170 10 MT1
HLXT10.9 10.9 40 104 170 10 MT1
HLXT11.0 11.0 40 104 170 10 MT1
HLXT11.1 11.1 40 104 170 10 MT1
HLXT11.2 11.2 40 104 170 10 MT1
HLXT11.3 11.3 40 104 170 10 MT1
HLXT11.4 11.4 40 104 170 10 MT1
HLXT11.5 11.5 40 104 170 10 MT1
HLXT11.6 11.6 40 104 170 10 MT1
HLXT11.7 11.7 40 104 170 10 MT1
HLXT11.8 11.8 40 104 170 10 MT1
HLXT11.9 11.9 40 104 170 10 MT1
HLXT12.0 12.0 40 104 170 10 MT1
HLXT12.1 12.1 45 114 180 10 MT1
HLXT12.2 12.2 45 114 180 10 MT1
HLXT12.3 12.3 45 114 180 10 MT1
HLXT12.4 12.4 45 114 180 10 MT1
HLXT12.5 12.5 45 114 180 10 MT1
HLXT12.6 12.6 45 114 180 10 MT1
HLXT12.7 12.7 45 114 180 10 MT1
HLXT12.8 12.8 45 114 180 10 MT1
HLXT12.9 12.9 45 114 180 10 MT1
HLXT13.0 13.0 45 114 180 10 MT1
HLXT 13.1 13.1 45 114 180 10 MT1
HLXT 13.2 13.2 45 114 180 10 MT1
HLXT 13.3 13.3 45 114 180 10 MT1
HLXT 13.4 13.4 45 114 180 10 MT1
HLXT 13.5 13.5 45 114 180 10 MT1
HLXT 13.6 13.6 45 114 180 10 MT1
HLXT 13.7 13.7 45 114 180 10 MT1
HLXT 13.8 13.8 45 114 180 10 MT1
HLXT 13.9 13.9 45 114 180 10 MT1
HLXT 14.0 14.0 45 114 180 10 MT1
HLXT 14.1 14.1 46 120 200 10 MT2
HLXT 14.2 14.2 46 120 200 10 MT2
HLXT 14.3 14.3 46 120 200 10 MT2
HLXT 14.4 14.4 46 120 200 10 MT2
HLXT 14.5 14.5 46 120 200 10 MT2
HLXT 14.6 14.6 46 120 200 10 MT2
HLXT 14.7 14.7 46 120 200 10 MT2
HLXT 14.8 14.8 46 120 200 10 MT2
HLXT 14.9 14.9 46 120 200 10 MT2
HLXT 15.0 15.0 46 120 200 10 MT2
HLXT 15.1 15.1 47 125 205 10 MT2
HLXT 15.2 15.2 47 125 205 10 MT2
HLXT 15.3 15.3 47 125 205 10 MT2
HLXT 15.4 15.4 47 125 205 10 MT2
HLXT 15.5 15.5 47 125 205 10.5 MT2
HLXT 15.6 15.6 47 125 205 10.5 MT2
HLXT 15.7 15.7 47 125 205 10.5 MT2
HLXT 15.8 15.8 47 125 205 10.5 MT2
HLXT 15.9 15.9 47 125 205 10.5 MT2
HLXT 16.0 16.0 47 125 205 10.5 MT2
HLXT 16.1 16.1 47 125 205 10.5 MT2
HLXT 16.2 16.2 47 125 205 10.5 MT2
HLXT 16.3 16.3 47 125 205 10.5 MT2
HLXT 16.4 16.4 47 125 205 10.5 MT2
HLXT 16.5 16.5 47 125 205 10.5 MT2
HLXT 16.6 16.6 47 125 205 10.5 MT2
HLXT 16.7 16.7 47 125 205 10.5 MT2
HLXT 16.8 16.8 47 125 205 10.5 MT2
HLXT 16.9 16.9 47 125 205 10.5 MT2
HLXT 17.0 17.0 47 125 205 10.5 MT2
HLXT 17.1 17.1 50 130 210 10.5 MT2
HLXT 17.2 17.2 50 130 210 10.5 MT2
HLXT 17.3 17.3 50 130 210 10.5 MT2
HLXT 17.4 17.4 50 130 210 10.5 MT2
HLXT 17.5 17.5 50 130 210 10.5 MT2
HLXT 17.6 17.6 50 130 210 10.5 MT2
HLXT 17.7 17.7 50 130 210 10.5 MT2
HLXT 17.8 17.8 50 130 210 10.5 MT2
HLXT 17.9 17.9 50 130 210 10.5 MT2
HLXT 18.0 18.0 50 130 210 10.5 MT2
HLXT 18.1 18.1 50 130 210 10.5 MT2
HLXT 18.2 18.2 50 130 210 10.5 MT2
HLXT 18.3 18.3 50 130 210 10.5 MT2
HLXT 18.4 18.4 50 130 210 10.5 MT2
HLXT 18.5 18.5 50 130 210 10.5 MT2
HLXT 18.6 18.6 50 130 210 10.5 MT2
HLXT 18.7 18.7 50 130 210 10.5 MT2
HLXT 18.8 18.8 50 130 210 10.5 MT2
HLXT 18.9 18.9 50 130 210 10.5 MT2
HLXT 19.0 19.0 50 130 210 10.5 MT2
HLXT 19.1 19.1 55 140 220 10.5 MT2
HLXT 19.2 19.2 55 140 220 10.5 MT2
HLXT 19.3 19.3 55 140 220 10.5 MT2
HLXT 19.4 19.4 55 140 220 10.5 MT2
HLXT 19.5 19.5 55 140 220 10.5 MT2
HLXT 19.6 19.6 55 140 220 10.5 MT2
HLXT 19.7 19.7 55 140 220 10.5 MT2
HLXT 19.8 19.8 55 140 220 10.5 MT2
HLXT 19.9 19.9 55 140 220 10.5 MT2
HLXT 20.0 20.0 55 140 220 10.5 MT2
HLXT 20.5 20.5 55 140 220 10.5 MT2
HLXT 21.0 21.0 55 150 230 10.5 MT2
HLXT 21.5 21.5 55 150 230 10.5 MT2
HLXT 22.0 22.0 55 150 230 10.5 MT2
HLXT 22.5 22.5 55 150 230 10.5 MT2
HLXT 23.0 23.0 60 160 240 11 MT2
HLXT 23.5 23.5 60 141 240 11 MT3
HLXT 24.0 24.0 60 151 250 11 MT3
HLXT 24.5 24.5 60 151 250 11 MT3
HLXT 25.0 25.0 60 156 255 11 MT3
HLXT 25.6 25.6 60 156 255 11 MT3
HLXT 26.0 26.0 60 156 255 11 MT3
HLXT 26.5 26.5 60 156 255 11 MT3
HLXT 27.0 27.0 60 156 255 11 MT3
HLXT 27.5 27.5 60 161 260 11 MT3
HLXT 28.0 28.0 60 161 260 11 MT3
HLXT 28.5 28.5 60 161 260 11 MT3
HLXT 29.0 29.0 60 161 260 11 MT3
HLXT 29.5 29.5 60 161 260 11 MT3
HLXT 30.0 30.0 60 161 260 11 MT3
HLXT 31.0 31.0 60 171 270 11 MT3
HLXT 32.0 32.0 63 166 290 13 MT4
HLXT 33.0 33.0 63 166 290 13 MT4
HLXT 34.0 34.0 63 189 310 13 MT4
HLXT 35.0 35.0 63 206 330 13 MT4
HLXT 36.0 36.0 63 206 330 13 MT4
HLXT 37.0 37.0 63 206 330 13 MT4
HLXT 38.0 38.0 63 206 330 13 MT4
HLXT 39.0 39.0 63 206 330 13 MT4
HLXT 40.0 40.0 65 211 335 15 MT4

MAT : HSS-Co  (0.01mm)

Order No. Diameter Flute Lenght Under Neck Lenght Overall Lenght Chamfer Shank No.
  D 1 L T d
HLXT 4.01~4.05 4.01~4.05 22 44 110 5 MT1
HLXT 5.01~5.05 5.01~5.05 25 49 115 6 MT1
HLXT 6.01~6.05 6.01~6.05 30 59 125 7 MT1
HLXT 7.01~7.05 7.01~7.05 30 69 135 7 MT1
HLXT 8.01~8.05 8.01~8.05 35 82 148 8 MT1
HLXT 9.01~9.05 9.01~9.05 40 99 165 8 MT1
HLXT10.01~10.05 10.01~10.05 40 99 165 10 MT1
HLXT11.01~11.05 11.01~11.05 40 104 170 10 MT1
HLXT12.01~12.05 12.01~12.05 40 104 170 10 MT1
HLXT13.01~13.05 13.01~13.05 45 114 180 10 MT1
HLXT14.01~14.05 14.01~14.05 45 114 180 10 MT1
HLXT15.01~15.05 15.01~15.05 46 120 200 10 MT2
HLXT16.01~16.05 16.01~16.05 47 125 205 10.5 MT2
HLXT17.01~17.05 17.01~17.05 47 125 205 10.5 MT2
HLXT18.01~18.05 18.01~18.05 50 130 210 10.5 MT2
HLXT19.01~19.05 19.01~19.05 50 130 210 10.5 MT2
HLXT20.01~20.05 20.01~20.05 55 140 220 10.5 MT2





More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า DAIICHI TOOL
