HFACT-B | Carbide Taps for Ultra Fast Tappings, Blind Hole Use, for Aluminum | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 6,140.19
พร้อมส่ง
SKU
HFACT-B
Product Features
- The HFACT-B is a carbide tap capable of ultra high speed tapping in Aluminum. Utilizing a side coolant through hole shape , it is compatible with internal lubrication and mist applications for through hole tapping. It lowers temperature cooling in dry tapping where necessary. It is suitable for materials such as aluminum casting or aluminum die casting.
Product system table

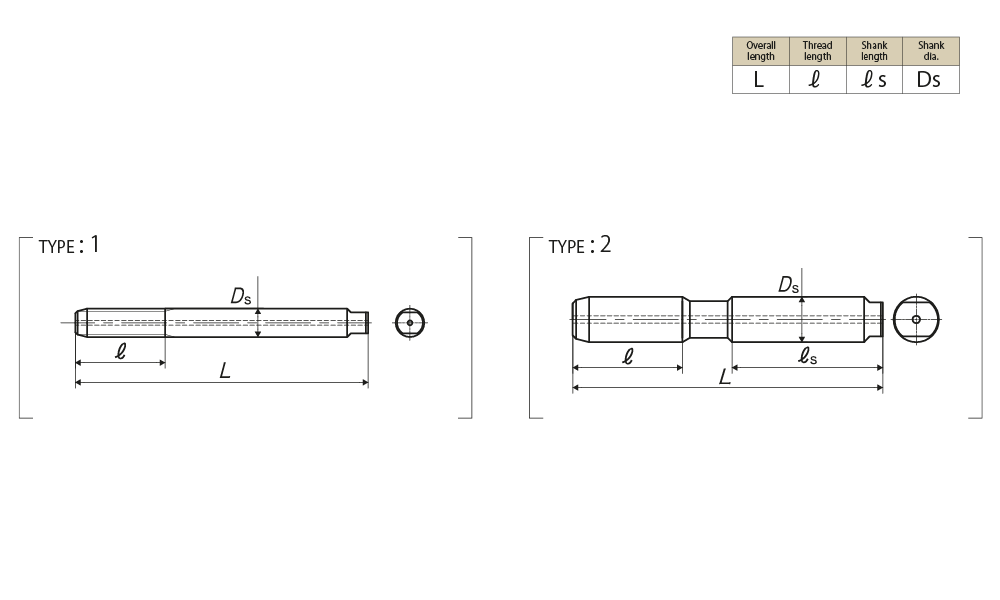

Specification

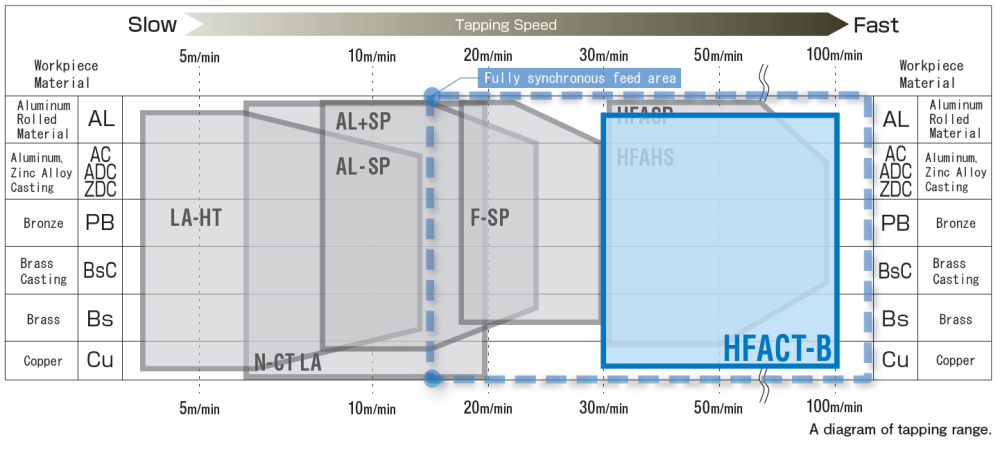

Tapping Speeds depending on Materials
Segment：1L
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
|||||||||||
|
M6×1 |
P3 |
HFACTBR6.0M |
2.5P |
62 |
19 |
- |
6 |
- |
- |
3 |
1 |
|
M8×1.25 |
P3 |
HFACTBR8.0N |
2.5P |
70 |
22 |
36 |
8 |
- |
- |
3 |
2 |
|
M10×1.5 |
P3 |
HFACTBR010O |
2.5P |
75 |
24 |
37 |
10 |
- |
- |
3 |
2 |
|
M10×1.25 |
P3 |
HFACTBR010N |
2.5P |
75 |
24 |
37 |
10 |
- |
- |
3 |
2 |
|
M12×1.75 |
P3 |
HFACTBR012P |
2.5P |
82 |
29 |
40 |
12 |
- |
- |
3 |
2 |
|
M12×1.5 |
P3 |
HFACTBR012O |
2.5P |
82 |
29 |
40 |
12 |
- |
- |
3 |
2 |
|
M12×1.25 |
P3 |
HFACTBR012N |
2.5P |
82 |
29 |
40 |
12 |
- |
- |
3 |
2 |
Note:
・There is no shank square so please use a holder with high holding force such as milling chuck.
・The back end of the shank is a tongue drive specification. If the area where the back end of the shank contacts the holder is a V dish shape, the coolant may leak.
