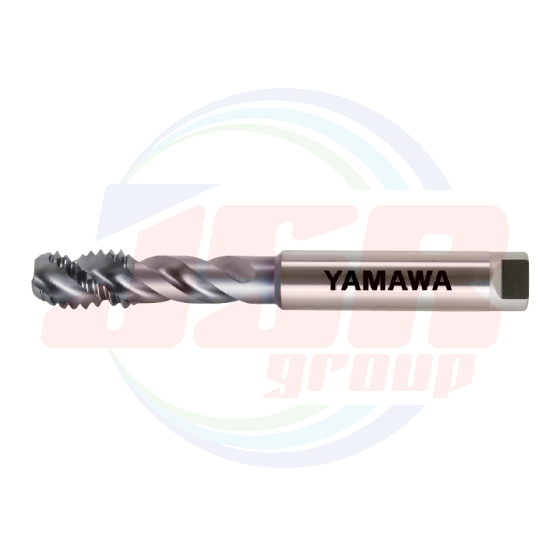

HFAHS (Metric Threads) | For Ultra Fast Tapping, Vertical Use. Spiral Fluted Taps for Aluminum | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 1,692.74
พร้อมส่ง
SKU
YAM-HFAHS Metric Threads
Product Features
- A center coolant through hole tap that can be used at ultra high speed and is compatible with internal lubrication processing.
- The high helix flutes, making it the optimum tap for materials such as aluminum alloy, magnesium alloy and zinc alloy castings.
Tapping Data
Tapping Conditions [P4 M6 × 1]
| Work Piece Material | ADC12 |  |
| Bored Hole Shape | Blind hole | |
| Bored Hole Size | φ5.1 | |
| Tapping Length | 15mm | |
| Tapping Speed | 104m/min | |
| Machinery Type | M/C machining center (vertical type) | |
| Cutting Fluid | Water soluble cutting fluid | |
| Number of Holes Processed |
9,000 |
Speed chart
Specification
Tapping Speeds depending on Materials
Segment：1C
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M6×1 |
P4 |
HFAHSS6.0M |
2.5P |
62 |
11 |
27 |
32 |
6 |
- |
- |
3 |
1 |
|
M8×1.25 |
P4 |
HFAHSS8.0N |
2.5P |
70 |
12 |
- |
36 |
8 |
- |
- |
3 |
2 |
|
M10×1.5 |
P4 |
HFAHSS010O |
2.5P |
75 |
13 |
- |
37 |
10 |
- |
- |
3 |
2 |
|
M10×1.25 |
P4 |
HFAHSS010N |
2.5P |
75 |
12 |
- |
37 |
10 |
- |
- |
3 |
2 |
|
M12×1.75 |
P4 |
HFAHSS012P |
2.5P |
82 |
15 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M12×1.5 |
P4 |
HFAHSS012O |
2.5P |
82 |
14 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M12×1.25 |
P4 |
HFAHSS012N |
2.5P |
82 |
14 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M14×1.5 |
P4 |
HFAHSS014O |
2.5P |
88 |
14 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M16×1.5 |
P4 |
HFAHSS016O |
2.5P |
95 |
14 |
- |
43 |
16 |
- |
- |
3 |
2 |
|
M18×1.5 |
P4 |
HFAHSS018O |
2.5P |
100 |
14 |
- |
45 |
16 |
- |
- |
3 |
2 |
|
M20×1.5 |
P5 |
HFAHST020O |
2.5P |
105 |
14 |
- |
45 |
16 |
- |
- |
3 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
