Product Features
- A center coolant through hole tap that can be used at ultra high speed and is compatible with internal lubrication in horizontal processing.
- The low helix flutes, making it the optimum tap for materials such as aluminum alloy, magnesium alloy and zinc alloy castings.
Tapping Data
Tapping Conditions [P4 M8 × 1.25]
| Work Piece Material | ADC12-T5 |  |
| Bored Hole Shape | Blind hole | |
| Bored Hole Size | φ6.8 | |
| Tapping Length | 28.5mm | |
| Tapping Speed | 100m/min | |
| Machinery Type | M/C machining center (vertical type) | |
| Cutting Fluid | Water soluble cutting fluid | |
| Number of Holes Processed |
12,000 |
Speed chart
Specification

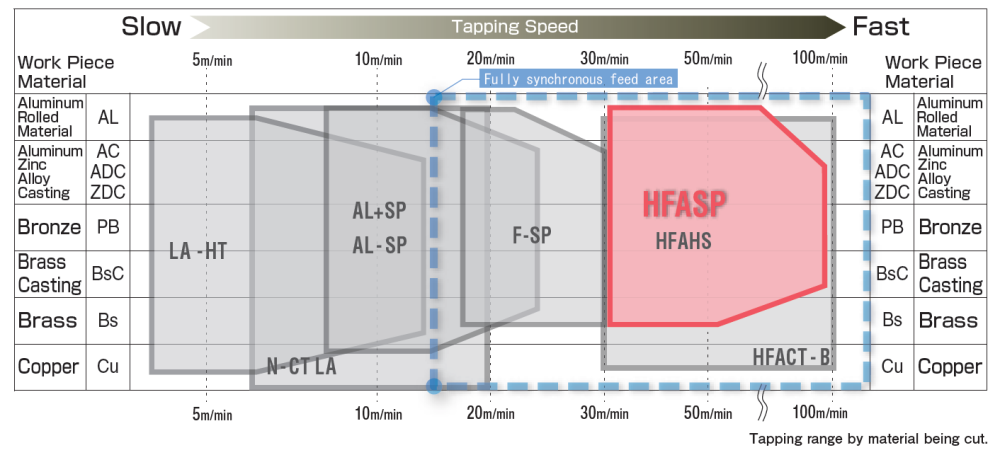

Tapping Speeds depending on Materials
Segment：1C
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M6×1 |
P4 |
HFASPS6.0M |
2.5P |
62 |
19 |
27 |
32 |
6 |
- |
- |
3 |
1 |
|
M8×1.25 |
P4 |
HFASPS8.0N |
2.5P |
70 |
22 |
- |
36 |
8 |
- |
- |
3 |
2 |
|
M10×1.5 |
P4 |
HFASPS010O |
2.5P |
75 |
24 |
- |
37 |
10 |
- |
- |
3 |
2 |
|
M10×1.25 |
P4 |
HFASPS010N |
2.5P |
75 |
24 |
- |
37 |
10 |
- |
- |
3 |
2 |
|
M12×1.75 |
P4 |
HFASPS012P |
2.5P |
82 |
29 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M12×1.5 |
P4 |
HFASPS012O |
2.5P |
82 |
29 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M12×1.25 |
P4 |
HFASPS012N |
2.5P |
82 |
29 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M14×1.5 |
P4 |
HFASPS014O |
2.5P |
88 |
30 |
- |
40 |
12 |
- |
- |
3 |
2 |
|
M16×1.5 |
P4 |
HFASPS016O |
2.5P |
95 |
32 |
- |
43 |
16 |
- |
- |
3 |
2 |
|
M18×1.5 |
P4 |
HFASPS018O |
2.5P |
100 |
37 |
- |
45 |
16 |
- |
- |
3 |
2 |
|
M20×1.5 |
P5 |
HFASPT020O |
2.5P |
105 |
37 |
- |
45 |
16 |
- |
- |
3 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
