Product Features

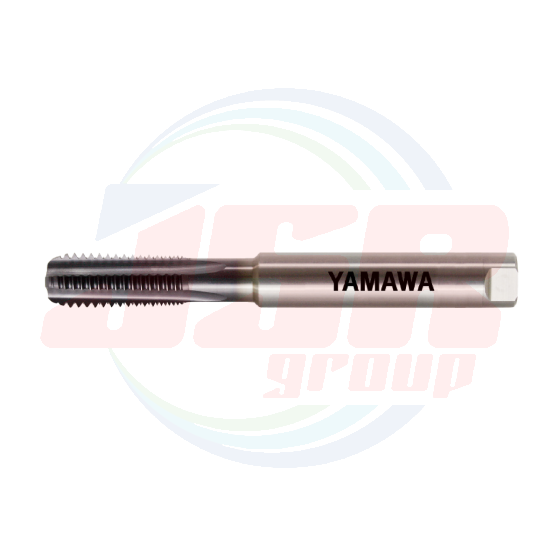

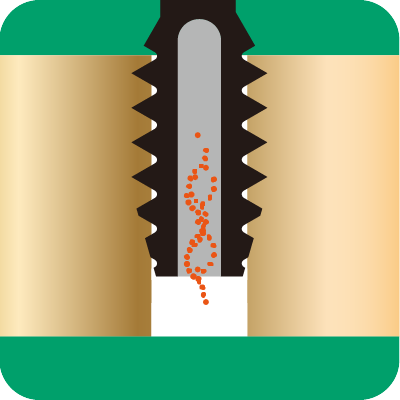

● The HFICT-B is a carbide tap capable of ultra high speed tapping. It has a coolant through hole for internal lubrication distribution or mist applications. It can lower temperature by cooling in a dry tapping application where necessary with an air blast. It is suitable for blind hole tapping in materials such as cast irons and brass castings.
Product symbol table

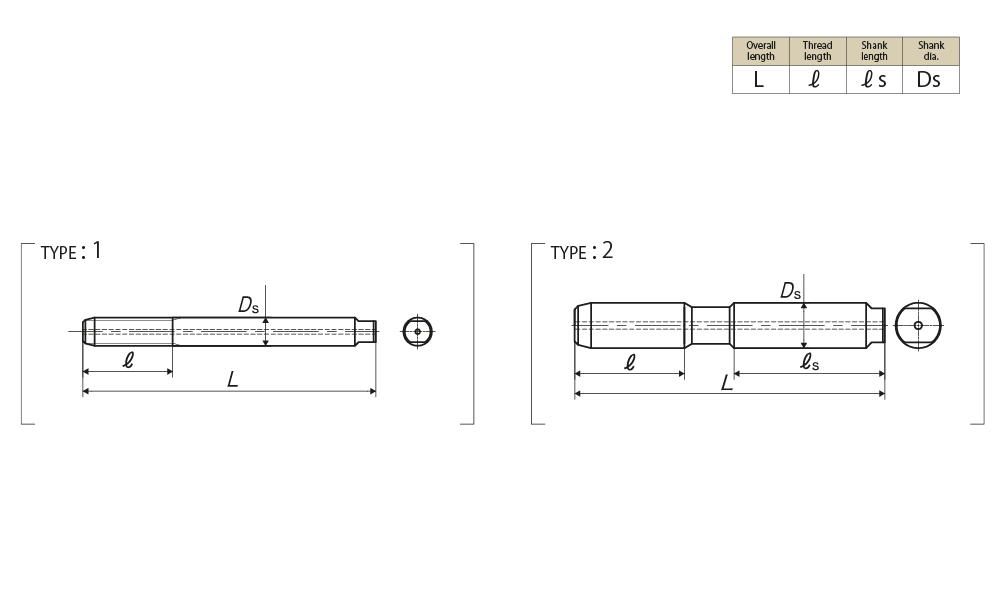

Specification

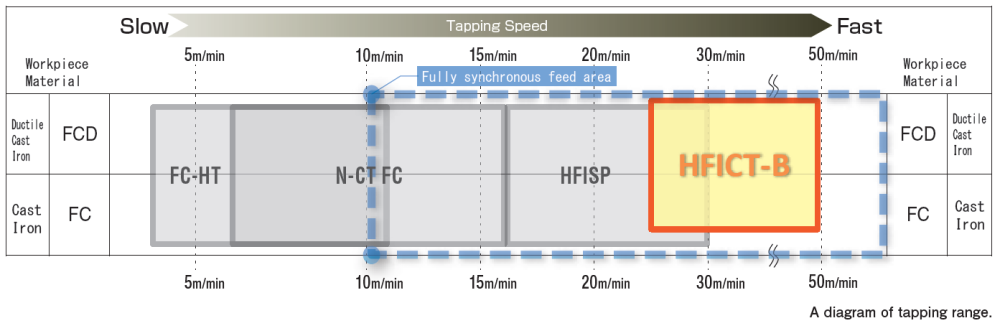

Tapping Speeds depending on Materials
Segment：1L
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
|||||||||||
|
M6×1 |
P3 |
HFICTBR6.0M |
2.5P |
62 |
19 |
- |
6 |
- |
- |
4 |
1 |
|
M8×1.25 |
P3 |
HFICTBR8.0N |
2.5P |
70 |
22 |
36 |
8 |
- |
- |
4 |
2 |
|
M10×1.5 |
P3 |
HFICTBR010O |
2.5P |
75 |
24 |
37 |
10 |
- |
- |
4 |
2 |
|
M10×1.25 |
P3 |
HFICTBR010N |
2.5P |
75 |
24 |
37 |
10 |
- |
- |
4 |
2 |
|
M12×1.75 |
P3 |
HFICTBR012P |
2.5P |
82 |
29 |
40 |
12 |
- |
- |
4 |
2 |
|
M12×1.5 |
P3 |
HFICTBR012O |
2.5P |
82 |
29 |
40 |
12 |
- |
- |
4 |
2 |
|
M12×1.25 |
P3 |
HFICTBR012N |
2.5P |
82 |
29 |
40 |
12 |
- |
- |
4 |
2 |
Note:
・There is no shank square so please use a holder with high holding force such as milling chuck.
・The back end of the shank is a tongue drive specification. If the area where the back end of the shank contacts the holder is a V
dish shape, the coolant may leak.
