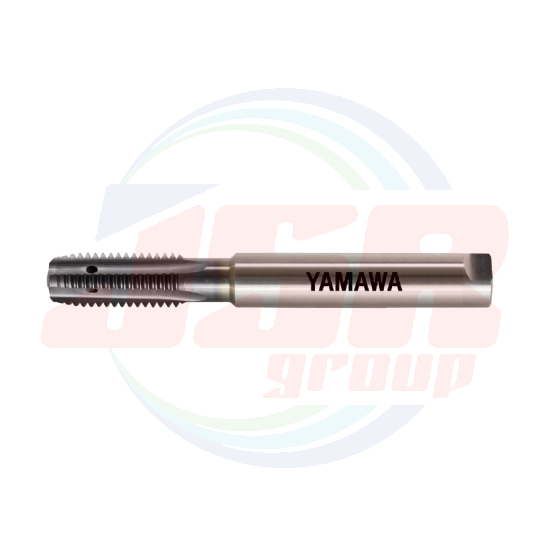

HFICT-P8X1.25 (HFICTPR8.0N) | Carbide Taps for Ultra Fast Tappings, Through Hole Use, for Cast Irons | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 6,140.19
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
HFICTPR8.0N
QTY:
1
Product Features

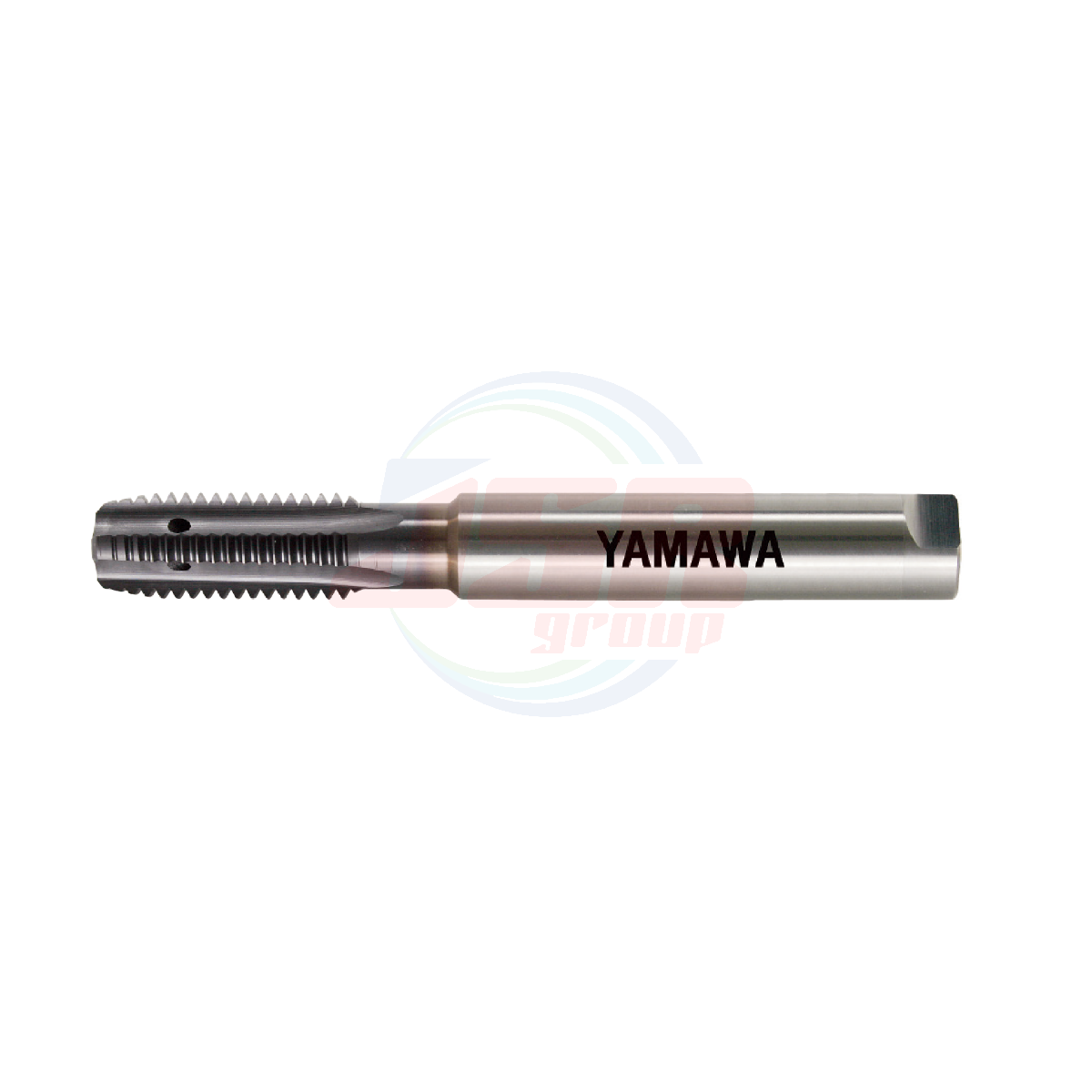

● The HFICT-P is a carbide tap capable of ultra high speed tapping. It has a side coolant through hole for internal lubrication distribution or mist applications. It can lower temperature by cooling in a dry tapping application where necessary with an air blast. It is suitable for though hole tapping in materials such as cast irons and brass castings.
Product system table
Specification
Tapping Speeds depending on Materials
Segment：1L
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
|||||||||||
|
M6×1 |
P3 |
HFICTPR6.0M |
4P |
62 |
19 |
- |
6 |
- |
- |
4 |
1 |
|
M8×1.25 |
P3 |
HFICTPR8.0N |
4P |
70 |
22 |
36 |
8 |
- |
- |
4 |
2 |
|
M10×1.5 |
P3 |
HFICTPR010O |
4P |
75 |
24 |
37 |
10 |
- |
- |
4 |
2 |
|
M10×1.25 |
P3 |
HFICTPR010N |
4P |
75 |
24 |
37 |
10 |
- |
- |
4 |
2 |
|
M12×1.75 |
P3 |
HFICTPR012P |
4P |
82 |
29 |
40 |
12 |
- |
- |
4 |
2 |
|
M12×1.5 |
P3 |
HFICTPR012O |
4P |
82 |
29 |
40 |
12 |
- |
- |
4 |
2 |
|
M12×1.25 |
P3 |
HFICTPR012N |
4P |
82 |
29 |
40 |
12 |
- |
- |
4 |
2 |
Note:
・There is no shank square so please use a holder with high holding force such as milling chuck.
・The back end of the shank is a tongue drive specification. If the area where the back end of the shank contacts the holder is a V
dish shape, the coolant may leak.
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | M8x1.25 (HFICTPR8.0N) |
| Model | HFICT-P |
| Size | M8X1.25 |
| Class | P3 |
| Chamfer | 4P |
| Overall length (L) | 70 |
| Thread length (ℓ) | 22 |
| Shank length (ℓs) | 36 |
| Shank dia. (Ds) | 8 |
| Size of Square (K) | - |
| Length of square (ℓk) | - |
