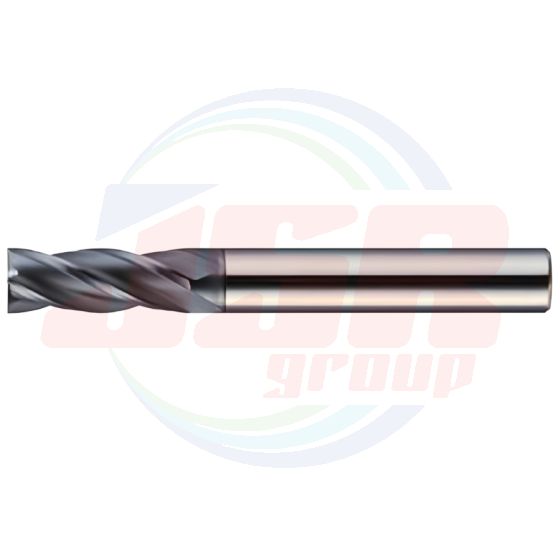

HGOS4010-PN | Epoch Panacea Square | MOLDINO
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
HGOS4010-PN
QTY:
29
4 flutes
0〜−0.02
| 品コード Item code |
在庫 Stock |
寸法 Size(mm) | 刃数 No. of flutes |
タイプ Type |
||||
|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
首下長 Under neck length |
全長 Overall length |
シャンク径 Shank dia. |
||||
| DC | APMX | LB2 | LF | DCONMS | ||||
| HGOS4010-PN | ● | 1 | 2.5 | 3 | 40 | 4 | 4 | A |
| HGOS4015-PN | ● | 1.5 | 4 | 4.5 | 40 | 4 | 4 | A |
| HGOS4020-PN | ● | 2 | 6 | 7 | 40 | 4 | 4 | A |
| HGOS4025-PN | ● | 2.5 | 8 | 9 | 40 | 4 | 4 | A |
| HGOS4030-PN | ● | 3 | 10 | 11 | 45 | 6 | 4 | A |
| HGOS4040-PN | ● | 4 | 12 | 13 | 45 | 6 | 4 | B |
| HGOS4050-PN | ● | 5 | 15 | 16 | 60 | 6 | 4 | B |
| HGOS4060-PN | ● | 6 | 15 | – | 60 | 6 | 4 | C |
| HGOS4080-PN | ● | 8 | 20 | – | 75 | 8 | 4 | C |
| HGOS4100-PN | ● | 10 | 25 | – | 80 | 10 | 4 | C |
| HGOS4120-PN | ● | 12 | 30 | – | 100 | 12 | 4 | C |
| HGOS4160-PN | ● | 16 | 35 | – | 110 | 16 | 4 | C |
| HGOS4200-PN | ● | 20 | 40 | – | 125 | 20 | 4 | C |
●印：標準在庫品です。 ●: Stocked items.
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Order No. | HGOS4010-PN |
| Tool dia. | 1 |
| Under neck length | 3 |
| Flute length | 2.5 |
| Overall length | 40 |
| Shank dia | 4 |
