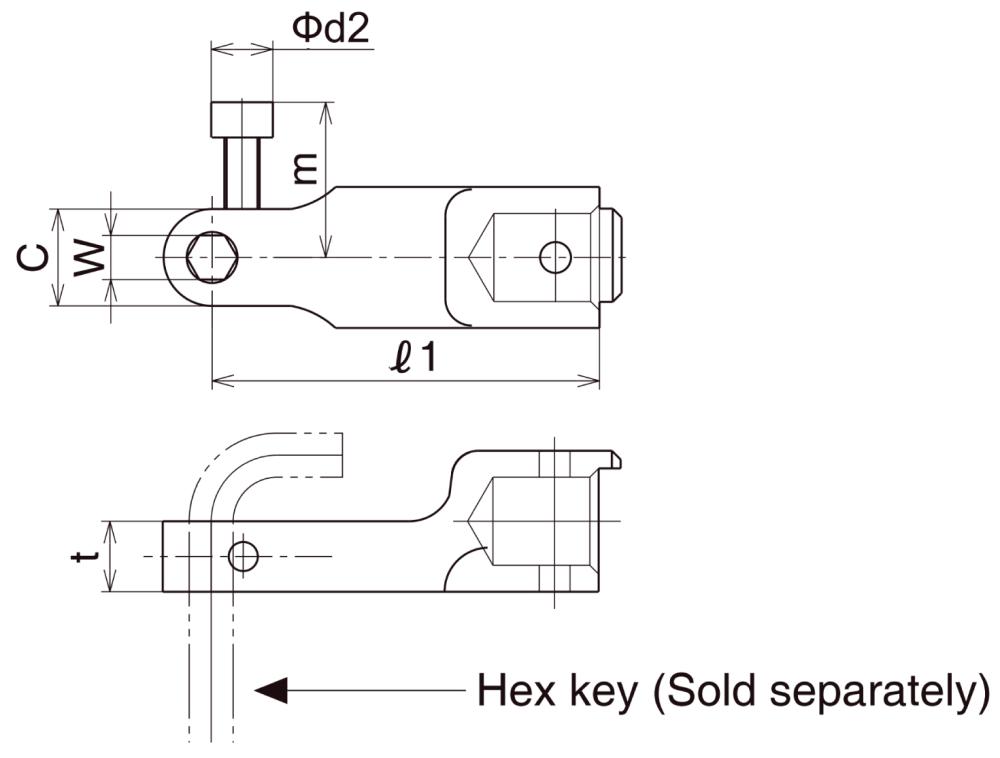

HH - Hex Head
The HH hex-head is for hex. socket head cap screws.
| Order No. (Body size x width) | Head Size | Dimensions | |||
| Outside width C [mm] | t [mm] | m [mm] | Ød2 [mm] | ||
| HH8D | 8D | 12 | 14.5 | - | - |
| HH10Dx5 | 10D | 11 | 8 | 19 | 7 |
| HH10Dx6 | 12 | ||||
| HH10Dx8 | 15 | ||||
| HH12Dx5 | 12D | 11 | 10 | ||
| HH12Dx6 | 14 | ||||
| HH12Dx8 | 15 | ||||
| HH12Dx10 | 17 | ||||
| HH15Dx8 | 15D | 14 | 13 | 21 | 8.5 |
| HH15Dx10 | 17 | ||||
| HH15Dx12 | 20 | ||||
| HH15Dx14 | 21.5 | ||||
| HH19Dx10 | 19D | 17 | 23 | ||
| HH19Dx12 | 21.5 | ||||
| HH19Dx14 | 23 | ||||
| HH19Dx17 | 27 | ||||
| HH19Dx19 | 29 | ||||
| HH22Dx12 | 22D | 19.5 | 17 | 26 | 10 |
| HH22Dx14 | 27 | ||||
| HH22Dx17 | 30 | ||||
| HH22Dx19 | 32 | ||||
| HH22Dx22 | 35 | ||||
Note : 1. To be used with hex. key inserted.
2. HH8D is not used with hex. key but interchangeable bit.
3. Insertion of HH10Dx5 and HH10Dx6 are hexagon. Others are double hexagon.
