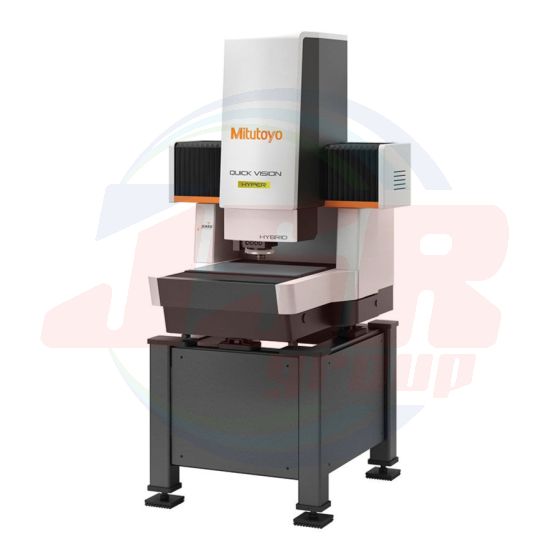

QV HYPER Pro
High-accuracy CNC Vision Measuring System
• The QV HYPER Pro is a highly accurate model that is equipped with a high-resolution/accuracy scale.
• We offer a model with tracking auto focus (TAF) that quickly focuses on the object improving throughput significantly.
• The camera motion and the strobe light are synchronized to make non-stop vision measurements without stopping the stage. This makes it possible to use STREAM to shorten measuring time dramatically.
• There is a general-purpose model with white LED light and an enhanced edge detection model with RGB color LEDs.
• This model is standard-equipped with automatic temperature compensation that uses a temperature sensor on the main unit of the measuring machine and a temperature sensor for the workpiece.
SPECIFICATIONS
| Model Name. | QV HYPER 302 Pro | QV HYPER 404 Pro | QV HYPER 606 Pro | ||||||||||
| Model | QV-H302P1L-E | QV-H302T1L-E | QV-H302P1C-E | QV-H302T1C-E | QV-H404P1L-E | QV-H404T1L-E | QV-H404P1C-E | QV-H404T1C-E | QV-H606P1L-E | QV-H606T1L-E | QV-H606P1C-E | QV-H606T1C-E | |
| Measuring range [mm] | 300×200×200 | 400×400×250 | 600×650×250 | ||||||||||
| Observation unit*¹ | Programmable power turret 1x, 2x, 6x, (12x)*² | ||||||||||||
| Tracking Auto Focus device | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | |
| Illumination Unit | Contour illumination | White LED | |||||||||||
| Surface illumination | White LED | Color LED | White LED | Color LED | White LED | Color LED | |||||||
| PRL | White LED | Color LED | White LED | Color LED | White LED | Color LED | |||||||
| Resolution of scale [μm] | 0.02 | ||||||||||||
| Vision measuring accuracy [μm] |
EUX/EUY, MPE | (0.8 + 2L/1000) | |||||||||||
| EUXY, MPE | (1.4 + 3L/1000) | ||||||||||||
| EUZ, MPE | (1.5 + 2L/1000) | ||||||||||||
| LAF Repeatability [μm] | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | |
| Temperature compensation function | Automatic | ||||||||||||
*1 Programmable power turret 1x, 2x, 4x, 6x model is available as special order. Digital magnification function allows 8x and 12x in addition to 1x, 2x, 4x, 6x. 6 steps of magnification are available in total.
*2 The value in parenthesis is for digital magnification change.
