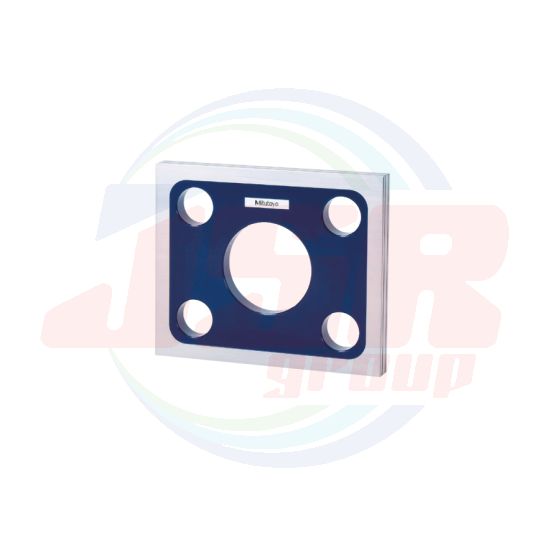

• The High-Precision Square gage is used for inspecting the travel straightness and axial perpendicularity of moving elements on equipment, such as machine tools and CMMs.
• Four precision-lapped reference surfaces, finished using ultra-precision technology built on our experience in gauge blocks.
• Better than 1 μm/300 mm straightness and perpendicularity of each (four) reference surface. In addition, front and back faces are accurate to better than 5 μm/300 mm.
• Three nominal sizes are available (90×110, 160×210 and 260×310 mm) so that you can select the size that best suits the application.
SPECIFICATIONS
Metric
Order No. | Dimension (W×L×T) (mm) |
Perpendicularity tolerance (µm) |
Straightness tolerance (µm) |
Mass (kg) |
||
Reference surface |
Front / back faces |
Reference surface |
Front / back faces |
|||
311-111 | 90×110×25 | 1 | 5 | 1 | 5 | 1.5 |
311-112 | 160×210×25 | 5.0 | ||||
311-113 | 260×310×30 | 14.0 |
• Dedicated wooden case is provided.
* Supplied with a removable handle.
แบรนด์สินค้า | MITUTOYO |
---|
