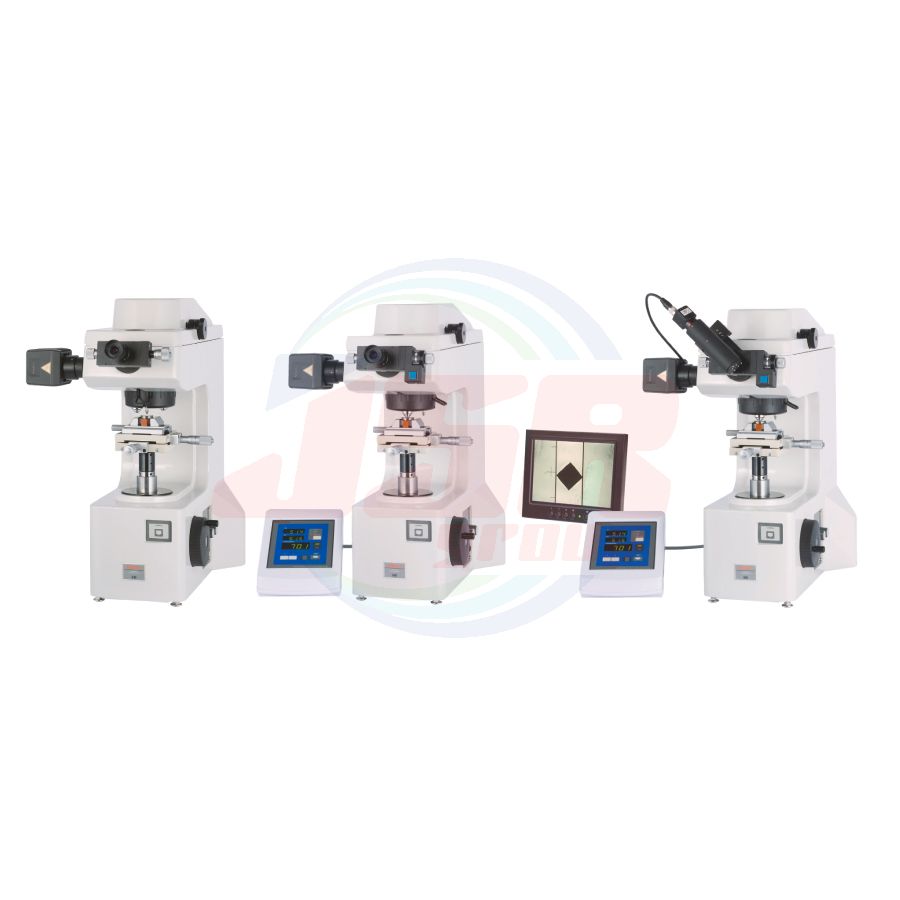

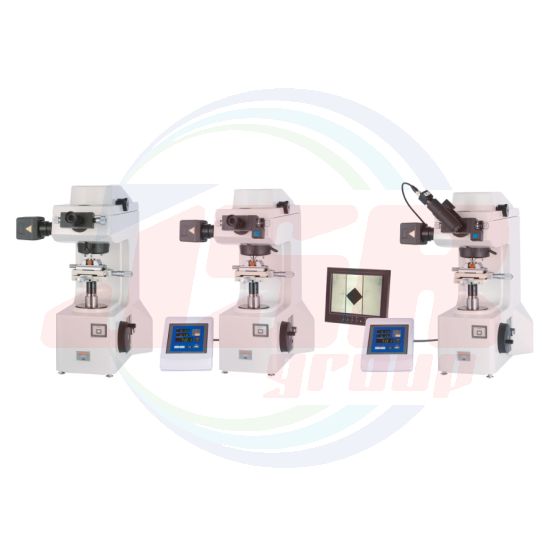

Micro Vickers Hardness Testing Machine
HM-100
The ideal series for Vickers hardness testing at the microscopic scale. Basic smart machines with the minimum requirement of functions for hardness testing. Three types are available: an analog model (HM-101) and digital models (HM-102/103).
Applicable standards: JIS B7725 / ISO 6507-2
Test force: 98.07 - 9,807 mN (10 - 1,000 gf)
Model | HM-101 | HM-102 | HM-103 | |
Applicable standards | JIS B7725/ISO 6507-2 | |||
Testable hardness | Vickers hardness (HV)/Knoop hardness (HK) | |||
Test force | mN | 98.07 245.2 490.3 980.7 1961 2942 4903 9807 | ||
(gf) | (10) (25) (50) (100) (200) (300) (500) (1000) | |||
Test force control | Auto (load, duration, unload) | |||
Test force duration time | 5 to 30 s (Arbitrary setting) | 5 to 60 s | ||
Indenter approach speed | Approx. 60 μm/s (Approx. 50 μm/s) | |||
Specimen dimensions | Height: 95 mm, Depth: 150 mm | |||
Optical path | Measurement path/exposure path (Optical path split method) | |||
Objective lens | 10X (For observation), 50X (For measurement) |
10X, 50X (Measurement available with both lenses) |
||
Minimum display | 0.2 μm | 0.1 μm | ||
Maximum measurement length | Objective lens 50X: 140 μm |
Objective lens 10X: 700 μm Objective lens 50X: 140 μm |
Objective lens 10X: 500 (V) ×650 (H) μm Objective lens 50X: 100 (V) ×130 (H) μm |
|
Manual XY stage | With analog micrometer head, Minimum graduation10 μm | |||
Table size | 100×100 mm | |||
Stage XY range | 25×25 mm | |||
Measurement magnification calibrator | ̶ | Installed | ||
Data processing function | ̶ | Indentation diagonal length Hardness value Pass/failure decision function |
||
TV device Camera (1/3 inch) Monitor (8 inch monochrome) |
̶ | ̶ | Standard accessory | |
Turret switch | Manual | |||
External connection interface | ̶ | Digimatic, RS-232C, Centronics | ||
External dimensions | Main unit: Approx. 380 (W) ×600 (D) ×590 (H) mm | |||
Mass | Main unit: 42 kg | |||
Power supply / Power consumption | AC 100 V±10% (AC 120 V, AC 220 V, AC 240 V according to the factory shipped setting) HM-101, 102: 60 VA or less HM-103: Approx. 90 VA or less |
Note1: An optional Knoop indenter is required for Knoop hardness measurement.
Note2: HM-102/103 operation panel external dimensions: 165 (W) ×260 (D) ×105 (H) mm, 1.5 kg
Note3: HM-103 TV unit monitor external dimension: 232 (W) ×227 (D) ×426 (H) mm, mass: 4.4 kg
