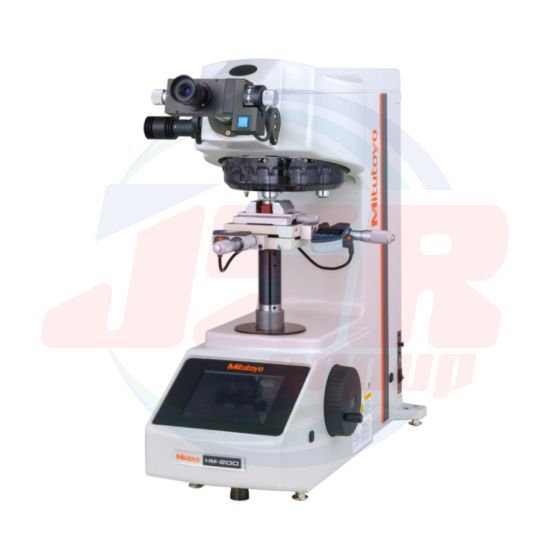

Micro Vickers Hardness Testing Machine (Automatic Type)
HM-210/220
Adopts an electromagnetic force (force motor) load mechanism.
Freely select different test forces.
Four types of system (A to D) available for different purposes.
Applicable standards: JIS B7725 / ISO 6507-2
Test force: 98.07 - 9,807 mN (10 - 1,000 gf), 0.4903 - 19,610 mN (0.05 - 2,000 gf)
Model | HM-210 | HM-220 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display unit | metric | inch/mm | metric | metric | inch/mm | metric | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation | Manual | Manual | System | Manual | Manual | System | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Applicable standards | JIS B7725/ISO 6507-2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Testable hardness | Vickers hardness (HV)/Knoop hardness (HK)/Fracture toughness (Kc) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Test force |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Variable test force, setting of one model can be saved (Initial setting: HV0.025). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indenter approach speed | Fixed at 60 μm/s | HV0.03 or less: Variable between 2 and 60 μm/s. Can be set in 1 μm/s increments. HV0.031 or greater: Fixed at 60 μm/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specimen | Maximum dimensions | Depth: 160 mm Height: 133 mm (Manual XY stage unit 25 mm)/72 mm (Motorized XY stage unit 100 mm+AF stage) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. loading capacity | System A, B: 3 kg System C: 7 kg System D: 4 kg | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical section | Optical system | Infinitely corrected optical system, 4-port objective lens switching method | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination | Light source | White LED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Aperture diaphragm | Variable | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard objective lens |
Lens | MH Plan 10X MH Plan 50X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working distance | 11.8 mm 2.5 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Real field of view and imaging range | System A: Real field of view: ø0.28 mm (maximum range: 0.14 mm) System B, C, D: Imaging range: 0.118 (H) mm×0.089 (V) mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Measuring microscope (Ocular) | System A: Length-measuring microscope with integrated encoder and eyepiece (10X) System B, C, D: Factory-installed options | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mechanism | Test time | Test force loading time | 1 to 99 s Can be set in 1 s increments. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Test force duration time | 0 to 999 s Can be set in 1 s increments. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Test force unloading time | 1 to 99 s Can be set in 1 s increments. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Loading device |
Test force control | Electromagnetic (voice coil) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Test force switching | System A: Can be selected from touch panel System B, C, D: Can be selected by AVPAK-10/20 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Turret | Drive method | Motor drive (Can be operated by manual) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation method | System A: Touch panel System B: AVPAK-10/20 System C/D: AVPAK-10/20 and Remote Control Box | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number of turret ports | Indenter shaft unit: Up to two can be installed (including the standard Vickers indenter shaft unit already installed); Objective lens unit: Up to four can be installed (including the standard 10X, 50X objective lens already installed) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Data output | RS-232C, Digimatic (can be used in only System A), USB2.0/Type A (only mounted in System A for USB memory), USB2.0/Type B (for PC communication) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power supply/Power consumption | AC100 V 50/60 Hz 31 W (for HM-210 manual model main unit) 44 W (for HM-220 manual model main unit) 30 W (for HM-210 system model main unit) 43 W (for HM-220 system model main unit) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum specimen dimensions/Maximum load capacity |
System A | Approx. 315 (W) ×671 (D) ×595 (H) mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System B, C, D | Approx. 315 (W) ×586 (D) ×741 (H) mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mass | Common for all system | 38.5 kg (Manual model main unit) 37.4 kg (System model main unit) |
Note: The AVPAK-20 software package is not for use within, or export to, the United States of America. The AVPAK-10 software package is for the United States of America.
