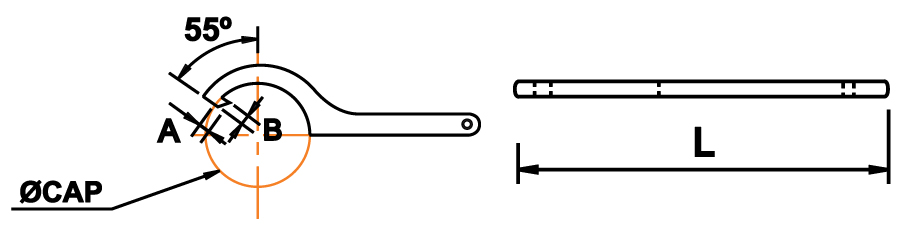

| Order No. | L (mm) | CAP. Ø (mm) | CAP. Ø (inch) | A (mm) | B (mm) | Weight (g) |
|---|---|---|---|---|---|---|
| 68283 | 110 | 12-14 | 1/2-9/16 | 1.8 | 1.8 | 16 |
| 68284 | 110 | 16-20 | 5/8-25/32 | 2.3 | 2 | 20 |
| 68285 | 120 | 25-28 | 1-1.1/8 | 2.5 | 2.3 | 40 |
| 68286 | 120 | 30-32 | 1.3/16-1.1/4 | 2.5 | 2.5 | 60 |
| 68287 | 150 | 34-36 | 1.5/16-1.13/32 | 2.5 | 3 | 90 |
| 68288 | 150 | 40-42 | 1.9/16-1.21/32 | 2.5 | 3 | 100 |
| 68289 | 180 | 45-50 | 1.3/4-2 | 3 | 3.5 | 150 |
| 68290 | 180 | 52-55 | 2.1-16-2.3/16 | 3 | 3.5 | 160 |
| 68291 | 210 | 58-62 | 2.9/32-2.7/16 | 3.5 | 4 | 210 |
| 68292 | 210 | 68-75 | 2.11/16-3 | 3.5 | 4 | 250 |
| 68293 | 240 | 80-90 | 3.1/8-3.1/2 | 4 | 5 | 370 |
| 68295 | 240 | 95-100 | 3.3/4-4 | 4 | 5 | 410 |
| 68296 | 280 | 110-115 | 4.5/16-4.9/16 | 4 | 5 | 700 |
| 68297 | 280 | 120-130 | 4.11/16-5.1/8 | 4 | 5 | 750 |
| 68298 | 320 | 135-145 | 5.5/16-5.3/4 | 6 | 6 | 1050 |
| 68299 | 320 | 150-165 | 5.7/8-6.1/2 | 6 | 6 | 1150 |
| 57640 | 380 | 180-195 | 7.1/8-7.5/8 | 14 | 6 | 1800 |
| 57641 | 380 | 205-220 | 8.1/8-8.5/8 | 14 | 6 | 1900 |
| 57642 | 460 | 230-245 | 9.1/8-9.5/8 | 16 | 8 | 3530 |
| 57643 | 460 | 260-270 | 10.1/4-10.5/8 | 16 | 8 | 3600 |
| 57644 | 550 | 280-300 | 11.1/8-11.3/4 | 16 | 10 | 5430 |
DIN 1810
