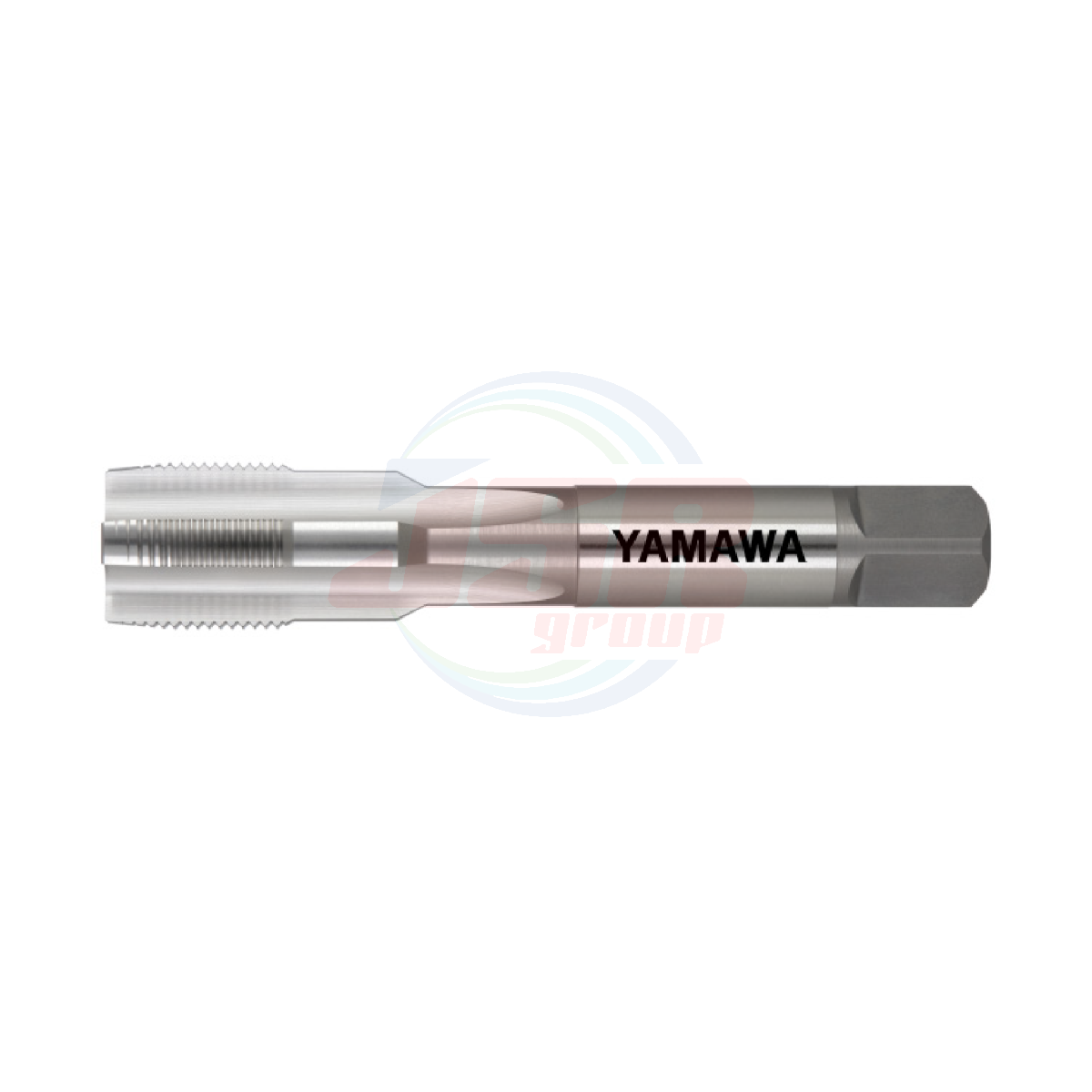

HT-CTC19-16 (TYCC190HEB5) | Hand Taps for Steel Conduit Threads | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 2,358.88
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
TYCC190HEB5
QTY:
1
- Tap for steel conduit threads. Thread angle is 80 degree and the thread symbol is CTC.
Specification
Tapping Speeds depending on Materials
Segment：1A
|
Size |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Steel Conduit Threads |
||||||||||||
|
CTC19-16 |
TYCC190HEB5 |
5P |
19.100 |
105 |
23 |
- |
50 |
15 |
12 |
15 |
4 |
1 |
|
CTC25-16 |
TYCC250HEB5 |
5P |
25.400 |
125 |
24 |
- |
58 |
19 |
15 |
18 |
4 |
1 |
|
CTC31-16 |
TYCC310HEB5 |
5P |
31.800 |
145 |
26 |
- |
67 |
24 |
19 |
22 |
4 |
1 |
|
CTC39-16 |
TYCC390HEB5 |
5P |
38.100 |
165 |
27 |
- |
76 |
30 |
23 |
26 |
4 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | CTC19-16 (TYCC190HEB5) |
| Model | HT CTC |
| Size | CTC19-16 |
| Chamfer | 5P |
| Overall length (L) | 105 |
| Thread length (ℓ) | 23 |
| Thread + Neck length (ℓn) | - |
| Shank length (ℓs) | 50 |
| Shank dia. (Ds) | 15 |
| Size of Square (K) | 12 |
| Length of square (ℓk) | 15 |
