HT-CTG (Thick Steel Conduit Threads)

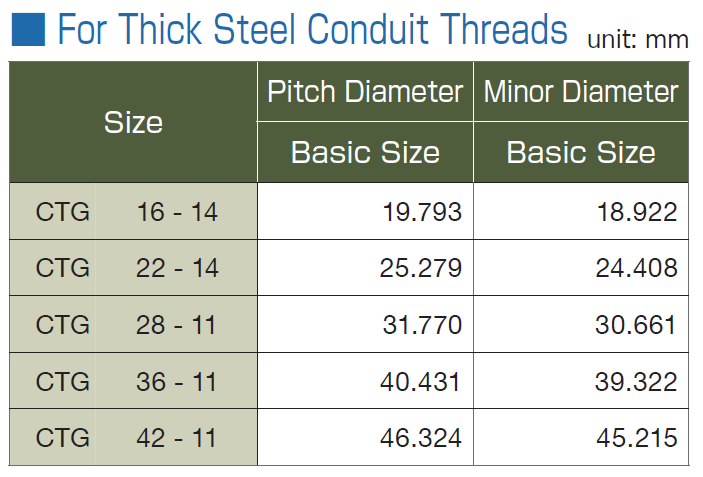

- Tap for thick steel conduit threads. Thread angle is 55 degree and the thread symbol is CTG.
Specification

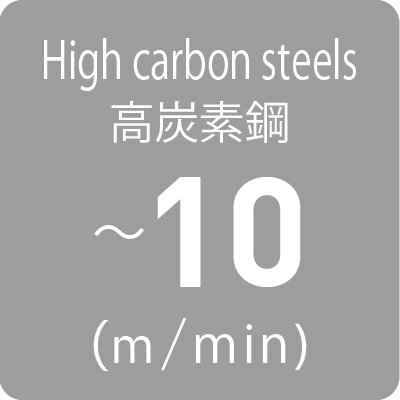

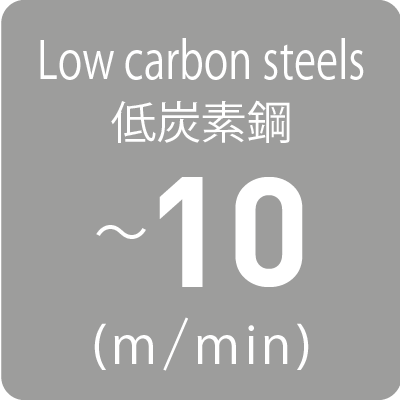

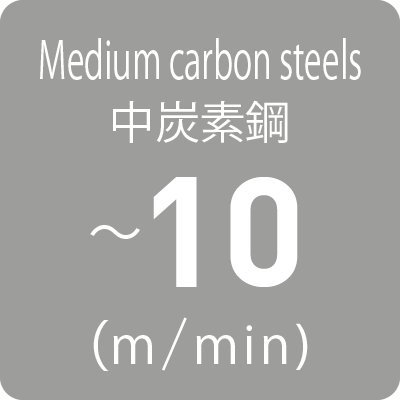

Tapping Speeds depending on Materials
Segment：1A
|

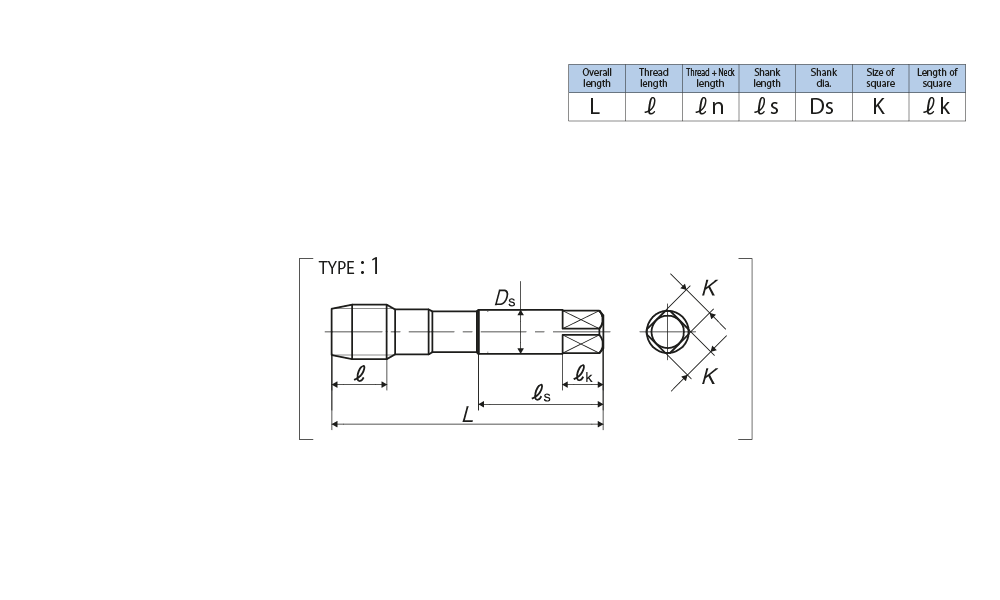

Size |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Thick Steel Conduit Threads |
||||||||||||
|
CTG16-14 |
TYCG160HEB5 |
5P |
20.955 |
115 |
25 |
- |
55 |
17 |
13 |
16 |
4 |
1 |
|
CTG22-14 |
TYCG220HEB5 |
5P |
26.441 |
130 |
26 |
- |
60 |
20 |
15 |
18 |
4 |
1 |
|
CTG28-11 |
TYCG280HEB5 |
5P |
33.249 |
155 |
31 |
- |
71 |
28 |
21 |
24 |
4 |
1 |
|
CTG36-11 |
TYCG360HEB5 |
5P |
41.910 |
180 |
33 |
- |
83 |
35 |
26 |
30 |
4 |
1 |
|
CTG42-11 |
TYCG420HEB5 |
5P |
47.803 |
185 |
34 |
- |
85 |
38 |
29 |
32 |
4 |
1 |
