HT-MST (Microscope Objective Lens)
- Product Features
● Taps for Microscope Objective Lens
● The taps can be used for creating internal screw threads with machining center or by hand and rethreading as well. For through hole use.

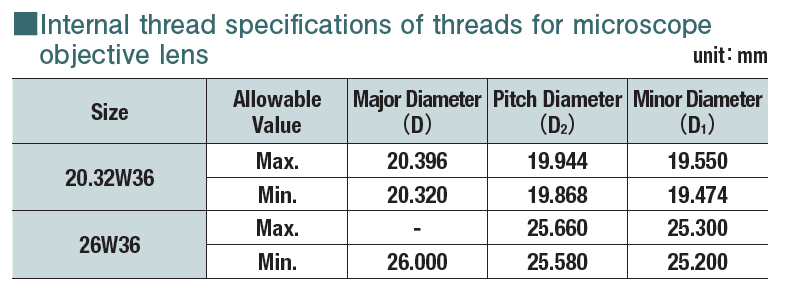

● For RMS-type Whitworth threads specified in JIS B 7141“ Microscopes objective lens”.

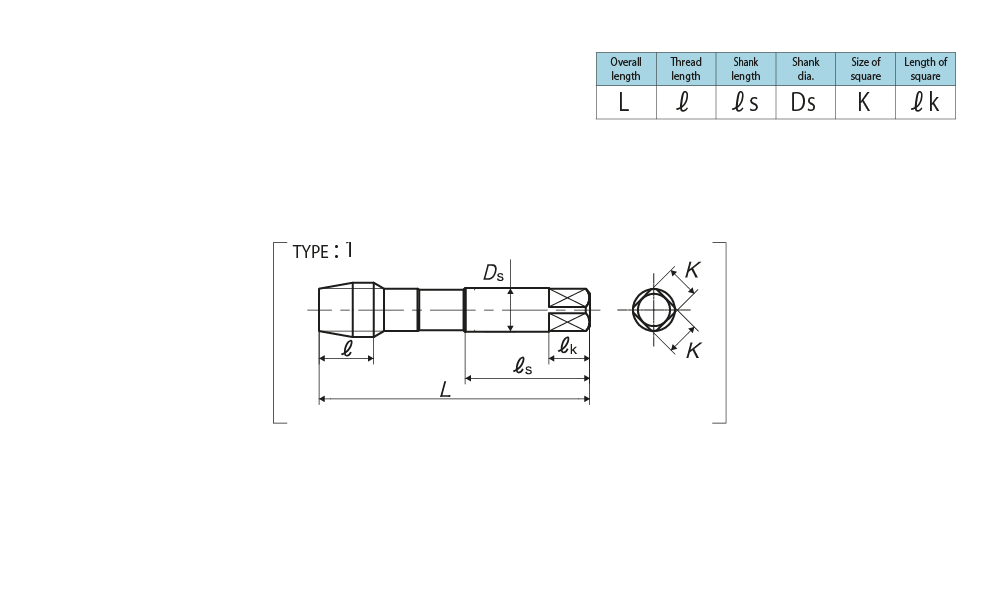

Specification
Tapping Speeds depending on Materials
Segment：1A
|
Size |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Microscope Objective Lens |
||||||||||
|
20.32W36 |
TYRMS10LEB5 |
5P |
87 |
16 |
44 |
18 |
14 |
17 |
4 |
1 |
|
20.32W36 |
TYRMS10LEBA |
1.5P |
87 |
16 |
44 |
18 |
14 |
17 |
4 |
1 |
|
26W36 |
TYRMS20LEB5 |
5P |
96 |
17 |
49 |
23 |
17 |
20 |
4 |
1 |
|
26W36 |
TYRMS20LEBA |
1.5P |
96 |
17 |
49 |
23 |
17 |
20 |
4 |
1 |
＊ M25 size (M25×0.75), M27 size (M27×0.75), and M32 size (M32×0.75) standards are also available. These can be supported by“ HT” (See page ④-16 and 17).

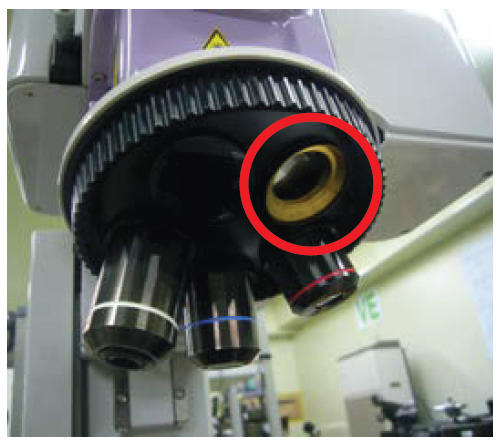

The tap is used for internal threads of a microscope revolver as shown in the picture.
