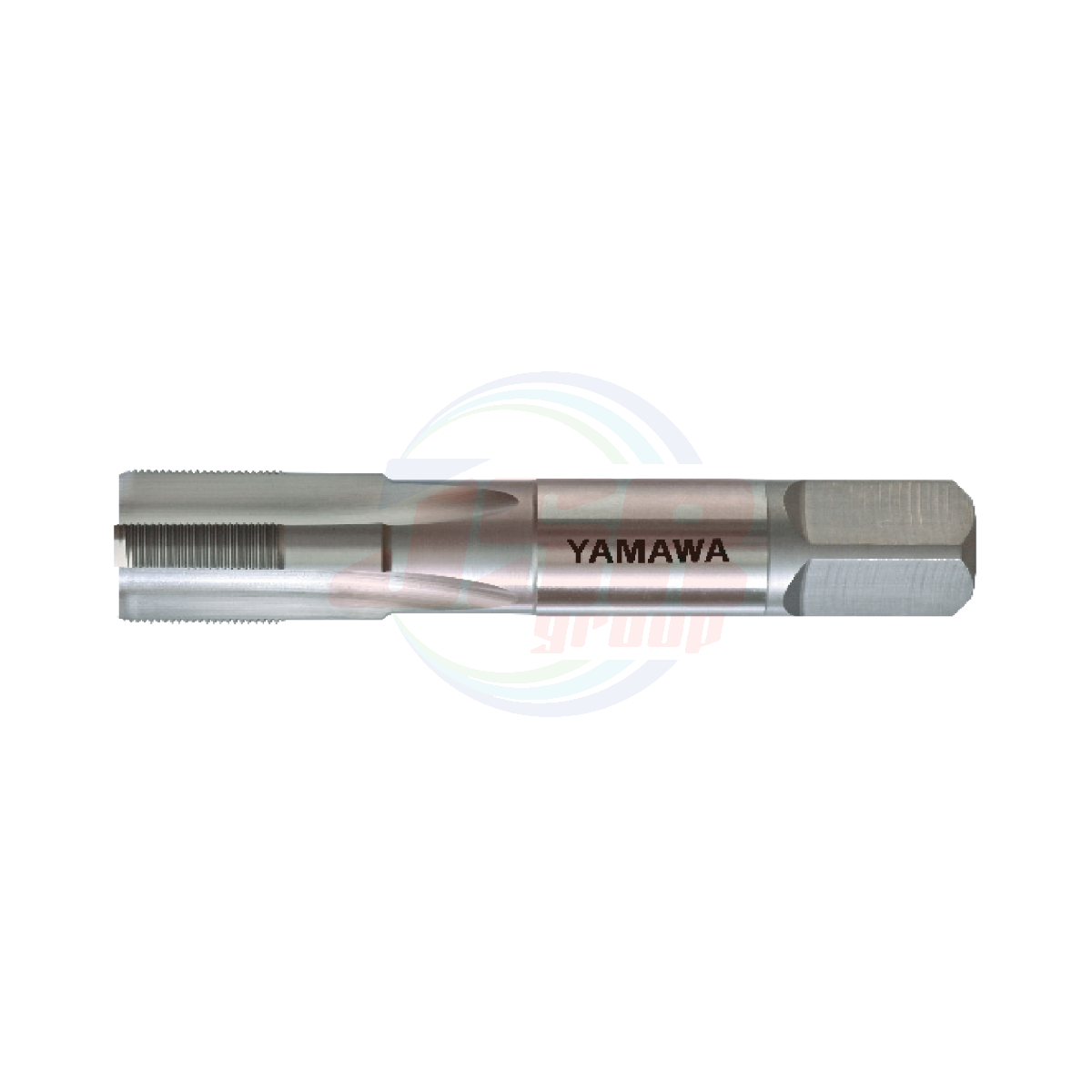

HT-MST20.32W36 (TYRMS10LEBA) | Hand Tap for Microscope Objective Lens | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 4,508.41
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
TYRMS10LEBA
QTY:
10
- Product Features
● Taps for Microscope Objective Lens
● The taps can be used for creating internal screw threads with machining center or by hand and rethreading as well. For through hole use.
● For RMS-type Whitworth threads specified in JIS B 7141“ Microscopes objective lens”.
Specification
Tapping Speeds depending on Materials
Segment：1A
|
Size |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Microscope Objective Lens |
||||||||||
|
20.32W36 |
TYRMS10LEB5 |
5P |
87 |
16 |
44 |
18 |
14 |
17 |
4 |
1 |
|
20.32W36 |
TYRMS10LEBA |
1.5P |
87 |
16 |
44 |
18 |
14 |
17 |
4 |
1 |
|
26W36 |
TYRMS20LEB5 |
5P |
96 |
17 |
49 |
23 |
17 |
20 |
4 |
1 |
|
26W36 |
TYRMS20LEBA |
1.5P |
96 |
17 |
49 |
23 |
17 |
20 |
4 |
1 |
＊ M25 size (M25×0.75), M27 size (M27×0.75), and M32 size (M32×0.75) standards are also available. These can be supported by“ HT” (See page ④-16 and 17).
The tap is used for internal threads of a microscope revolver as shown in the picture.
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 20.32W36 (TYRMS10LEBA) |
| Model | HT MST |
| Size | 20.32W36 |
| Chamfer | 1.5P |
| Overall length (L) | 87 |
| Thread length (ℓ) | 16 |
| Shank length (ℓs) | 44 |
| Shank dia. (Ds) | 18 |
| Size of Square (K) | 14 |
| Length of square (ℓk) | 17 |
