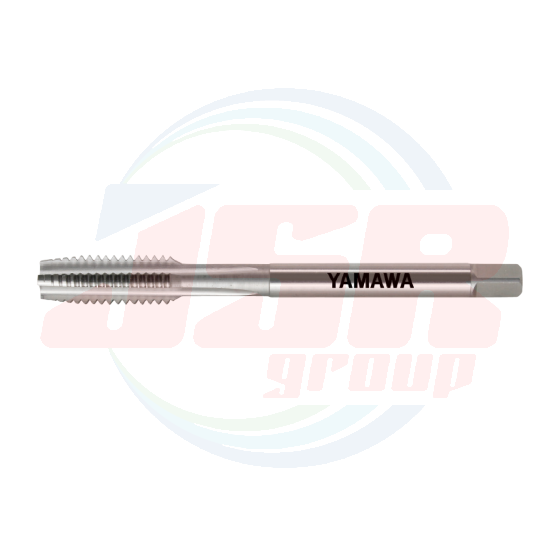

HT-TRI (Tripod Threads) | Hand Taps for Tripod Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 272.90
พร้อมส่ง
SKU
HT-TRI (Tripod Threads)
- Hand Tap for camera tripod threads. Its thread size is oversized.
Specification
Tapping Speeds depending on Materials
Segment：1A
|
Size |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Tripod Threads |
|||||||||||
|
1/4-20 |
TYU04N0KEB3 |
3P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
1/4-20 |
TYU04N0KEBA |
1.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |

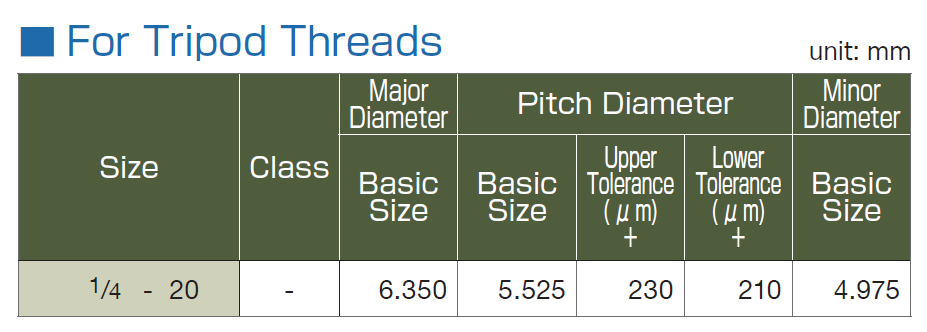

Specifications of threads for mounting a camera on a tripod as shown in the picture on the right.

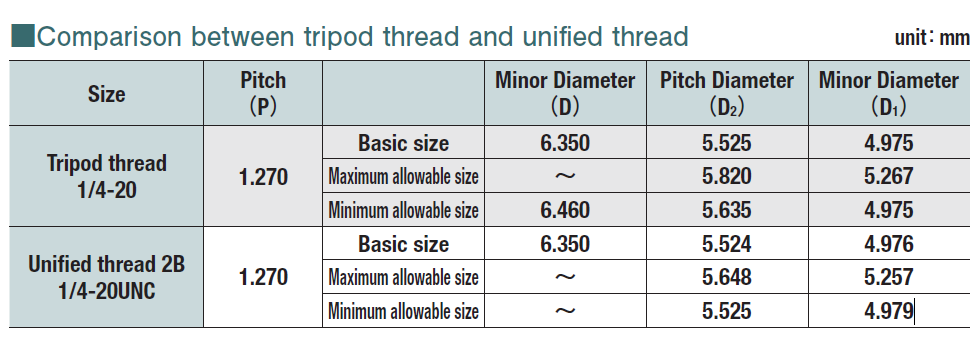

The tripod thread is larger by about 0.14 mm than the unified thread in terms of the pitch diameter tolerance of internal threads, while their thread shapes are the same.
