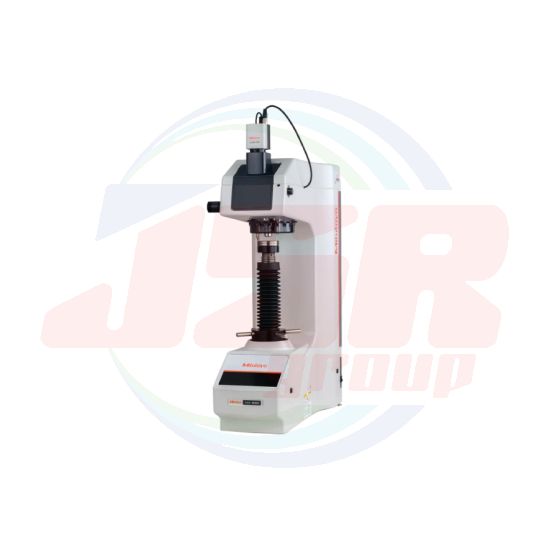

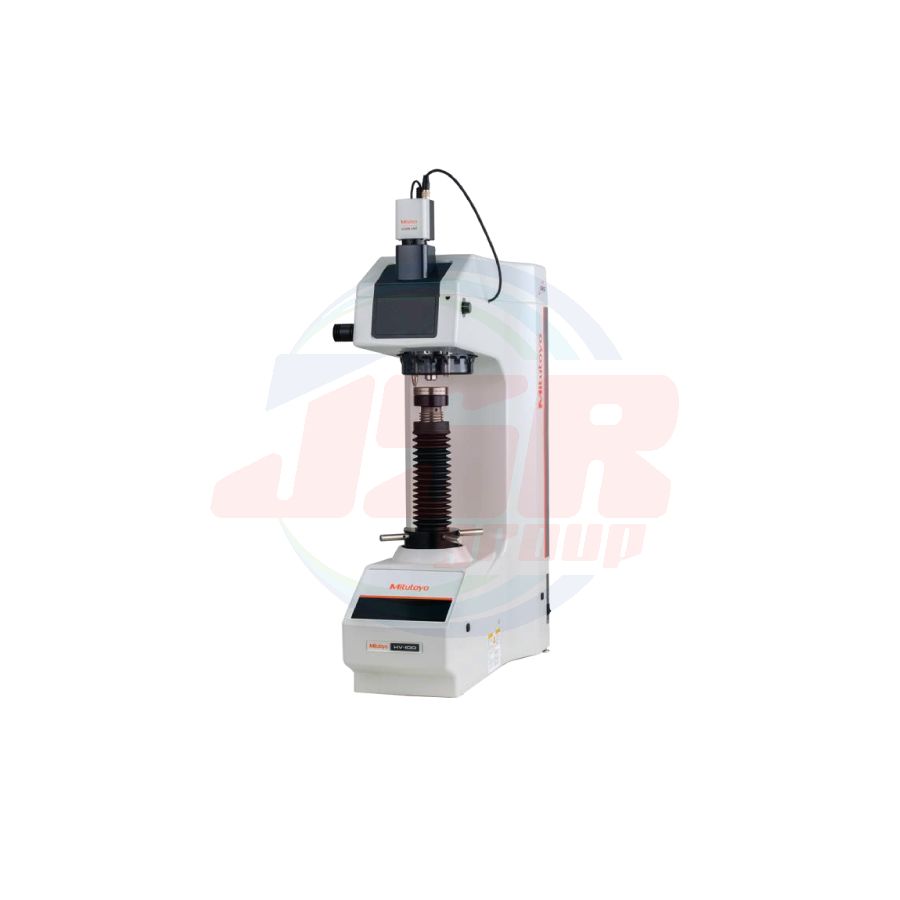

Vickers Hardness Testing Machine (Automatic Type)
HV-110 / 120
Advanced model for carrying out not only Vickers hardness tests, but also Knoop, Brinell and Kc fracture toughness measurement. Choose from four types of system.
Applicable standards: JIS B7725 / ISO 6507-2
Test force: 9.807 - 490.3 N (1 - 50 kgf), 2.942 - 294.2 N (0.3 - 30 kgf)
Model | HV-110 | HV-120 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display unit | metric | inch/mm | metric | metric | inch/mm | metric | ||||||||||||||||||||||||||||||||||||||||||||||||||
Operation | Manual | Manual | System | Manual | Manual | System | ||||||||||||||||||||||||||||||||||||||||||||||||||
Applicable standards | JIS B7725/ISO 6507-2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Testable hardness | Vickers hardness (HV)/Knoop hardness (HK)/Fracture toughness (Kc)/Brinell hardness (HB) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Test force |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indenter approach speed | 60 μm/s, 150 μm/s | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specimen | Maximum dimensions | Depth: 170 mm Height: 210 mm (Manual main unit and flat anvil)/132 mm (System main unit+motorized XY stage unit 50 mm+AF stage) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. loading capacity | System A, B: 20 kg System C: 7 kg System D: 4 kg | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical section | Optical system | Infinitely corrected optical system, 3-port objective lens switching method | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination | Light source | White LED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Aperture diaphragm | Variable | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard objective lens |
Lens | MH Plan 10X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working distance | 11.8 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Real field of view and imaging range | System A: Real field of view: 1.4 mm (When the length-measuring microscope is used) System B, C, D: Imaging range: 0.590 (H) mm×0.443 (V) mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Measuring microscope (Ocular) | System A: Length-measuring microscope with integrated encoder and eyepiece (10X) System B, C, D: Factory-installed options | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mechanism | Test time | Test force loading time | 5 to 999 s Can be set in 1 s increments. | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Loading device |
Test force control | 5 to 999 s Can be set in 1 s increments. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Test force switching | Electromagnetic (voice coil) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Turret | Drive method | Motor drive (Can be operated by manual) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation method | System A: Touch panel System B: AVPAK-10/20 System C/D: AVPAK-10/20 and Remote Control Box | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number of turret ports | Indenter shaft unit: Up to one can be installed (including the standard Vickers indenter shaft unit already installed); Objective lens unit: Up to three can be installed (including the standard 10X objective lens already installed) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Data output | RS-232C, Digimatic, USB2.0/Type A (only mounted in system A for USB memory), USB2.0/Type B (for PC communication) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power supply/Power consumption | AC100 V 50/60 Hz (Manual main unit: 24 W System main unit: 22 W) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum specimen dimensions/Maximum load capacity |
System A | Approx. 307 (W) ×696 (D) ×781 (H) mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
System B, C, D | Approx. 307 (W) ×627 (D) ×875 (H) mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mass | Common for all system | HV-110: 60 kg (Manual model main unit), 59 kg (System model main unit) HV-120: 58 kg (Manual model main unit), 57 kg (System model main unit) |
Note: The AVPAK-20 software package is not for use within, or export to, the United States of America. The AVPAK-10 software package is for the United States of America.
