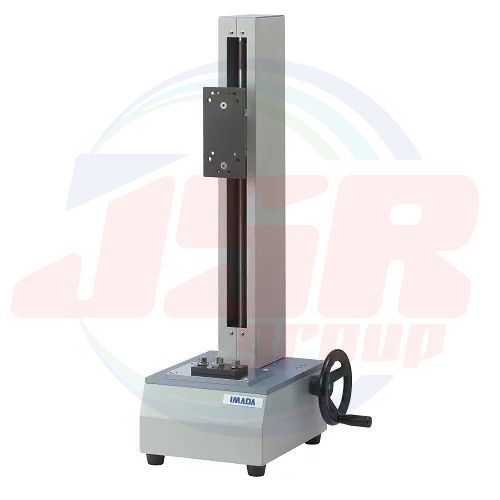

Manual Test Stand HV series is standard type with 500N to 3000N capacity. It is ideal for measurement of large or extensible samples due to the long stroke.
Features
- Realizes precision measurement with constant testing position
- Ideal for measurement of larger or extensible samples due to the longer stroke
- Allows stable measurement of tension and compression testing due to the handle operation
- Handles a wide range of testing applications to meet your testing requirements with options such as -S (length scale)
Specifications
| Order No. | HV-1000N |
| Capacity | 1000N(100kgf) |
| Max. sample height*1 | Approx. 375mm |
| Travel of a mounted force gauge | 1.2mm / a complete turn of its handle |
| Function | Mechanical stopper |
| Feed Amount | 1.2mm / 1 turn |
| Size | Approx. W305 x D275 x H730mm |
| Weight | Approx.18kg |
| Gauges that can be combined*2 | Popular, standard, high capacity model |
| *Load cells cannot be combined. | |
| Accessory | Grip mounting adaptor GF-2 (M10•M6 thread) |
| Option | Length meter, Long stroke |
*1 Max. sample height refers to the distance between the table and the tip of ZT series force gauge’s measuring shaft
when the head is at the top. (HV-500NII/1000N: up to 1000N
model of ZT series, HV-3000N: with over 2500N model of
ZT series is mounted.)
*2 Please contact us if you would like to combine other force gauges or load cells with
the test stand.
