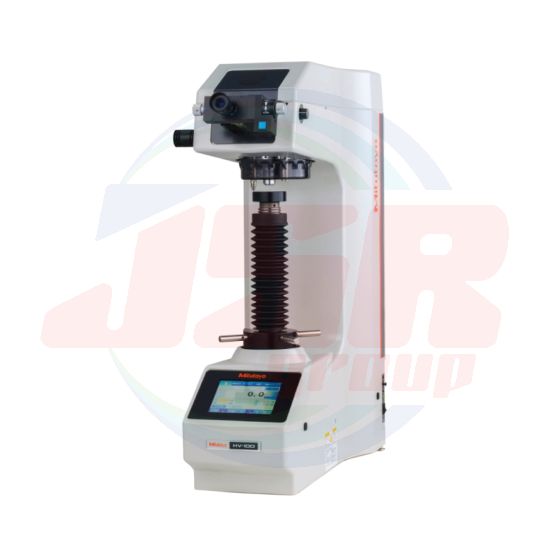

Vickers Hardness Testing Machine
HV-110A / 120A
All-in-one model with simple touch-panel operation
Features
• Touch-panel operation (Including test force conversion)
• Measurement of indentation dimensions using a measuring microscope
• Positioning using a manual XY stage (optional)
Applicable standards: JIS B7725 / ISO 6507-2
Test force: 98.07 - 9,807 mN (10 - 1,000 gf), 0.4903 - 19,610 mN (0.05 - 2,000 gf)
| System configuration | System A | |
| Functions | Testing action | Single point |
| Measuring indentations | Measuring microscope | |
| Camera (for observing and measuring indentations) |
CMOS, 1,230,000 pixels*¹ |
|
| Test-point positioning | Manual XY stage*² | |
| Focusing | Manual | |
| Remote box | ̶ | |
| Operating the main unit | Touch panel | |
*1 When a TV camera unit is used (pixel count of the camera itself: 1,280,000)
*2 Manual XY stage (optional) can be supplied.
Touch-panel display for System A
Easy-to-understand graphic display enables intuitive operation. Functions for converting values and compensating for curved surfaces, as well as a
test condition guiding function are all provided as standard features. (Installed in the System A main unit)
Specifications: TV camera unit
System A
| Item | Specification |
| Order No. | 810-456-20*¹ 810-454-20*² |
| Camera | Imaging device: 1/3.2-inch CMOS (1,230,000 pixels) |
| Color LED screen magnification | When using a 10X objective lens: Approx. 200X |
| When using a 50X objective lens: Approx. 1000X | |
| When using a 100X objective lens: Approx. 2000X | |
| Color LED monitor | Power supply: 100-230 V AC, 50/60 Hz |
| Power consumption: DC12 V / 1.0 A: 9 W | |
| Screen size: 8 inch | |
| External dimensions: 202 (W) ×29.2 (D) ×175.8 (H) mm | |
| Mass: 1.7 kg |
*1 Factory-installed options
*2 Units separately available. They need to be assembled and adjusted by field service engineers.
Specifications: Manual stage unit
Systems A and B
| Item | Specification | |
| Order No. | 810-420 | 810-423 |
| Type | Manual XY 25×25 |
Manual XY 50×50 |
| XY range | 25×25 mm | 50×50 mm |
| Table size | 100×100 mm | 130×130 mm |
| Minimum display unit | 0.001 mm | |
| Dimensions | 221 (W) ×221 (D) ×37 (H) mm | 305 (W) ×305 (D) ×49 (H) mm |
| Mass | 2.5 kg | 6.6 kg |
Specifications
| Model | HV-110 | HV-120 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display unit | metric | inch/mm | metric | metric | inch/mm | metric | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Operation | Manual | Manual | System | Manual | Manual | System | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Applicable standards | JIS B7725/ISO 6507-2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Testable hardness | Vickers hardness (HV)/Knoop hardness (HK)/Fracture toughness (Kc)/Brinell hardness (HB) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Test force |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Indenter approach speed | 60 μm/s, 150 μm/s | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Specimen | Maximum dimensions | Depth: 170 mm Height: 210 mm (Manual main unit and flat anvil)/132 mm (System main unit+motorized XY stage unit 50 mm+AF stage) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. loading capacity | System A, B: 20 kg System C: 7 kg System D: 4 kg | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical section | Optical system | Infinitely corrected optical system, 3-port objective lens switching method | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination | Light source | White LED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Aperture diaphragm | Variable | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard objective lens |
Lens | MH Plan 10X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working distance | 11.8 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Real field of view and imaging range | System A: Real field of view: 1.4 mm (When the length-measuring microscope is used) System B, C, D: Imaging range: 0.590 (H) mm×0.443 (V) mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Measuring microscope (Ocular) | System A: Length-measuring microscope with integrated encoder and eyepiece (10X) System B, C, D: Factory-installed options | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mechanism | Test time | Test force loading time | 5 to 999 s Can be set in 1 s increments. | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Loading device |
Test force control | 5 to 999 s Can be set in 1 s increments. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Test force switching | Electromagnetic (voice coil) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Turret | Drive method | Motor drive (Can be operated by manual) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operation method | System A: Touch panel System B: AVPAK-10/20 System C/D: AVPAK-10/20 and Remote Control Box | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of turret ports | Indenter shaft unit: Up to one can be installed (including the standard Vickers indenter shaft unit already installed); Objective lens unit: Up to three can be installed (including the standard 10X objective lens already installed) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Data output | RS-232C, Digimatic, USB2.0/Type A (only mounted in system A for USB memory), USB2.0/Type B (for PC communication) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power supply/Power consumption | AC100 V 50/60 Hz (Manual main unit: 24 W System main unit: 22 W) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum specimen dimensions/Maximum load capacity |
System A | Approx. 307 (W) ×696 (D) ×781 (H) mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| System B, C, D | Approx. 307 (W) ×627 (D) ×875 (H) mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mass | Common for all system | HV-110: 60 kg (Manual model main unit), 59 kg (System model main unit) HV-120: 58 kg (Manual model main unit), 57 kg (System model main unit) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Note: The AVPAK-20 software package is not for use within, or export to, the United States of America. The AVPAK-10 software package is for the United States of America.
