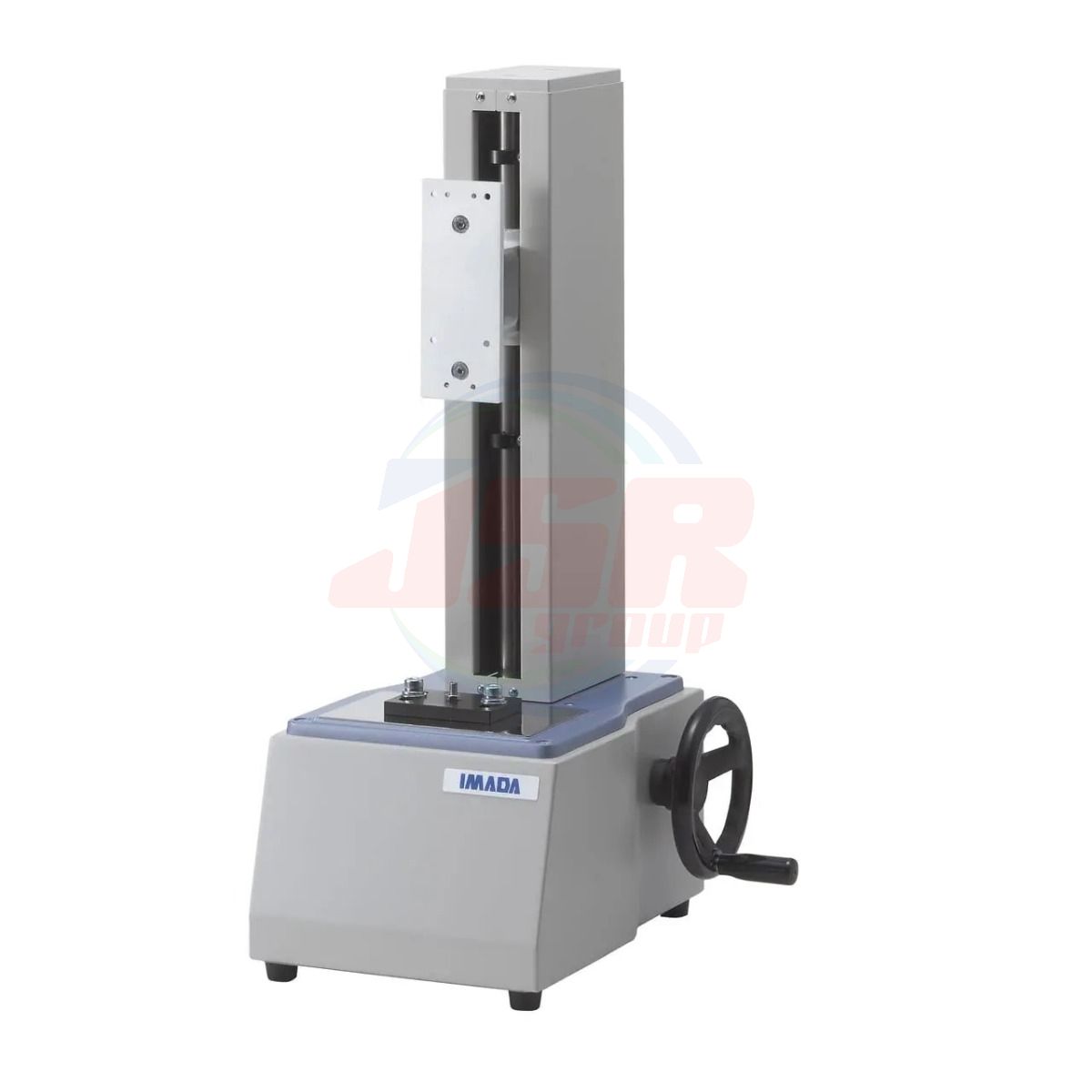

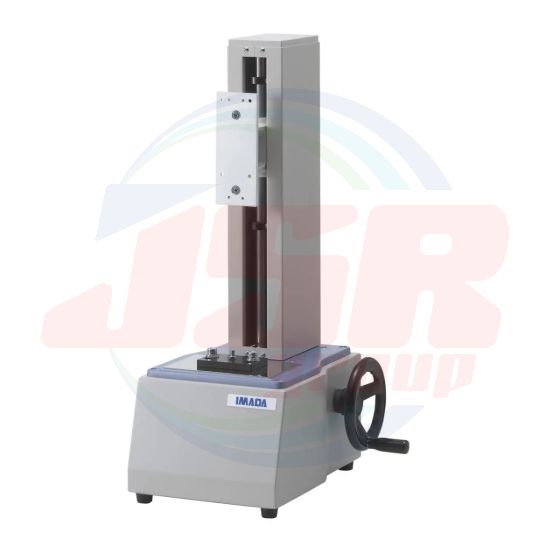

Manual Test Stand HV series is standard type with 500N to 3000N capacity. It is ideal for measurement of large or extensible samples due to the long stroke.
Realizes precision measurement with constant testing position
Ideal for measurement of larger or extensible samples due to the longer stroke
Allows stable measurement of tension and compression testing due to the handle operation
Handles a wide range of testing applications to meet your testing requirements with options such as
-S (length scale)
Specifications
Order No.
HV-500N
HV-1000N
HV-3000N
Capacity
500N (50kgf)
1000N(100kgf)
3000N(300kgf)
Max. sample height*1
Approx. 240mm
Approx. 375mm
Approx. 375mm
Travel of a mounted force gauge
2mm / a complete turn of its handle
1.2mm / a complete turn of its handle
0.6mm / a complete turn of its handle
Function
Mechanical stopper
Feed Amount
2mm / 1 turn
1.2mm / 1 turn
0.6mm / 1 turn
Size
Approx. W327 x D309 x 597.5mm
Approx. W305 x D275 x H730mm
Approx. W355 x D310 x H744mm
Weight
Approx.10kg
Approx.18kg
Approx. 24kg
Gauges that can be combined*2
Popular and standard model
Popular, standard, high capacity model
*Load cells cannot be combined.
Accessory
Grip mounting adaptor GF-1 (M6 thread)
Grip mounting adaptor GF-2 (M10•M6 thread)
Option
Length meter, Long stroke
Length meter
*1 Max. sample height refers to the distance between the table and the tip of ZT series force gauge’s measuring shaft
when the head is at the top. (HV-500NII/1000N: up to 1000N model of ZT series, HV-3000N: with over 2500N model of
ZT series is mounted.) *2 Please contact us if you would like to combine other force gauges or load cells with
the test stand.
