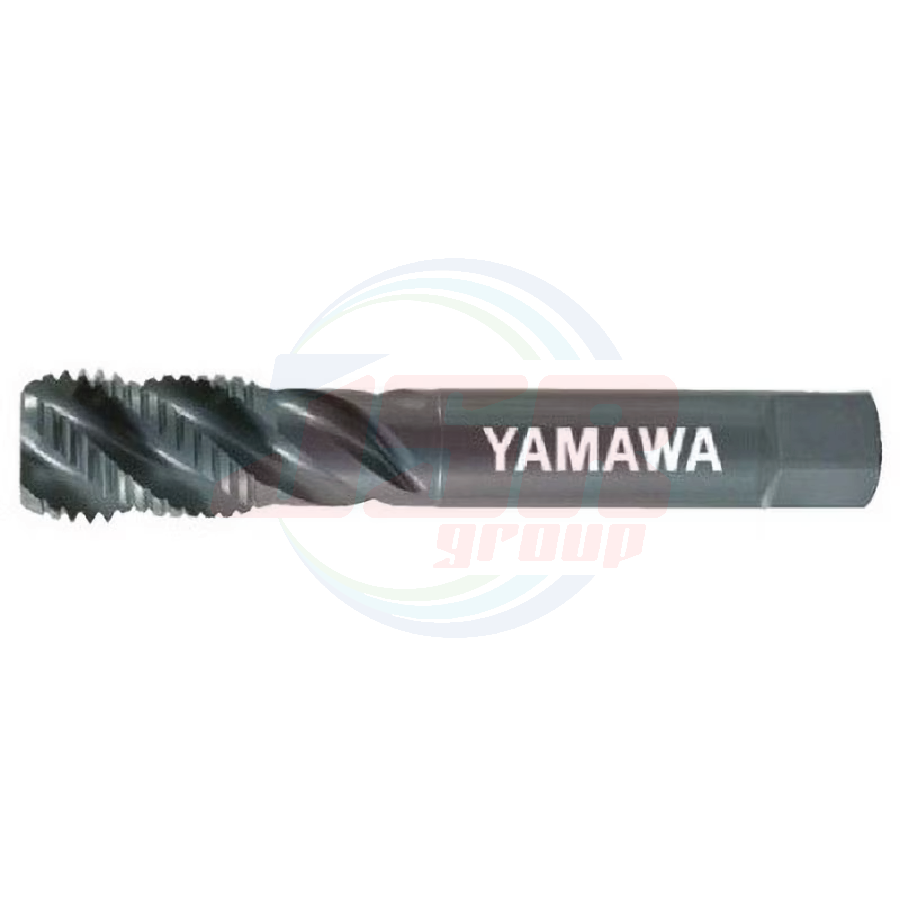

HVSP24X3.0-ZP (1112301167) | Z-PRO Hybrid Value Spiral Fluted Taps for Zinc Plating| YAMAWA
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
YAM-HVSP24X3.0-ZP-0.2
QTY:
1
- We have a standard line-up of optimum tap classes for tapping internal threads before zinc plating.
- We have commercialized three types of oversize tap classes in great market demand for different purposes: +0.1 mm, +0.2 mm, and +0.3 mm.
- Specifications are based on HVSP (Hybrid Value Spiral Fluted Taps), so you can use them for various workpiece materials and machines.
- Stable tapping without chipping can be achieved in both vertical and horizontal tapping.
| File PDF |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | M24×3 (1112301167) |
| Model | HVSP ZP |
| Size | M24X3 |
| Class | P5+0.2 |
| Chamfer | 2.5P |
| Overall length (L) | 160 |
| Thread length (ℓ) | 37 |
| Thread + Neck length (ℓn) | - |
| Shank length (ℓs) | 82 |
| Shank dia. (Ds) | 19 |
| Size of Square (K) | 15 |
| Length of square (ℓk) | 18 |
