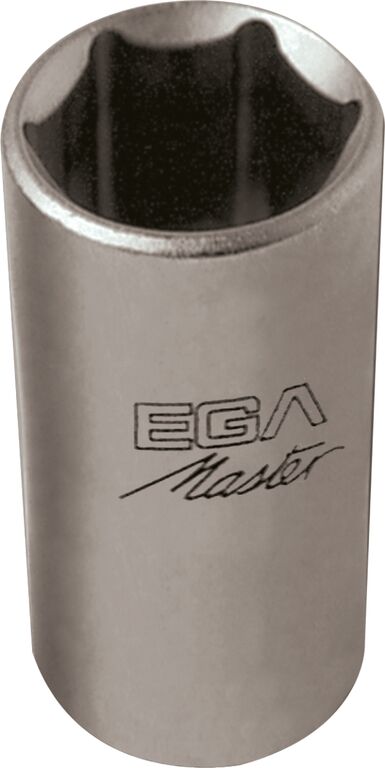

EGA Master has developed a new range of stainless steel tools to provide solutions on safety and technologically advanced applications.
420* stainless steel contributes to avoid contaminations, rusting and complying with clean room environment requirements.
1.Available in 1/4”, 3/8”, 1/2”, and 3/4” drive square ranges for manual sockets.
2. Available in both metric (mm) and imperial (inch) sizes, with 6-point and 12-point configurations
3. Avoid contamination in other materials and the tendency to rusting

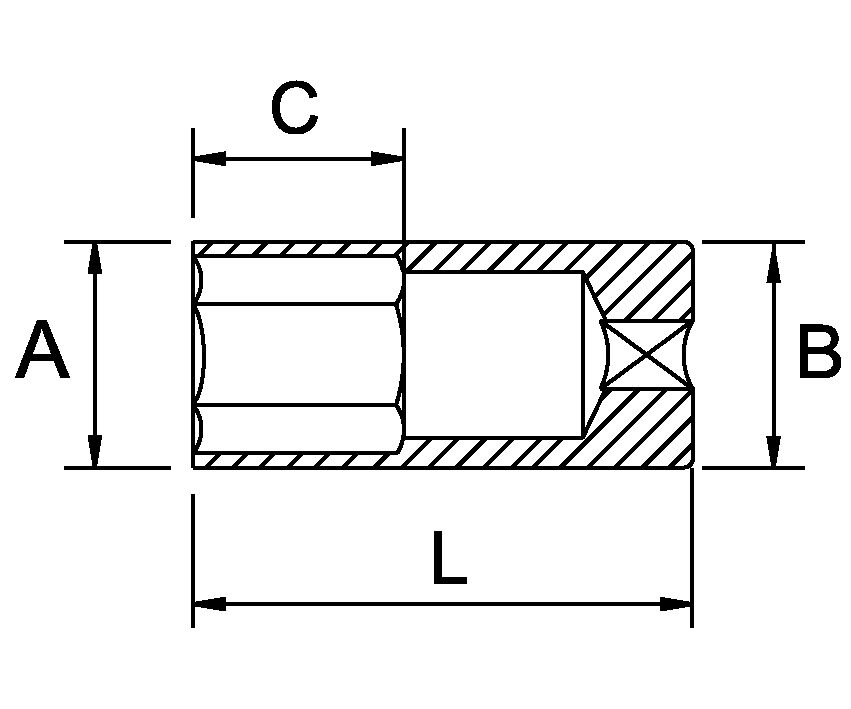

code | AF inch | L(mm) | A(mm) | B(mm) | C(mm) | Pt | g |
38301 | 6 | 60 | 18 | 11 | 13 | 6 | 90 |
38302 | 7 | 12 | |||||
38303 | 8 | 13 | |||||
38304 | 9 | 14 | |||||
38305 | 10 | 20 | 15 | 95 | |||
38306 | 11 | 16 | 100 | ||||
38307 | 12 | 18 | 105 | ||||
38308 | 13 | 19 | 110 | ||||
38309 | 14 | 21 | 20 | ||||
38310 | 15 | 22 | 21 | 20 | 115 | ||
38311 | 16 | 23 | 120 | ||||
38312 | 17 | 24 | 24 | 125 | |||
38313 | 19 | 26 | 140 | ||||
38314 | 20 | 27 | 145 | ||||
38315 | 22 | 30 | 25 | 22 | 150 |
แบรนด์สินค้า | EGA MASTER |
---|
