INSERT for TR4F
■ インサート Inserts
| P | Carbon steels |  |
|
|
：General cutting, First recommendation  ：General cutting,Second recommendation |
|||||
| M | SUS, etc. | |
||||||||
| K | FC・FCD Cast irons | |
|
|
||||||
| H | Hardened steels |
|
|
|||||||

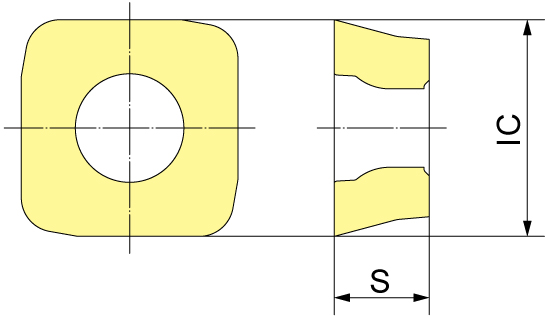

| Item code | Tolerance class |
AJ-Coating | JS-Coating | GX-Coating | Size (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| JP4105 | JP4120 | JM4160 | JS4160 | JS4060 | GX2140 | IC | S | |||
| SDNW120520TR | N | ● | ● | ● | ★ | △ | ● | 12.7 | 5.56 | |
| SDNW120520TR-P | ●※1 | |||||||||
| SDNW150525ZTR | ● | ● | ● | ★ | △ | ● | 15.875 | |||
| SDMT120520TR | M | ● | ● | ★ | △ | ● | 12.7 | 5.76 | ||
| SDMT120520ER-LF | ★ | ★ | ★ | 12.7 | 5.596 | |||||
| SDMT150525ZTR | ● | ● | ★ | △ | ● | 15.875 | 5.61 | |||
| SDMT150525ZER-LF | ★ | ★ | ★ | 15.875 | 5.596 | |||||
※ 1： Can be used to process the precipitation hardening stainless steel.
【Note】 Please note that the GX Coating and JS Coating do not cause a reaction in conductive touch sensors
● ： Stocked items. △ ： The sale ends when all the stock is out. No mark： Contact with our sales department.
