Inside Micrometers SERIES 145 — Caliper Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 4,601.00
พร้อมส่ง
SKU
IMP-SERIES-145
• This is an analog version of the SERIES 345 calliper type micrometer for inside measurement.
• Carbide-tipped measuring faces. • Equipped with a constant measuring-force device.
• An optional reference gage, such as Gauge Block Accessory Set, CERA Inside Micro Checker (more than 25 mm) or a setting ring (nominal size below 300 mm), is required for accurately setting the micrometer before measuring.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Graduation (mm) | Maximum permissible error J MPE (μm | Jaw | Mass (g) |
| 145-185 | 5 - 30 | 0.01 | ±5 | Pin | 130 |
| 145-186 | 25 - 50 | ±6 | Anvil | 140 | |
| 145-187 | 50 - 75 | ±7 | 160 | ||
| 145-188 | 75 - 100 | ±8 | 180 | ||
| 145-189 | 100 - 125 | ±9 | 210 | ||
| 145-190 | 125 - 150 | 230 | |||
| 145-191 | 150 - 175 | ±10 | 250 | ||
| 145-192 | 175 - 200 | 270 | |||
| 145-217 | 200 - 225 | ±11 | 310 | ||
| 145-218 | 225 - 250 | 330 | |||
| 145-219 | 250 - 275 | ±12 | 350 | ||
| 145-220 | 275 - 300 | 370 | |||
| 145-221 | 300 - 325 | ±16 | 390 | ||
| 145-222 | 325 - 350 | 410 | |||
| 145-223 | 350 - 375 | 430 | |||
| 145-224 | 375 - 400 | 450 | |||
| 145-225 | 400 - 425 | ±21 | 470 | ||
| 145-226 | 425 - 450 | 490 | |||
| 145-227 | 450 - 475 | 510 | |||
| 145-228 | 475 - 500 | 530 |

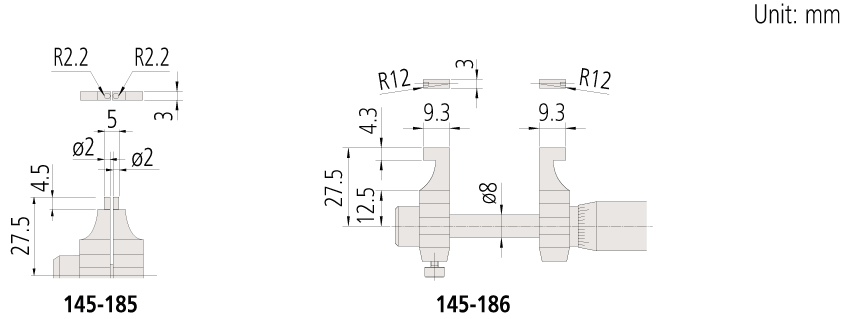

Note: The minimum pitch circle measurement is ø5 mm with pin type (145-185)
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
