INT-S-NPT (American Pipe Threads)

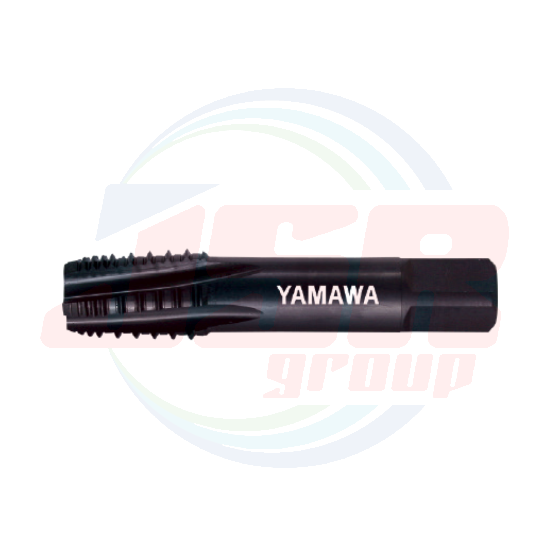

- INT-S-NPT is the tap with short thread portion, and, having low left-hand spiral flutes and having every other thread ground off, reduces cutting torque. INT-S-NPT is suitable for such sticky materials as stainless steels and chrome molybdenum steels.
Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For American Pipe Threads |
||||||||||||
|
1/16-27 NPT |
ANSI G |
TISNT01L |
3P |
7.770 |
54 |
14 |
10.1 |
8 |
6 |
9 |
3 |
1 |
|
1/8-27 NPT |
ANSI G |
TISNT02L |
3P |
10.117 |
55 |
16.5 |
10.5 |
8 |
6 |
9 |
5 |
2 |
|
1/4-18 NPT |
ANSI G |
TISNT04O |
3P |
13.426 |
62 |
19.5 |
12.5 |
11 |
9 |
12 |
5 |
2 |
|
3/8-18 NPT |
ANSI G |
TISNT06O |
3P |
16.866 |
65 |
21 |
14 |
14 |
11 |
14 |
5 |
2 |
|
1/2-14 NPT |
ANSI G |
TISNT08Q |
3P |
20.980 |
80 |
27 |
17 |
18 |
14 |
17 |
5 |
2 |
|
3/4-14 NPT |
ANSI G |
TISNT12Q |
3P |
26.325 |
85 |
29 |
19 |
23 |
17 |
20 |
5 |
2 |
|
1 -11 1/2 NPT |
ANSI G |
TISNT16T |
3P |
32.934 |
95 |
35 |
22 |
26 |
21 |
24 |
5 |
2 |
|
1 1/4-11 1/2 NPT |
ANSI G |
TISNT20T |
3P |
41.689 |
105 |
37.5 |
24.5 |
32 |
26 |
30 |
5 |
2 |
|
1 1/2-11 1/2 NPT |
ANSI G |
TISNT24T |
3P |
47.760 |
110 |
38.5 |
25.5 |
38 |
29 |
32 |
7 |
2 |
|
2 -11 1/2 NPT |
ANSI G |
TISNT32T |
3P |
59.797 |
120 |
42.5 |
27.5 |
46 |
35 |
38 |
7 |
2 |
