INTERFACE UNIT
Interface Unit
I/F Module
Four types of interfaces are available so you can select the right one to meet your production line requirements.
The controller design enables insertion of a module without changing the layout.
Specifications
| Order No. | 02AGQ300 | 02AGQ370 | |
| Model | LSM-EI-A | LSM-EC-A | |
| Communication standards | EtherNet/IP | EtherCAT | |
| Interface | LED | NETWORK STATUS Indicator: Dual Color LED1 (red/green) | RUN Indicator: Single Color LED1 (green) |
| MODULE STATUS Indicator: Dual Color LED1 (red/green) | ERROR Indicator: Single Color LED1 (red) | ||
| RJ45 connector | 2 channels | ||
| Ethernet communication |
Communication port | RJ45 × 2 | |
| Communication speed | 100 Mbps Full duplex | ||
| Cable used | Cat.5e or more STP cable | ||
| Order No. | 02AGQ350 | |

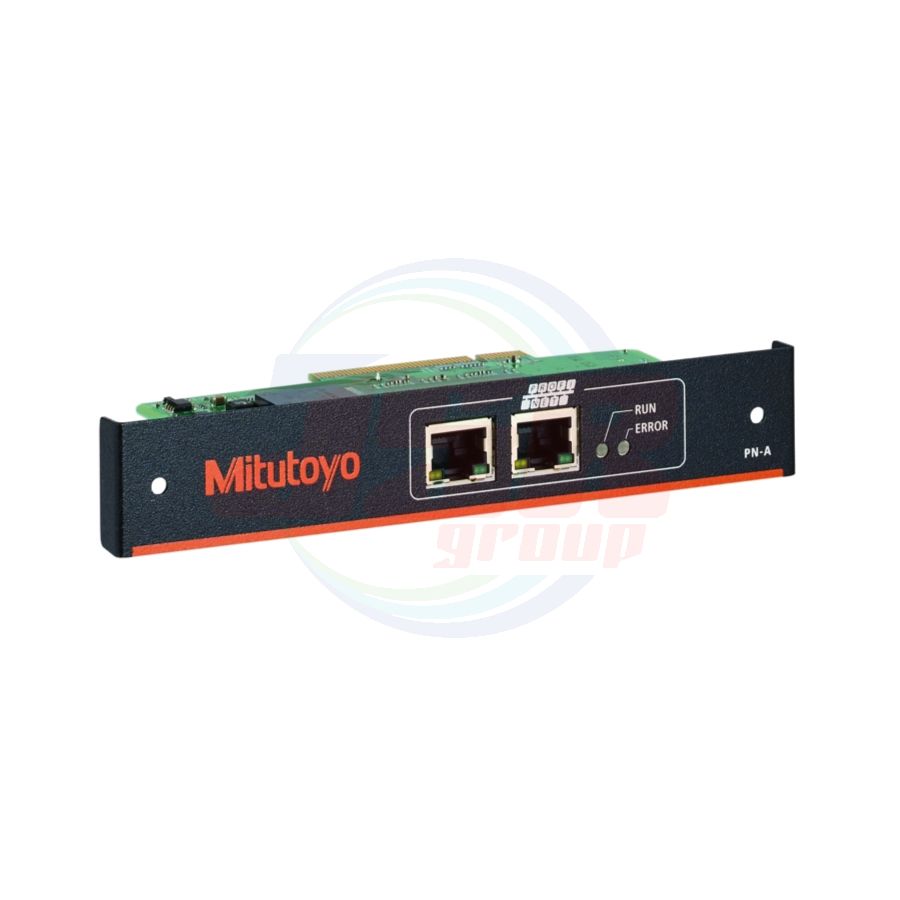

| Model | LSM-PN-A | |
| Communication standards | PROFINET | |
| Interface | LED | RUN Indicator: Dual Color LED1 (red/green) |
| ERROR Indicator: Dual Color LED1 (red/green) | ||
| RJ45 connector | 2 channels | |
| Ethernet communication |
Communication port | RJ45 × 2 |
| Communication speed | 100 Mbps Full duplex | |
| Cable used | Cat.5e or more STP cable | |
| PROFINET function | PROFINET RT | Conformance class B PROFINET device Media redundancy protocol (MRP) client Multicast provider and subscriber |
| Min. cycle time | 2 msec | |
| Maximum number of connections (ARs*1) |
2 | |
| Number of CRs*2 per connected controller |
For cyclic data: 2, For parameter setting: 1 | |
*1 AR: Application Relation, Type of AR: Device Access
*2 CR: Communication Relation
| Order No. | 02AGQ390 | |
| Model | LSM-CC-A | |
| Communication standards | CC-Link IE TSN | |
| Interface | LED | D Link: Dual Color LED1 (red/green) |
| ERROR: Single Color LED1 (red) | ||
| RJ45 connector | 2 channels | |
| Ethernet communication |
Communication port | RJ45 × 2 |
| Communication speed | 100 Mbps Full duplex | |
| Cable used | Cat.5e or more STP cable | |
| CC-Link IE TSN function |
CC-Link IE TSN | Class A remote station |
| Min. cycle time | 1 msec | |
Common specifications
| Operating environment | Temperature: 0 °C to 50 °C, Humidity: 20%RH to 85%RH (non-condensing) | |
| Storage temperature | Temperature: -10 °C to 50 °C, Humidity: 35%RH to 85%RH (non-condensing) | |
| CE Marking / UKCA Marking | EMC Directive: EN IEC 61326-1, Immunity test requirements: Clause 6.2 Table 2 Emission limit: Class A RoHS Directive: EN IEC 63000 |
|
