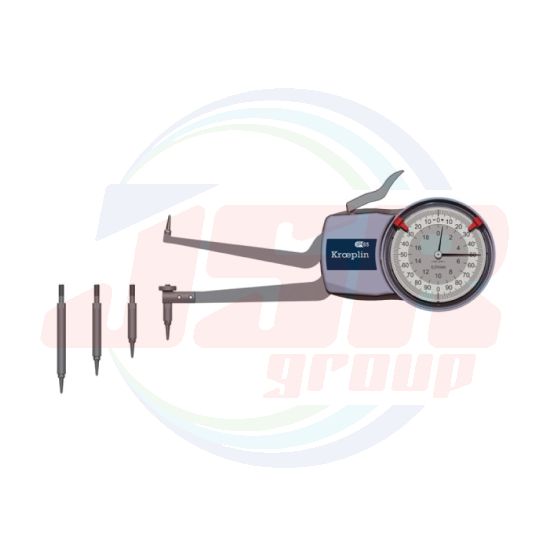

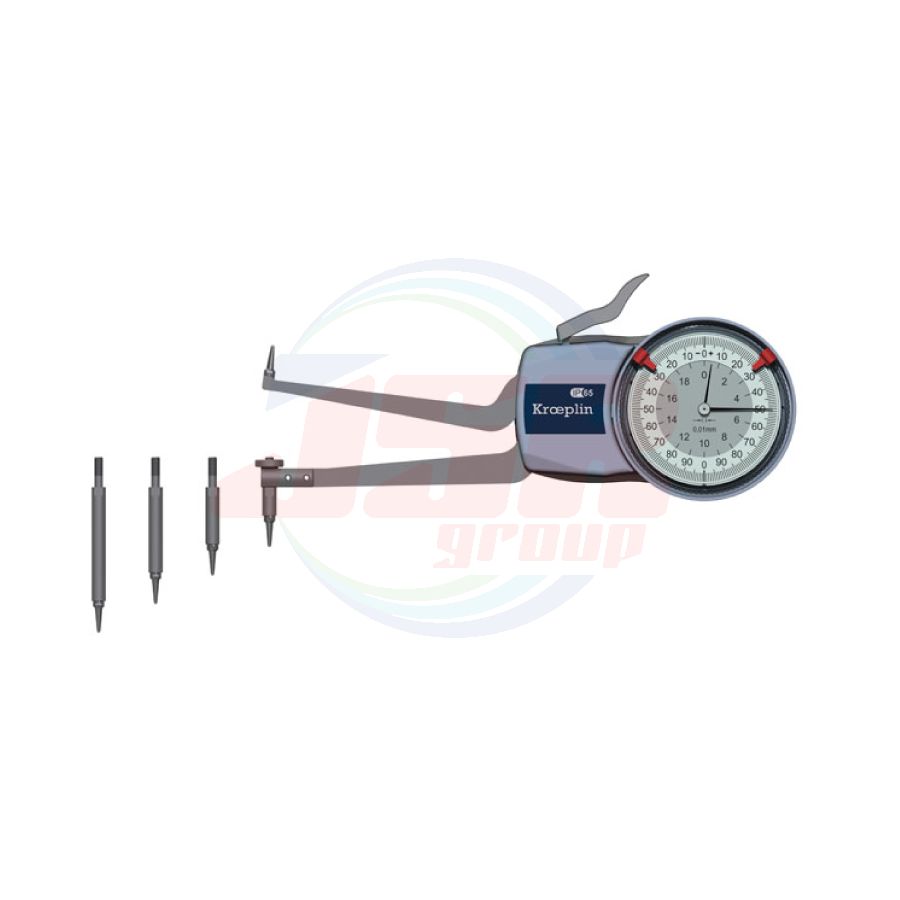

Internal comparison measurement
Application range from 50 to 430 mm
| Order No. | Measuring span Mes | Measuring range Meb | Range of indication Azb | Numerical interval Zw Scale interval Skw |
Permissible errors G | Repeatability limit r | Measuring force Fmin | Measuring force Fmax | Weight | Protection class | Measuring contact movable Hb |
Measuring contact fixed Hf |
Type of measuring contact |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | (N) | (g) | (mm) | (mm) | (mm) | ||
| H2M50 | 20 | 50-100 | 49.5-100.5 | 0.01 | 0.03 | 0.015 | 1.1 | 1.6 | 220 | IP65 | 12.0 | variable | Ball Ø 1 |
| H2M90 | 20 | 90-140 | 89.5-140.5 | 0.01 | 0.03 | 0.015 | 1.1 | 1.6 | 230 | IP65 | 12.0 | variable | Ball Ø 1 |
| H2M130 | 20 | 130-180 | 129.5-180.5 | 0.01 | 0.03 | 0.015 | 1.1 | 1.6 | 240 | IP65 | 12.0 | variable | Ball Ø 1 |
| H4M180 | 50 | 180-310 | 179.5-310.5 | 0.05 | 0.10 | 0.05 | 0.9 | 1.9 | 420 | IP65 | 21.0 | variable | Ball Ø 2 |
| H4M300 | 50 | 300-430 | 299.5-430.5 | 0.05 | 0.15 | 0.05 | 0.9 | 1.9 | 450 | IP65 | 21.0 | variable | Ball Ø 2 |
| แบรนด์สินค้า | KROEPLIN |
|---|---|
| Application range | from 50 to 430 mm |
| Measuring contacts | Measuring capacity | ||||
 |
 |
||||
| Ball Ø 1.0 mm Ball Ø 2.0 mm |

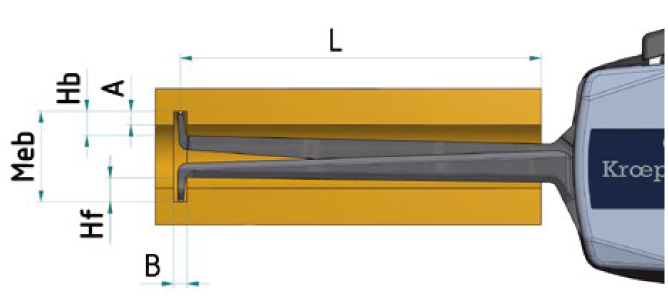

Meb Measuring range A Groove depth B Groove width Hb Measuring contact movable Hf Measuring contact fixed L Measuring depth |
||||
| Order No. | Groove depth A max. | Groove width B min. | Measuring depth L max. | Picture | Electronic E Mechanical M |
| (mm) | (mm) | (mm) | |||
| H2M50 | 8.3 | 1.5 | 85 | [5] | M |
| H2M90 | 8.3 | 1.5 | 85 | [5] | M |
| H2M130 | 8.3 | 1.5 | 85 | [5] | M |
| H4M180 | 8.3 | 2.5 | 170 | [5] | M |
| H4M300 | 8.3 | 2.5 | 170 | [5] | M |
