Internal Dial Caliper Gauge
(Fixed contact point)
• These gauges are designed for use in measuring deep internal diameter of bores of castings etc, and for internal reading in fabrications. Clearance has been provided for use in recessed bores. The convenient retraction lever allows one-hand operation.
| Order No. | Graduation (mm) |
Measuring Range(mm) |
Indication Error(μm) |

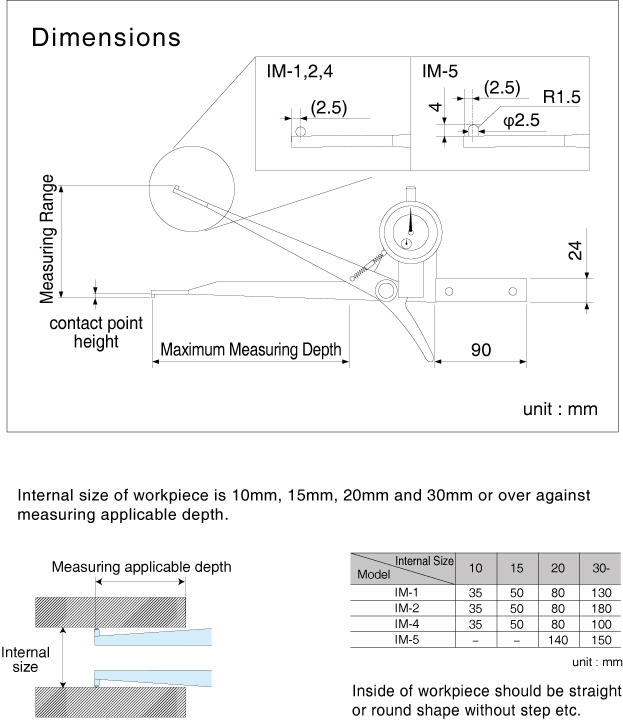

Maximum Measuring Depth(mm) |
Contact Point Height(mm) |
Contact Point Shape(mm) | Measuring Force(N) |
Weight (g) |
| IM-1 | 0.1 | 10-90 | ±0.2 | 125 | 2 | φ2.0 | 5 or less | 500 |
| IM-2 | 0.1 | 10-90 | ±0.2 | 180 | 2 | φ2.0 | 5 or less | 620 |
| IM-4 | 0.01 | 10-30 | ±0.03 | 100 | 2 | φ2.0 | 5 or less | 500 |
| IM-5 | 0.01 | 20-40 | ±0.03 | 150 | 4 | R1.5/φ2.5 | 5 or less | 600 |
Usage Example
Internal Caliper Gauge
|
Internal dimension of deep position can be easily measured. |
Groove diameter of groove for "O" ring can be easily measured. (IM-808,IM-880 etc) |
Measurement evading from screw, nuts etc. can be made. |
 |
 |
 |
