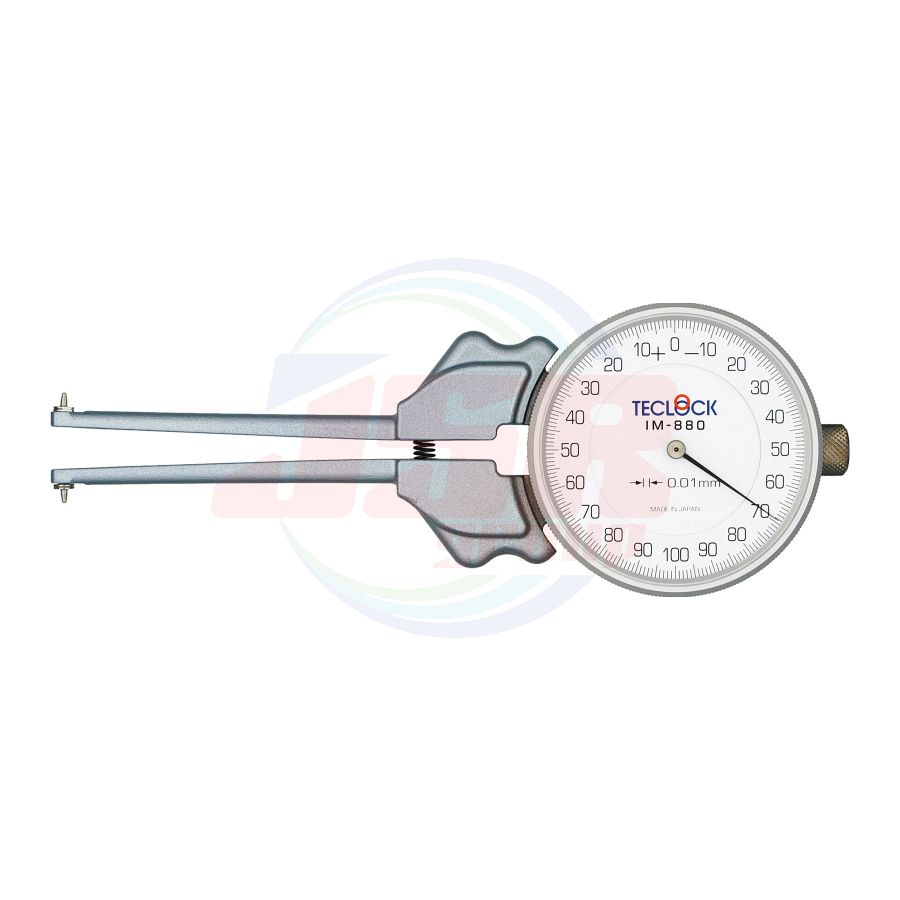

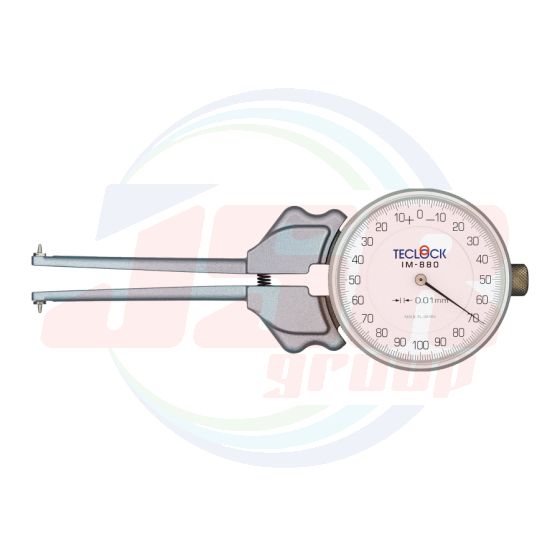

Internal Dial Caliper Gauge
(Modifying spare contact point)
• Internal caliper gauge to measure internal diameter of cylindrical workpiece and recessed groove diameter. It can measure groove diameter of "O" ring by modifying spare contact point.
• Set dimension within 1mm (indication range 2mm) can be comparatively measured (880 series) by alternatively using auxiliary spare contact point in accordance with measured dimension.
• Please set standard dimension within measuring range with micrometer or ring gauge.

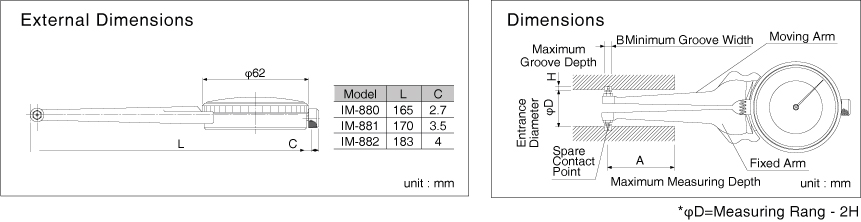

| Order No. | Graduation (mm) |
Measuring Range (mm |
Indicating Range (mm) |
Indication Error (μm) |
Measuring Force (N) |
Weight (g) |
Spare Contact Point | Maximum Measuring Depth A (mm) |
Groove Depth H (mm) |
Minimum Groove Width B (mm) |
|
| Code No. | Measuring Range(mm) |
||||||||||
| IM-880 | 0.01 | 20-35 | 2 | ±20 | 3 or less | 196 | ZS-423 | 20-23 | 70 | 2.5 | 2.5 |
| ZS-424 | 22-25 | 3.5 | |||||||||
| ZS-425 | 24-27 | 4 | |||||||||
| ZS-426 | 26-29 | 4 | |||||||||
| ZS-427 | 28-31 | 4 | |||||||||
| ZS-428 | 30-33 | 4 | |||||||||
| ZS-429 | 32-35 | 4 | |||||||||
| IM-881 | 0.01 | 30-62 | 2 | ±20 | 3 or less | 218 | ZS-408 | 30-38 | 75 | 3 | 2.5 |
| ZS-409 | 36-44 | 4.3 | |||||||||
| ZS-410 | 42-50 | 4.3 | |||||||||
| ZS-411 | 48-56 | 4.3 | |||||||||
| ZS-412 | 54-62 | 4.3 | |||||||||
| IM-882 | 0.01 | 55-153 | 2 | ±20 | 3 or less | 240 | ZS-413 | 55-73 | 90 | 5 | 3.5 |
| ZS-414 | 71-89 | 8.5 | |||||||||
| ZS-415 | 87-105 | 8.5 | |||||||||
| ZS-416 | 103-121 | 8.5 | |||||||||
| ZS-417 | 119-137 | 8.5 | |||||||||
| ZS-418 | 135-153 | 8.5 | |||||||||
Usage Example
Internal Caliper Gauge
|
Internal dimension of deep position can be easily measured. |
Groove diameter of groove for "O" ring can be easily measured. (IM-808,IM-880 etc) |
Measurement evading from screw, nuts etc. can be made. |
 |
 |
 |
