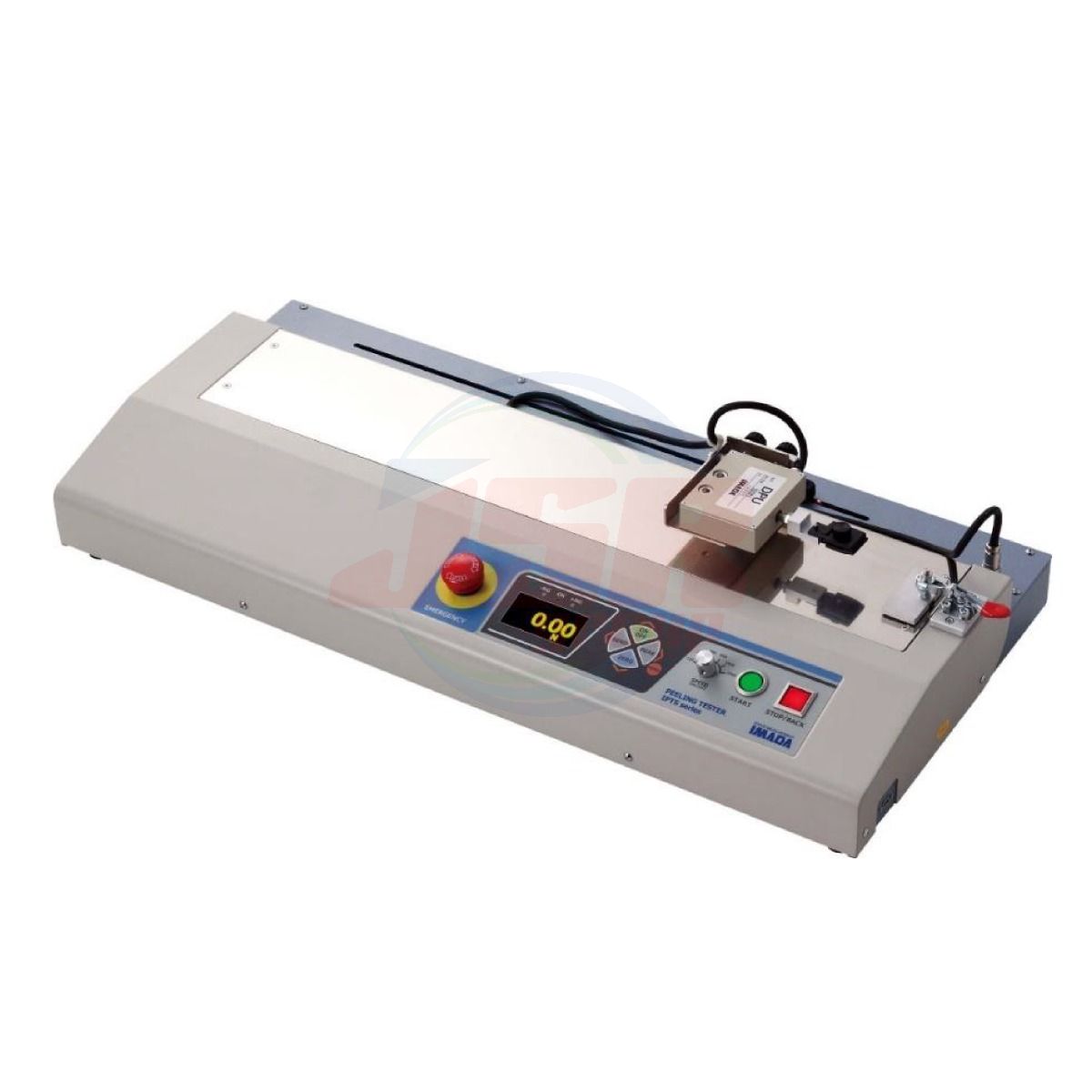

IPTS-Series | High Speed Peeling Tester | IMADA
ราคาต่ำสุด
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
IMA-IPTS-Series
This peeling tester is ideal for peeling film, adhesive tape or thick samples at an angle close to 180 degrees including measuring its peeling strength and adhesive strength. The clamp jig enables one-touch sample fixation, making it suitable for testing thick samples such as copper foil peeling on printed circuit boards. This high-speed peeling tester (maximum peeling speed: 1500mm/min) is also suitable for researching peeling characteristics at variable speeds. Next Series with firmware version 5 or later offers improved measurement stability thanks to low noise, expandability through the addition of functions (firmware download) on the dedicated website (IMADA-Connected.com), and the convenience of downloading various software and instruction manuals. It is possible to measure up to 20N or 50N.
Feature
- Ideal for 180-degree peel test of a wide range of samples such as adhesive tapes or thick samples, etc.
- High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of force
- User-friendly operation with easy sample setup and one-click operation (simply press the START button to start the test and record data)
- Allows accurate analysis capturing small changes with high sampling rate (2000Hz) and visual analysis with graph overlay function (up to 5 graphs) by the supplied graphing software
- Next Series (Firmware Ver.5 or later) equips extended functions such as additional functions and software downloads from IMADA download site
| Model | IPTS-20N | IPTS-50N |
| Capacity | 20N | 20N |
| Resolution | 0.01N | |
| Accuracy | +/-0.2%F.S. +/-1digit | |
| Overload | Approx.150%F.S. (It warns with light flashing and buzzer when the force is over 110% of capacity.) |
|
| Sampling rate | Max.2000 data / sec (2000Hz) | |
| Test speed | 120, 200, 300, 500, 1000, 1500mm/min (Switchable) | |
| Stroke (length) | Travel of load cell: Approx. 400mm (Peel length: Approx.200mm) | |
| Peel angle | 165°-180° (Height and angle are adjustable.) | |
| Max. sample width | Adhesion: 88mm (Grip: 20mm, Clamp: 50mm) | |
| Max. sample thickness | Grip: 3mm / Clamp: 13mm | |
| Safety device | Emergency stop button, Overload stop function (Valid with the power ON) *1 | |
| Power | AC100 to 240V free input *2 | |
| Weight | Approx. 11kg | |
| Operating environment | Temperature: 0 to 40°C Humidity: 20 to 80%RH | |
| Accessories | Force Recorder Standard (graphing software), USB cable, Power cable, Film grip, Spacer block, Inspection certificate, Instruction manual |
|
| แบรนด์สินค้า | IMADA |
|---|
