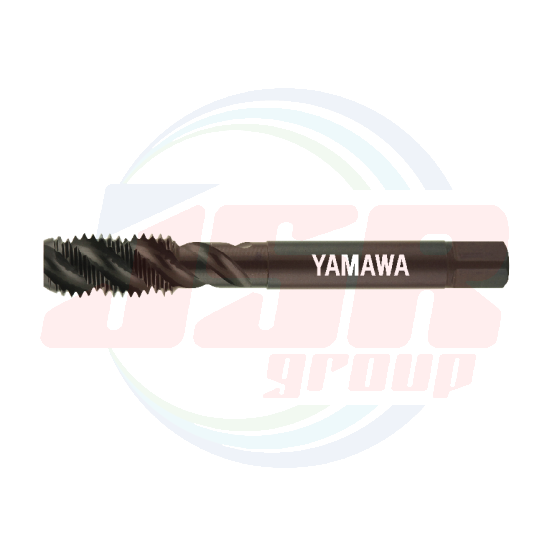

Product Features
● The IPS is for a blind hole and mainly used for low speed machining on a drilling machine.
● Use the IPS for tapping iron products like SPC and SS400 where there are a small quantities of threads.
● The ISP has an ideal oxidation surface treatment for tapping iron materials.
● The ISP is ideal for small quantity tapping components such as prototype non-production parts.
● The ISP has spiral flutes to discharge the chips back out of the hole.
● Please use the ISP for tapping of blind holes.
Chips from a tapped hole.
How to Use
● First create the workpiece bore diameter with a drill that matches the screw thread size minor diameter, and then start the tapping.
● Please use a cutting speed of 5 m/min or less.
● When tapping, please use a cutting oil.
Hand tapping using a tap handle.
Machining with a drilling machine.
【Related Products】

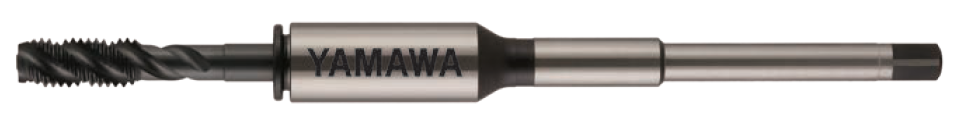

Shank Adjuster
● Use the shank adjuster when tapping into deep holes.
● The I series (IHT / ISP / IPO) can be detached from the shank adjuster with one touch.
• For details on shank adjusters,refer to ⑦-83.
File PDF |
Specification
Tapping Speeds depending on Materials
Blister Pack
Segment:1C

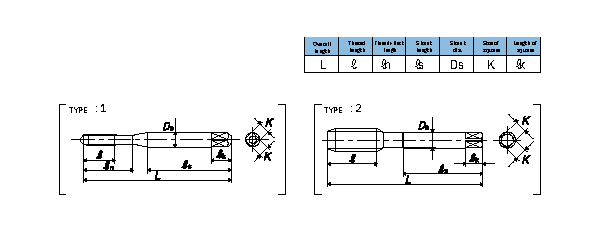

Size | Code | Chamfer | L | ℓ | ℓn | ℓs | Ds | K | ℓk | No.of | TYPE |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | flutes | ||||
For Metric Threads | |||||||||||
M3×0.5 | SI73.0GBP | 2.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 1 |
M4×0.7 | SI74.0IBP | 2.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 1 |
M5×0.8 | SI75.0KBP | 2.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 1 |
M6×1 | SI76.0MBP | 2.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 1 |
M8×1.25 | SI78.0NBP | 2.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 2 |
M10×1.5 | SI7010OBP | 2.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 2 |
แบรนด์สินค้า | YAMAWA |
---|
