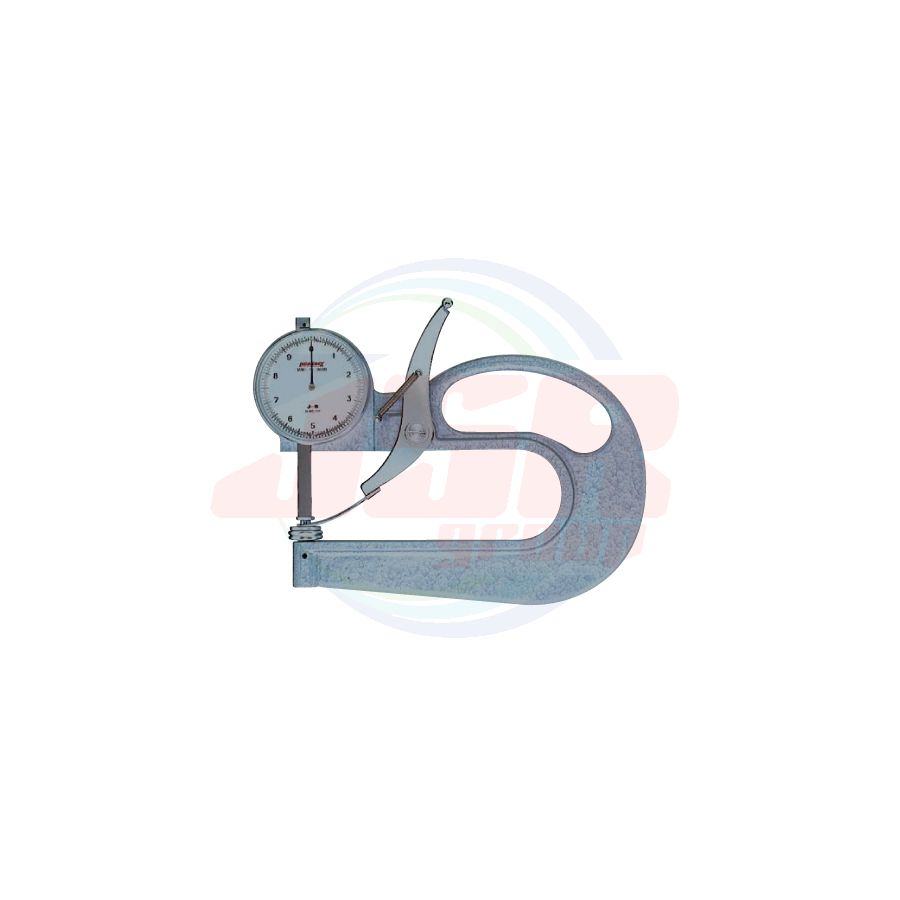

Dial Thickness Gauges (Large type)
These large thickness gauges having extended throat depth to measure at the center of wide sheets.
Specifications
| Order No. | Graduation (mm) |
Range (mm) |
Throat depth (mm) |
Accuracy (μm) |
Contact Point | Measuring force less than (N) | |
| Dia (mm) | Parallelism (μm) | ||||||
| J-A | 0.01 | 0～20 | 150 | ±22 | 10 | 5 | 2.0 |
| J-B | 0.05 | 0～35 | 140 | ±100 | 20 | 25 | 3.0 |
| แบรนด์สินค้า | PEACOCK |
|---|---|
| Order No. | J-B |
| Graduation | 0.05mm |
| Range | 0~35mm |
