JO-C-CDS | Joint- Low Helix Carbide Center Drills-Type A 60° | YAMAWA

ราคาต่ำสุด THB 0.00 ราคาปรกติ THB 2,903.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
JO-C-CDS
QTY:
0

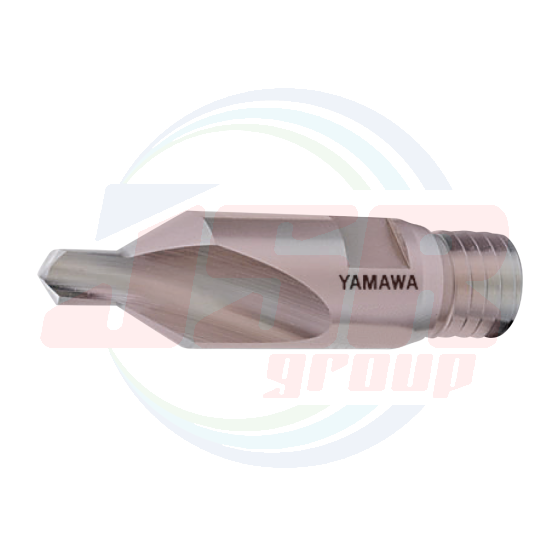

● The JO-C-CDS is a carbide type A center hole drill joint tool suitable for hard materials and mass production processing.

JO-C-CDS | Joint- Low Helix Carbide Center Drills-Type A 60° | YAMAWA
JO-C-CDS | Joint- Low Helix Carbide Center Drills-Type A 60° | YAMAWA

Specification

Cutting Speed depending on Materials



                                                                                                                   25〜35HRC                   35〜45HRC



Segment:5C

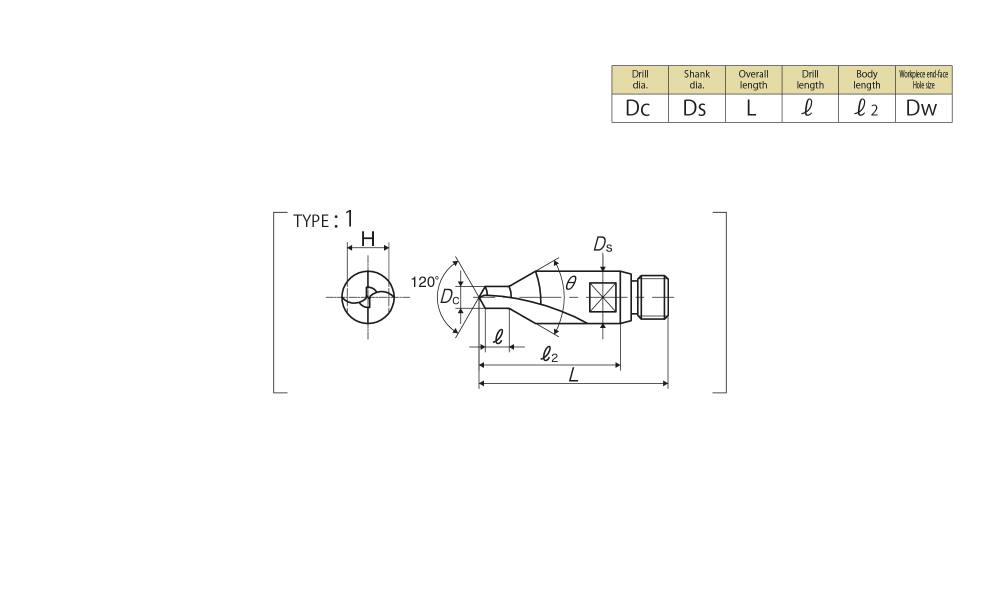

Size

Dc × θ

Code

Dc

(mm)

Ds

(mm)

L

(mm)

ℓ

(mm)

ℓ2

(mm)

H

(mm)

Adaptable holder Shank dia.

Dw

(mm)

TYPE

4×60°

JCCY4.0

4

10

37.5

4.5

27.5

8

14

8.5

1

5×60°

JCCY5.0

5

12

43.5

5.5

32.5

10

16

10

1

6×60°

JCCY6.0

6

16

48.5

6.5

34.5

13

20

13.5

1

・Machining conditions are calculated based on the workpiece end-face hole size Dw.

・For details on machining conditions, see TECHNICAL INFORMATION, “27. Table of recommend centering condition.”

ข้อมูลเพิ่มเติม
แบรนด์สินค้า YAMAWA
