● The JO-CDS(II) is a old JIS type 2 center hole drill joint tool suitable for relatively hard materials.
Specification
Cutting Speed depending on Materials
Segment：5C
|

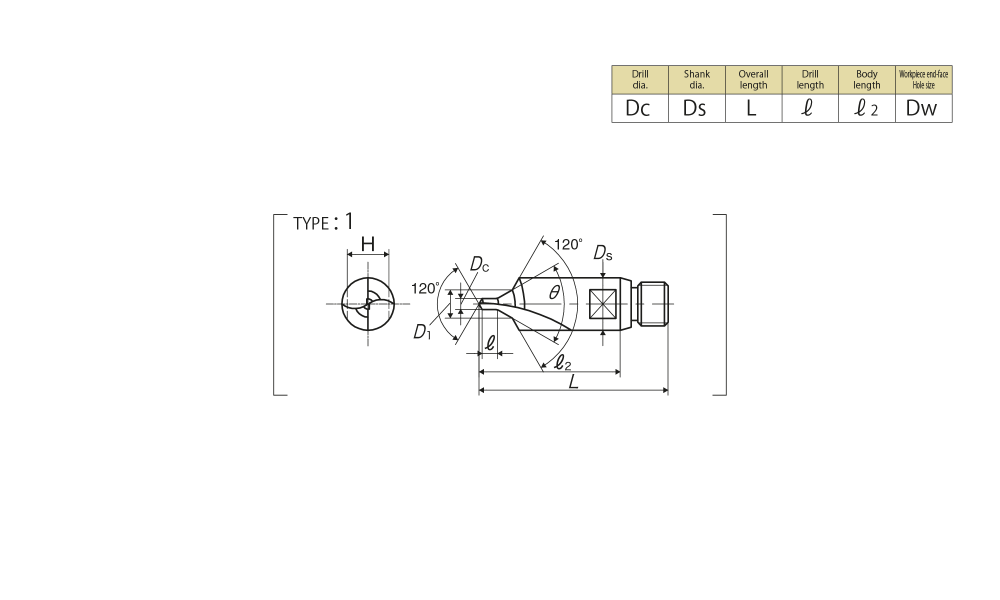

Size Dc × θ |
Code |
Dc (mm) |
Ds (mm) |
D1 (mm) |
L (mm) |
ℓ (mm) |
ℓ2 (mm) |
H (mm) |
Adaptable holder Shank dia. |
Dw (mm) |
TYPE |
|
2×60° |
JC22.0 |
2 |
10 |
5 |
37.5 |
3 |
27.5 |
8 |
14 |
8 |
1 |
|
2.5×60° |
JC22.5 |
2.5 |
12 |
6.5 |
43.5 |
3.5 |
32.5 |
10 |
16 |
10 |
1 |
|
3×60° |
JC23.0 |
3 |
16 |
8 |
48.5 |
4 |
34.5 |
13 |
20 |
12 |
1 |
・Machining conditions are calculated based on the workpiece end-face hole size Dw.
・For details on machining conditions, see TECHNICAL INFORMATION, “27. Table of recommend centering condition.”
